Summary of Contents for Simrad PI DEPTH

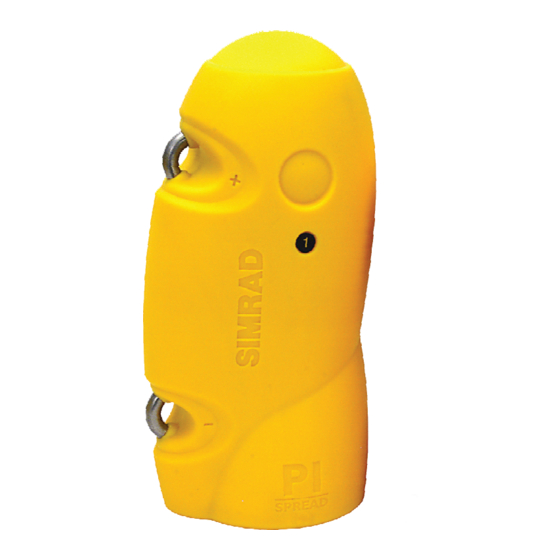

- Page 1 Instruction manual Simrad PI Spread/Depth Dual sensor for depth and spread measurements (CD012200O) www.simrad.com T E C H N O L O G Y F O R S U S T A I N A B L E F I S H E R I E S...
- Page 3 Simrad PI Spread/Depth Instruction manual This document gives you the necessary information for mounting, charging and maintaining the PI Spread/Depth sensor. It also explains how to set up the PI44 and PI54 catch monitoring systems to receive and display the information provided by the sensor.
- Page 4 If you require maintenance on your Simrad equipment, contact your local dealer. You can also contact Simrad using the following address:simrad.support@simrad.com. If you need other information about this product, or any other Simrad products, visit www.simrad.com. On our web site you will also find a list of our dealers and distributors.
-
Page 5: Table Of Contents
Spread marker line ..................18 CHARGING AND MAINTENANCE ........20 PI Spread/Depth maintenance ................20 PI Spread/Depth charging..................21 How to use the Simrad PI Charger .................22 Daily operation ................... 22 Indicators ....................23 Automatic configuration................24 How to use the Simrad PI MaxiCharger..............25 Daily operation ................... - Page 6 Simrad PI Spread/Depth 315549/A...
-
Page 7: Introduction
Introduction INTRODUCTION Efficient fishery with trawl and purse seine assumes professional and adequate instrumentation on the gear. Simrad has provided professional instruments for fish finding for more than sixty years. This user manual described installation, use and maintenance of the PI Spread/Depth sensor when put to use with the PI catch monitoring systems. -
Page 8: Main Parts Identification
Simrad PI Spread/Depth Note Each Spread/Depth sensor can be configured to communicate with one of two Remote sensors; Remote 1 or Remote 2. Label the Spread/Depth sensor accordingly, and ensure that you only use the sensors in the correct pairs. -
Page 9: Information On The Sensor Label
Introduction Information on the sensor label The sensor label provides the following information. Figure 3 The PI Spread/Depth sensor label (CD012200N) (A) Channel identification. You must write down the channel currently used by the sensor to communicate with the PI system. The red background colour on the label is chosen to remind you that the sensor is mounted on the port trawl door. -
Page 10: Installation
flow out when the trawl doors are pulled up from the water. Adapter installation The installation of the sensor adapter is described in the dedicated instruction manual provided with the adapter. The document can also be downloaded from www.simrad.com. 315549/A... -
Page 11: Installation Principles
Installation Installation principles Observe the installation principles in the illustration. Figure 4 Installation principles (CD012200K) (A) The PI Spread/Depth sensor is mounted in a special adapter on the port door. (B) The Remote (or Remote/Depth) sensor is mounted in a special adapter on the starboard door. -
Page 12: Configuration
Status • We recommend that you set the Sensor filter to Light. Configuration of the PI32 The PI Spread/Depth sensor can not be used on the Simrad PI32 system. Configuration of the PI44 and PI54 This procedure explains how to set up the PI44 and PI54 catch monitoring systems to access the information provided by the PI Spread/Depth sensor. - Page 13 Configuration Note In order to set up the PI44 and PI54 systems, your PI operator unit must be provided with software version 0.47 or later. We recommend that you use the form at the beginning of the PI44 or PI54 Operator manual to write down the sensors you have and their respective communication channels and update rates.
-
Page 14: Adding A Remote/Depth Sensor
Simrad PI Spread/Depth To reset the unit, set all six sensors to default sensor type None. Choose the sensor you wish to use for the PI Spread/Depth sensor; 1 to 6. Define the sensor type (by default None) to Dual. -
Page 15: About Sensor Configuration
All sensors are provided with default communication channels and update rates. Refer to the table in section About sensor configuration on page 13. About sensor configuration All sensors are provided from Simrad with predefined communication channels and update rates. 315549/A... -
Page 16: Default Communication Channels And Update Rates
Simrad PI Spread/Depth Default communication channels and update rates See the table below for the initial values for the communication channels and update rates for the various sensors. Table 1 Default communication channels and update rates Sensor Com.channel(s) Update rate... -
Page 17: Changing The Update Rate
• A high update rate will give you frequent information updates, but the battery will run out faster. All sensors are provided from Simrad with a default update rate setting. In some cases you may find that this update rate does not suit your operational needs. -
Page 18: Display Presentations
Simrad PI Spread/Depth DISPLAY PRESENTATIONS The information provided by the PI Spread/Depth sensor is shown on the PI catch monitoring system’s colour display. Two presentations are available: • Numerical presentation • Graphical presentation with or without echogram Numerical presentation The numerical presentation of the PI Spread/Depth data is automatically shown in the relevant display modes. -
Page 19: Graphical Presentation On Pi44 And Pi54
Display presentations depth is increasing or decreasing, this is shown with two arrows and the variation in meters per minute. You can also see the depth and distance changes as a function of time in a graphical presentation. When the readings are stable, the digits are shown in black colour. -
Page 20: Spread Marker Line
Simrad PI Spread/Depth Ensure that you have a graphical presentation active on your PI system. Press the button to open the menu. Graphic setup Press the button repeatedly to reach the GAIN+ Marker line dialogue. Observe the list of sensors that appear. Only those sensors that can provide a marker line are listed. - Page 21 Display presentations Ensure that you have a graphical presentation active on your PI system. Press the button to open the menu. Graphic setup Press the button repeatedly to reach the GAIN+ Marker line dialogue. Observe the list of sensors that appear. Only those sensors that can provide a marker line are listed.
-
Page 22: Charging And Maintenance
Insert the screw, mount firmly, but not too hard. Use maximum torque 1.5 NM A pack with ten screws and a tube of can be Aqua Shield ordered from Simrad as a spare parts kit. is manufactured by D.A.Stuart, Warrenville, Aqua Shield Illinois, USA. Visit www.d-a-stuart.com. -
Page 23: Pi Spread/Depth Charging
The PI Spread/Depth sensor must be charged between operation. The battery lifetime depends on the update rate you have chosen. Note To charge the PI Spread/Depth sensor, use the Simrad PI Charger or the Simrad PI MaxiCharger. Table 2 Battery lifetime for the PI Spread/Depth sensor... -
Page 24: How To Use The Simrad Pi Charger
Simrad PI Spread/Depth How to use the Simrad PI Charger The Simrad PI Charger is an intelligent battery charger for fast and secure charging of the PI sensors. The charger will automatically set up the correct charging current depending on the sensor type and the battery temperature. -
Page 25: Indicators
Charging and maintenance • This may be ropes, wires, chains or other items that obstruct or short circuit the electrical connections. When the charger is connected to the sensor, check the charger lamps. • Once connected, the charger will identify whether the sensor connected can be fast charged or not. -
Page 26: Automatic Configuration
WARNING Charging a sensor at sub zero temperature might develop explosive gases representing a potential danger. Simrad assumes no liability for improper charging, or the use of other chargers than those approved by us. Automatic configuration The charger communicates with the sensor at regular intervals. -
Page 27: How To Use The Simrad Pi Maxicharger
Charging and maintenance How to use the Simrad PI MaxiCharger The Simrad PI MaxiCharger is a plain battery charger to be used with large PI sensors. Figure 10 Simrad PI MaxiCharger Caution The Simrad PI MaxiCharger must only be used to charge the large PI sensors: PI Spread, PI Spread/Depth, PI Remote/Depth, PI Height and PI SeineSounder. -
Page 28: Indicators
Trickle charging is now active. You can safely allow trickle charging for long periods of time. Indicators The Simrad PI MaxiCharger is only equipped with a single indicator lamp, this lamp will however change colour to show the status of the charging process. - Page 29 Index Maintenance, 20 Marker line Applications, 5 depth, 17 spread, 18 Charging, 20–21 Communication Numerical channel presentation, 16 default values, 14 why change?, 14 Configuration, 10 PI32, 10 Parts PI44, 10 identification, 6 PI54, 10 PI Charger Remote/Depth, 12 use, 22 sensor, 13 PI MaxiCharger use, 25...
- Page 32 ISBN-10: 82-8066-094-1 ISBN-13: 978-82-8066-094-7 © 2007 Kongsberg Maritime AS Simrad Kongsberg Maritime AS Telephone: +47 33 03 40 00 Strandpromenaden 50 Telefax: +47 33 04 29 87 P.O.Box 111 www.simrad.com N-3191 Horten, Norway simrad.sales@simrad.com...
