322482/B

Responder, main parts identification

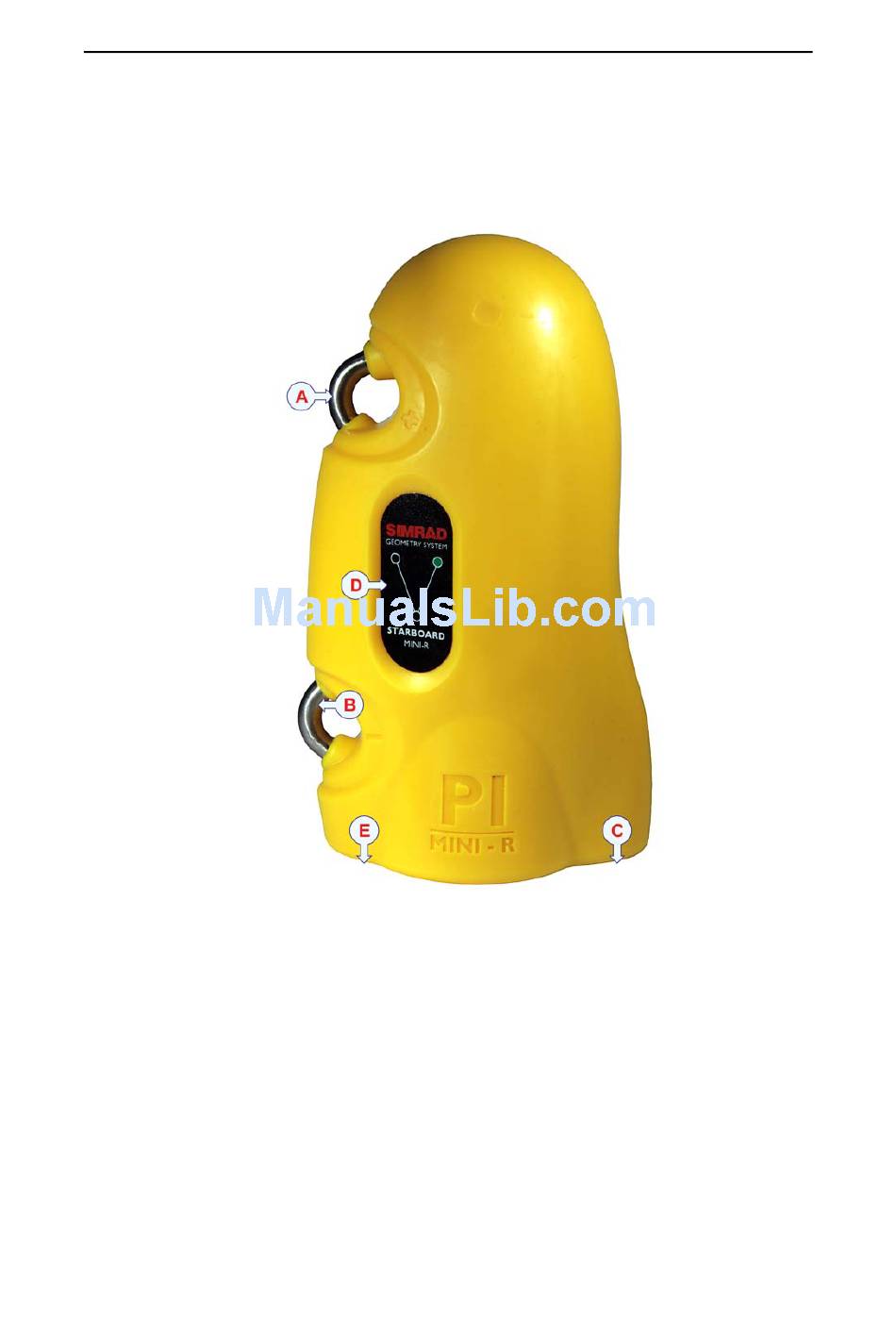

Figure 4 PI Mini-R responder, main parts identification
Negative charging and fastening lug.
A
B
Positive charging and fastening lug.
C
Communication link to the PI Geometry sensor
Responder identification (port or starboard)
D
Location of water switch and sensor identification label.
E
Introduction
9
