Hillsdale Furniture MORRIS 1545-500 Manual

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to
insure that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference.
Adult assembly is required. Customer Service Phone Number: 502-562-0000
PARTS LIST
(1) Headboard Panel
A
(1) Footboard Panel
B
(2) Leg Extensions
C
HARDWARE LIST
(4) Long Allen Bolts
E
(4) Short Allen Bolts
F
(8) Metal Washers
G
(8) Spring Washers
H
(4) Hex Nuts
K
(1) Allen Wrench
L

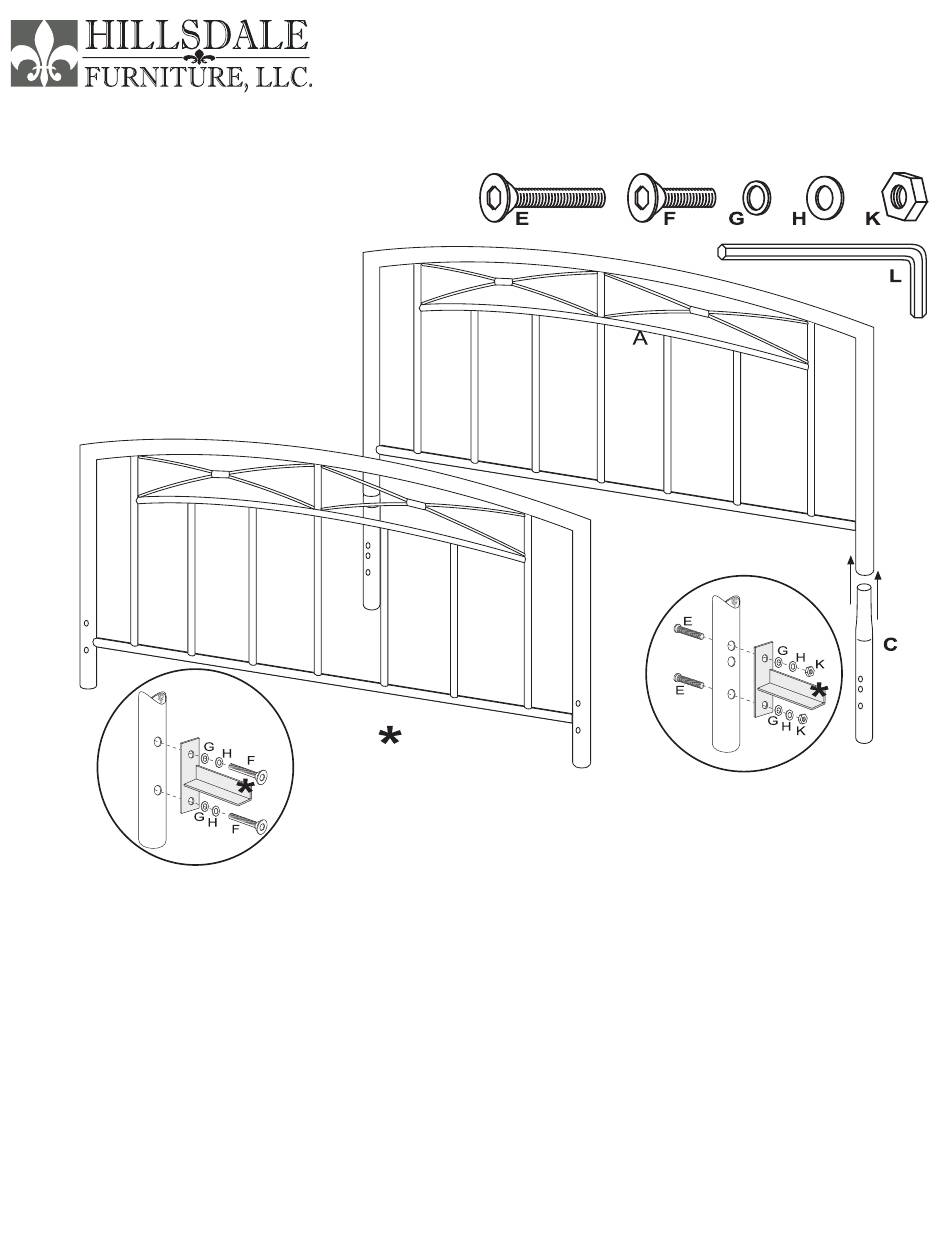

Figure 3
STEP 1
Insert both Leg Extensions (C) into bottom of Headboard Grill (A). See Figure 1.
STEP 2
Attach Bed Frame (*Not Included) to each Leg Extension (C) using 2 Long Allen Bolts (E) from the
back side, 2 Metal Washers (G), 2 Spring Washers (H) & 2 Hex Nuts (K) per each post & leg extension.
See Figure 2. Tighten all bolts only using Allen Wrench (L) that has been provided.
STEP 3
Attach Bed Frame (*Not Included) to each post on Footboard Grill (B) using 2 Short Allen Bolts (F) from
the back side, 2 Spring Washers (H) & 2 Metal Washers (G) per each post. See Figure 3. Tighten all
bolts only using Allen Wrench (L) that has been provided. Assembly is now complete.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for
polishing, as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
MORRIS METAL BED SET
Model # 1545-500 Queen Size
Model # 1545-460 Full Size
Figure 1
B
BED FRAME
NOT IN
INCLUDED
Date: 09-16-09
Figure 2
