Hillsdale Furniture 1638-672-682 Assembly Manual

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly
is required. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (6) Spring Washers
B (6) Washers
C (6) Wood Screws
D (2) Feet
E (3) Support Legs
F (11) Short Allen Bolts
G (6) Medium Allen Bolts
H (2) Long Allen Bolts
I (3) Adjustable Feet
J (1) Allen Wrench
O (1) Hex Wrench
P (4) Nuts

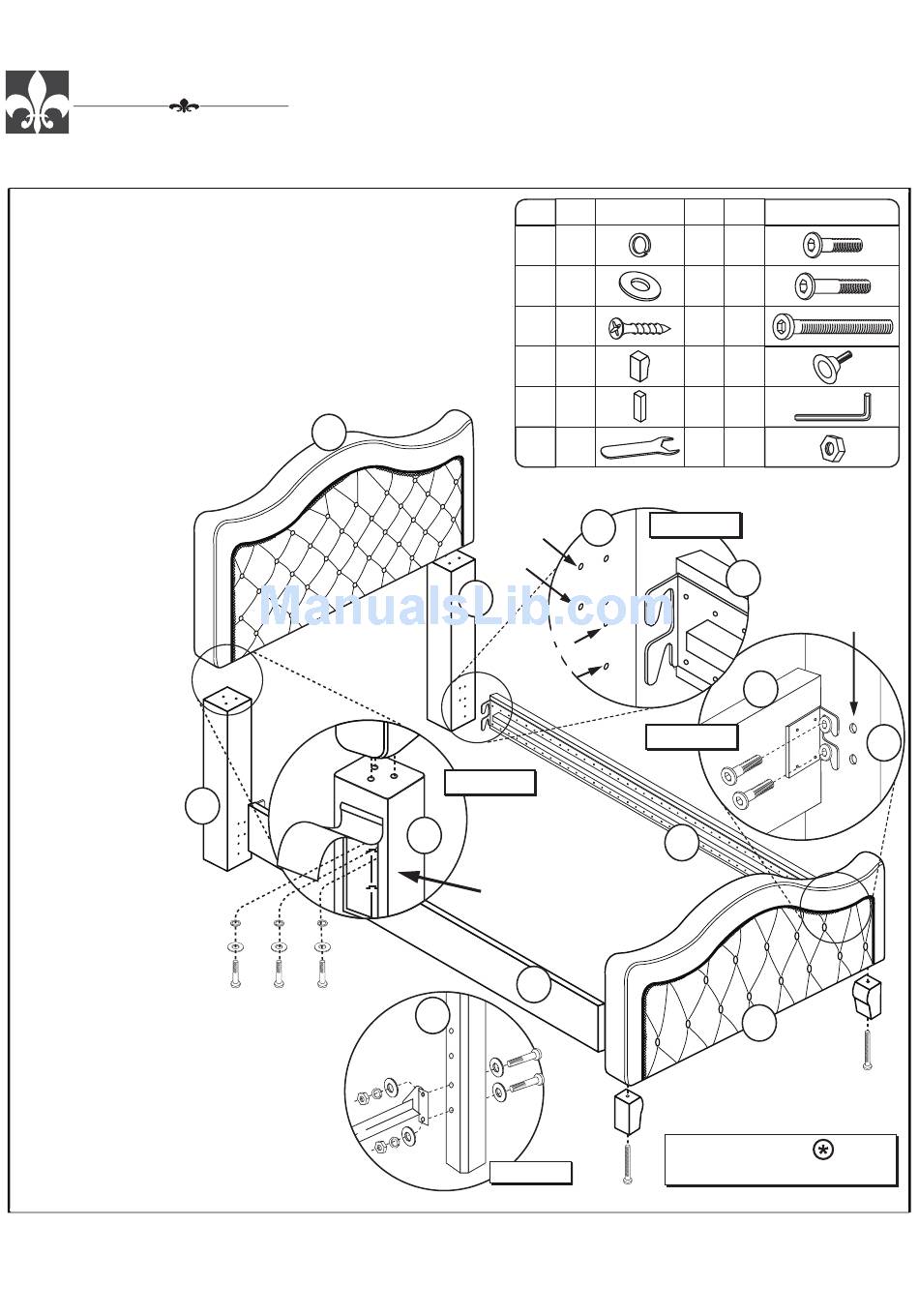

STEP 1

A t t a c h t h e
Headboard (K) to the
Headboard Legs (N)
using 3 Medium Allen
Bolts (G), 3 Washers
(B) & 3 Spring
Washers (A) from
behind for each leg.
See Figure 1.

STEP 2

Attach the Feet (D) to
the Footboard Panel
(L) with 2 Long Allen
Bolts (H).

STEP 3

Attach the Side Rails
(M) to the Headboard
Legs using 2 Long
Allen Bolts (H) and 2
Flat Washers (B) on
the outside and 2 Flat
Washers (B), 2
Spring Washers (A)
and 2 Hex Nuts (P) on the inside. See
Figures 2 and 3.
Step 4
Assemble the remaining ends of the
Side Rails (M) to the Footboard Panel
(L) by repeating the instructions from
Step 2. Next tighten all bolts from
steps 2 and 3. See Figure 4.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
Model #1638-672-682/1566-672-682/1554-672-682

PARTS LIST

K (1) Headboard Panel
L (1) Footboard Panel
M (2) Side Rails
N (2) Headboard Legs
K
N
A A A
B B B B B B
G G G G G G
N N
* *
TRIESTE QUEEN BED
PART
A
B
C
D
E
O
Holes for
Cal-King
N
Holes Holes
Metal Metal
Frame Frame
FIGURE 1
N
Back
of Leg
M
N
B B F F
B B
A A
F F
B B
B B
N N A A
FIGURE 2
QTY HARDWARE PART
6 F
6 G
6 H
2 I
3 J
1 P
N FIGURE 3
E E
for for
E E
FIGURE 4
M
D
The Bed Frame
H
included. Sold Separately.
Date: 03-15-2011
Page 1 of 2
QTY HARDWARE
11
3
2
3
1
4
M
Holes for
Cal-King
M
L
D
L
H
is not
