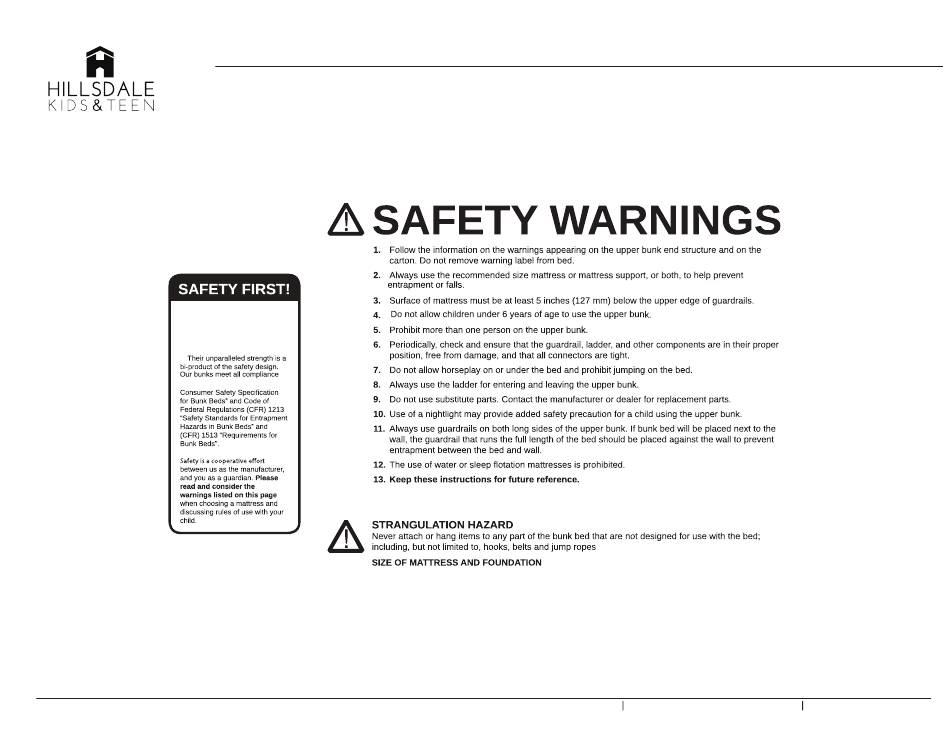

Assembly Instructions
FULL LOWER BED / FULL LOFT BED - HIGHLANDS
Item No. 10080N, 11080N, 12080N
Our Bunkbeds were designed
and manufactured with your child's
satefy as our top priority.
with ASTM F 1427-13 "Standard
14. Use only mattress which is 74-75 inches long and 52 ½-53 ½ inches wide on full upper bunk and
52 ½-53 ½ inches wide on full lower bunk.
Use only mattress and foundation combined which is is 74-75 inches long and 52 ½-53 ½ inches wide on full
upper bunk and 52 ½-53 ½ inches wide on full lower bunk. Ensure thickness of mattress and foundation
combined does not exceed 8 inches and the mattress is at least 5 inches below upper edge of guardrails.
Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com
Page 1 of 16

Advertisement

loading
Need help?

Need help?

Do you have a question about the 10080N and is the answer not in the manual?

Questions and answers

Related Manuals for Hillsdale Furniture 10080N

Summary of Contents for Hillsdale Furniture 10080N

  • Page 1 52 ½-53 ½ inches wide on full lower bunk. Ensure thickness of mattress and foundation combined does not exceed 8 inches and the mattress is at least 5 inches below upper edge of guardrails. Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 2 Number which is located on the Production Tracking Sticker. This sticker can be found on the bottom, inside or back of your product. Steps 1-11 Full Loft Bed *Locate all hardware and parts prior to discarding any packaging. Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...

  • Page 3: Parts List

    Bed Fitting Center Plastic Wheel Other Tools Required Plastic Wheel Lock (Not Included) · Phillips Screwdriver Footboard · Flathead Screwdriver Headboard HARDWARE FOR FULL LOWER BED Set of Slats Rails Crossbar Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 4 · Phillips Screwdriver Ø4x15mm Wood Screws Right Rail · Flathead Screwdriver Allen Lower Panel Ø8x40mm Wood Dowels Bed Fitting Center Rear Guard Rail Upper Panel Desk Ladder Front Guard Rail Crossbar Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 5 Attach Plastic Wheel (K) to Headboard (1). attach Bed Fitting Center (I) to Fooboard (2) by using Then attach Bed Fitting Center (I) to Headboard (1) Ø4x20mm Wood Screws (D). by using Ø4x20mm Wood Screws (D). Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 6 FULL LOWER BED - Assembly Instructions Page 6 of 16 STEP 2A Attach Bed Rails (3) to Headboard (1) and Footboard (2) by using Ø8-23x30mm Bolts(A), then fullly tighten by Allen Key(H). Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 7 Attach Crossbar (5) to Set of Slats (4). Using Ø6-28x30 mm Bolts (B) then fully tighten by Allen Key(H). STEP 4A Attach Set of Slats (4) pack to Bed Rails (3) Using Ø4x30mm Wood Screws (C). x 26 Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 8 Page 8 of 16 STEP 1 Assemble Lower Panel (12) into Left Side Frame (7) and Right Side Frame (8). Using Ø6-28x30 mm Bolts (F). Then fullly tighten by using Allen Key (L). Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 9 Page 9 of 16 STEP 2 Assemble Left Side Frame (7) and Right Side Frame (8) into 6 Drawer Chest (3). Using Ø6-49x55 mm Bolts (D). Then fully tighten by Allen Key (L). Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 10 Put the Upper Panel (13) on the top, ensure 4 holes side on the front. Attach Footboard (2) on the front of Upper Panel. Using Ø6-28x30 mm Bolts (F)at middle and Ø6-49x55 mm Bolts (D) at both side. Then fullly tighten by Allen Key (L). Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 11 Allen Key (L). to Headboard (1) and Footboard (2) by using Ø6-75x100mm Bolts (A), Ø6x15mm Barrel Nuts (B) and Ø8x40mm Wood Dowels (M). Then fullly tighten by using Allen Key (L). Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 12 (C) and Ø6x15mm Barrel Nuts (B). Follow these additional steps if you purchased a desk Then fullly tighten by using Allen Key (L). if you did not skip to step 8. Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 13 Footboard (2) by using Ø4x20mm Wood Screws (I) and (G). Using Ø6-28x30 mm Bolts (F) then fully tighten using Allen fullly tighten by Screwdriver. Then attach Crossbar (15) on Key (L). Bed Fitting Center (N) Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...
  • Page 14 (H). Attach Guard Rails (10),(11) to Rail (5) by using Ø4x15 mm Wood Screws (K) * Note: Before attaching Front Guard Rail, decide which side of the bunk you would like the ladder on. Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...

  • Page 15: Care Instructions

    • Plastic or foam footed items such as phones or clocks can damage this 10. Always monitor your child’s ac�vity when in finish, use trivets under such items. the nursery. Hillsdale Furniture 3901 Bishop Lane, Louisville, KY 40218 www.hillsdalefurniture.com...

  • Page 16: Limited 1-Year Warranty

    Your Hillsdale Furniture furniture requires some routine maintenance. Please take care to treat your Hillsdale Furniture like the fine product it is. Proper care and use are essential to preserving your rights under this warranty.
