HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to
insure that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference.
Adult assembly is required. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
(8) Allen Bolts 1 /
A
(2) Allen Bolts 1 /
B
(2) Flat Washers
C
(28) Slat Caps
D
(1) Allen Wrench
E
STEP 1
Begin assembly by
attaching the Back Panel
(J) to the back of each Side
Panel (K) by aligning the
holes and securing with 1
Allen Bolt (B) & 1 Flat
Washer (C) from the
backside per each end. Do
not fully tighten bolts for
this step.
STEP 2
Next attach the Rear Rail
(M) to the back of each
Side Panel (K) by aligning
the holes and securing with
2 Allen Bolts (A) per each
end. Do not fully tighten
D
M
K
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for
polishing, as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
PARTS LIST
" (1) Back Panel
J
x 30mm
4
" (2) Side Panels
K
x 50mm
4
1 / " (1) Front Rail
L
4
(1) Rear Rail
M
1 / " (14) Bentwood Slats
N
4
K
N
J
M
N
*
Trundle Sold Separately
Model #1519-030A Trundle Panel

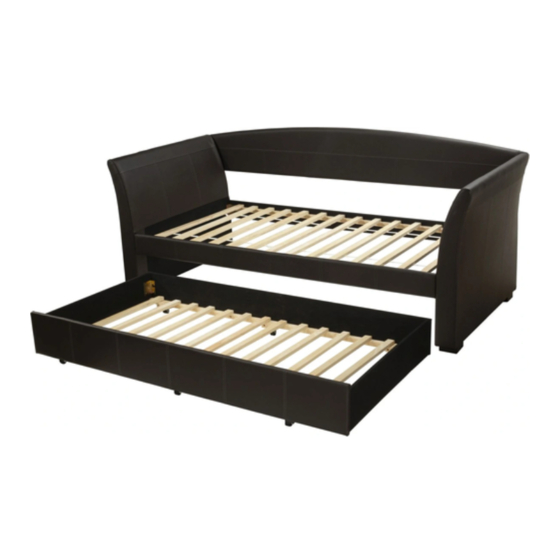

MONTGOMERY DAYBED
Model #1560-010A Side Panels
Model #1560-020A Back Panel
A
A
A
A
L
A
H
N
K
L
B C
D
B
C
J
M
K
STEP 3
Attach the Front Rail (L) to the
inside of each Side Rail in the
front by aligning the holes and
securing with 2 Allen Bolts (A)
per each end. Tighten all bolts
from Steps 1 through 3 using
the Allen Wrench (E) that has
been provided.
STEP 4
Insert the Plastic Cap (D) to
both ends of each Bentwood
Slat (N) and install the slats
onto the Front and Back Rails
(L & M) by pushing into place
on the Plastic Cap into the
holes on the Front and Rear
Rails (L & M). The assembly
is now complete.
12/03/10
E
C
B
