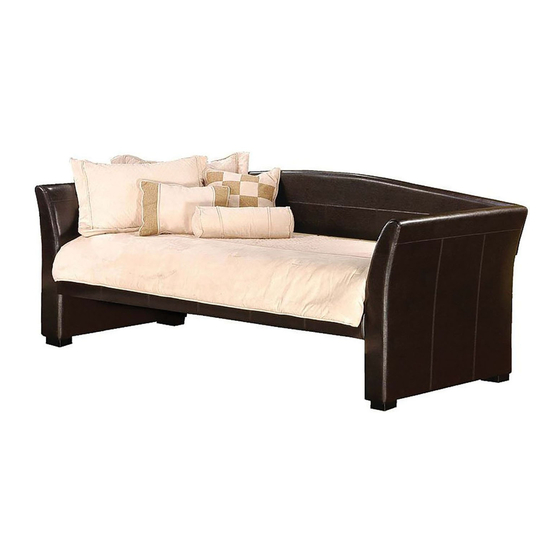

Hillsdale Furniture MONTGOMERY DAYBED 1560-010R Assembly Instruction

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
Allen Bolts
A (8) 1
Allen Bolts
B (2) 1
C (10) Flat Washers
Spring Washers
D (8)
Slat Caps
E (28)
Allen Wrench
F (1)
PARTS LIST
Back Panel
G (1)
Side Panels
H (2)
Front Rail
I (1)
Rear Rail
J (1)
K (14) Bentwood Slats

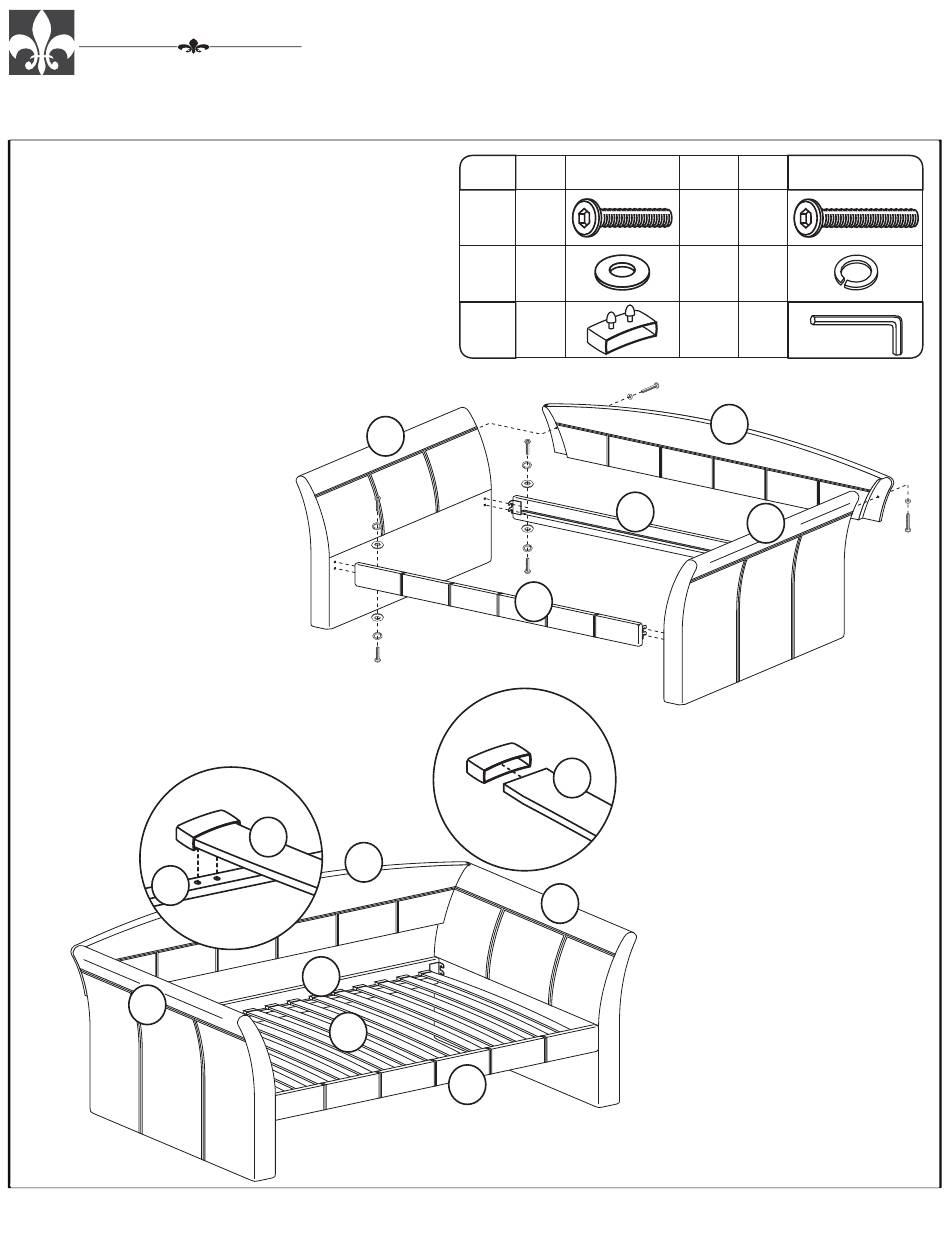

STEP 1
Begin assembly by attaching the
Back Panel (G) to the back of each
Side Panel (H) by aligning the
holes and securing with 1
Allen Bolt (B) & 1 Flat Washer
(C) from the backside per
each end. Do not fully tighten
bolts for this step.
STEP 2
Next attach the Rear Rail (J)
to the back of each Side
Panel (H) by aligning the
holes and securing with 2
Allen Bolts (A), 2 Spring
Washers (D) and 2 Flat
Washers (C) per each end.
Do not fully tighten
bolts for this
step.
E
J
H
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
/ "
x 30mm
4
/ "
x 50mm
4
1 / "
4
1 / "
4
1 / "
4
C
D
A
K
G
J
K
* Trundle Sold Separately
Model #1519-030R Trundle Panel
MONTGOMERY DAYBED
Model #1560-010R Side Panels
Model #1560-020R Back Panel
PART QTY
A 8
C 10
E 28
H
A
C
D
A
D
D
C
A
I
C
E
H
I
HARDWARE PART
B
D
F
B
C
G
J
STEP 3
Attach the Front Rail (I) to the
K
inside of each Side Rail in the
front by aligning the holes and
securing with 2 Allen Bolts
(A), 2 Spring Washers (D) and
2 Flat Washers (C) per each
end. Tighten all bolts from
Steps 1 through 3 using the
Allen Wrench (F) that has
been provided.
STEP 4
Insert the Plastic Cap (E) to
both ends of each Bentwood
Slat (K) and install the slats
onto the Front and Rear Rails
(I & J) by pushing into place
on the Plastic Cap into the
holes on the Front and Rear
Rails (I & J). The assembly is
now complete.
06/10/11
Page 1 of 2
QTY HARDWARE
2
8
1
C
B
H
