HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (14) Allen Bolts /
1
4
B (4) Allen Bolts 1 /
4
C (8) Spring Washers
D (12) Flat Washers
E (6) Hex Nuts 1 / ”
4
F (1) Hex Wrench
G (1) Allen Wrench
A
C
D
D
C
A

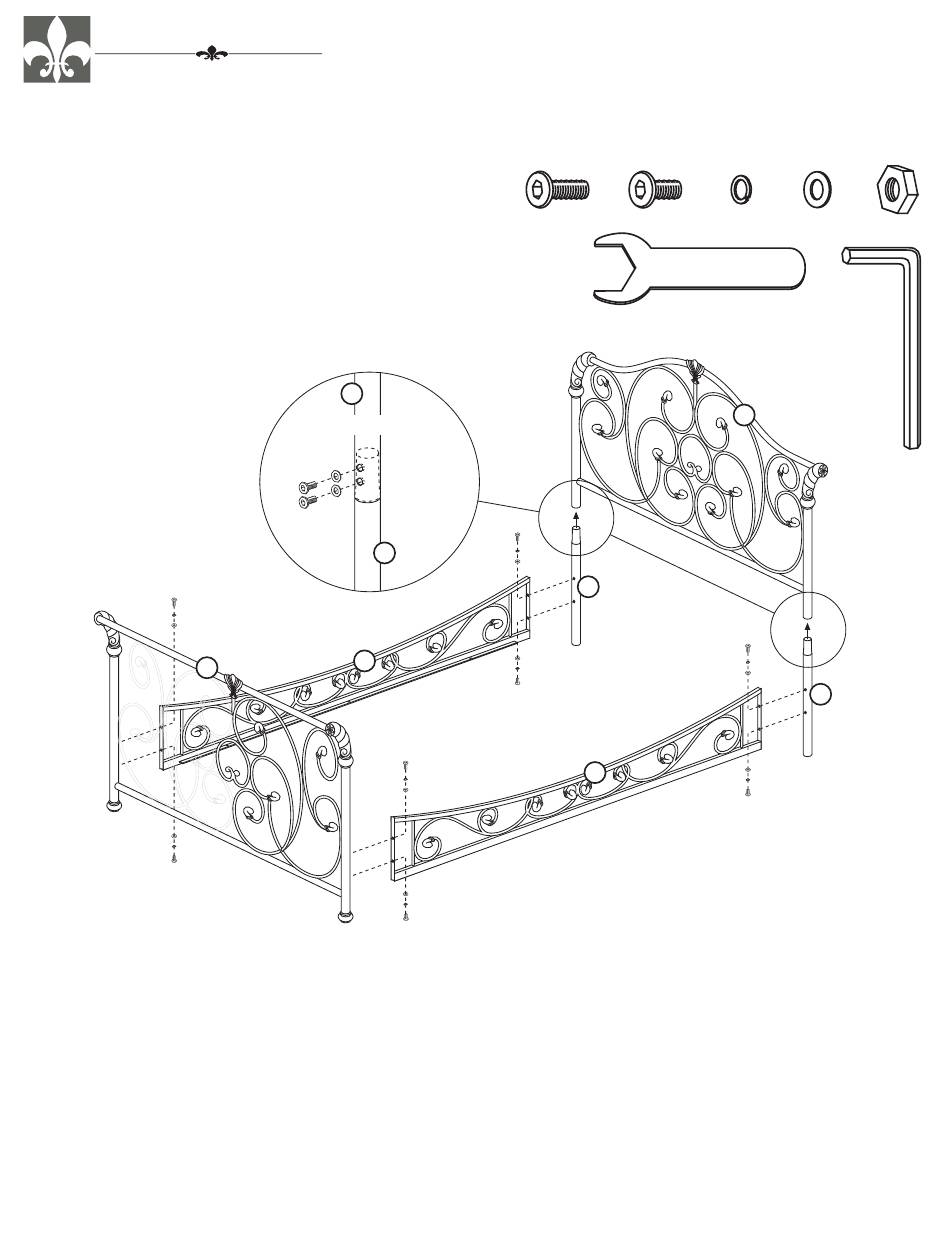

STEP 1

Begin assembly by attaching each Leg Extension (K) into the bottom of each post on the Headboard
Panel (J) by tapping in place with a rubber mallet if needed. Once in place, secure each Leg Extension
(K) from the back with 2 Allen Bolts (B) & 2 Flat Washers (D) as shown in Figure 1.

STEP 2

Attach each Side Rail (M) to the front of each Leg Extension (K) by aligning holes and securing with
2 Allen Bolts (A), 2 Spring Washers (C) & 2 Flat Washers (D) per each side. Tighten all bolts using
the Allen Wrench (G) that has been provided.

STEP 3

Also attach each Side Rail (M) to the inside of each post on the Footboard Panel (L) by aligning holes
and securing with 2 Allen Bolts (A), 2 Spring Washers (C) & 2 Flat Washers (D) per each side. Tighten
all bolts. See next page for Steps 4 & 5.
PARTS LIST
” ” J (1) Headboard Panel
1
x
” x 3 / ” K (2) Leg Extensions
4
1 / ” L (1) Footboard Panel
4
/ ” / ” M (2) Side Rails
1 x 5
4 8
N (2) Double Leg Support Rails
1 / ” P (1) Single Leg Support Rail
4
/ ”
1
4
FIGURE 1
J
View from backside
D
B
B D
M
L

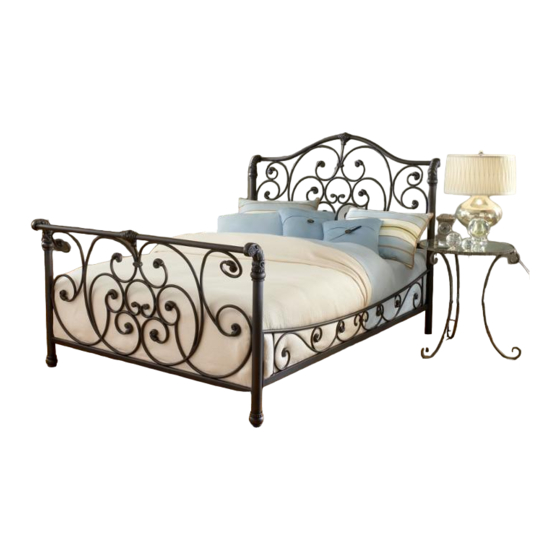

MANDALAY BED SET
Model #1579-500 Queen Bed Set
Model #1579-550 Queen Rails
A
A
K C
D
D
C
A
A
C
D
D
C
A
B C
F
J
K
A
C
D
D
M
C
A
08/18/10
Page 1 of 2
D E
G
K
