Assembly Instructions

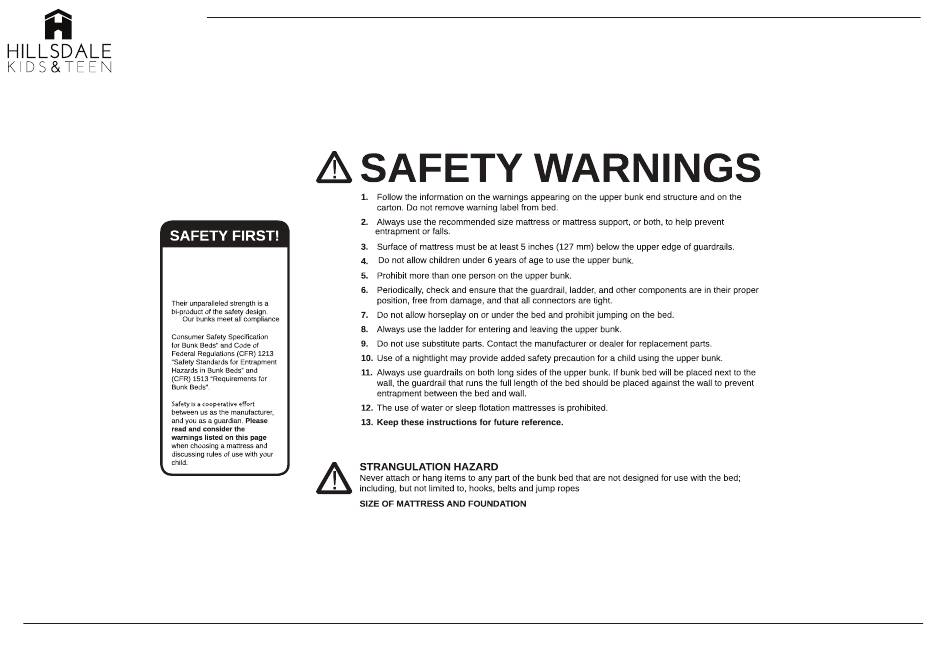

FULL LOWER BED / TWIN LOFT BED - HIGHLANDS
Item No. 10070N, 11070N, 12070N
Our Bunkbeds were designed
and manufactured with your child's
satefy as our top priority.
with ASTM F 1427-13 "Standard
14. Use only mattress which is 74-75 inches long and 37 ½ -38 ½ inches wide on twin upper
bunk and 52 ½-53 ½ inches wide on full lower bunk.
Use only mattress and foundation combined which is 74-75 inches long and 37 ½ -38 ½ inches wide on
twin upper bunk and 52 ½-53 ½ inches wide on full lower bunk. Ensure thickness of mattress and
foundation combined does not exceed 8 inches and the mattress is at least 5 inches below upper edge
of guardrails.
Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com
Page 1 of 16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hillsdale Furniture HIGHLANDS 10070N
Summary of Contents for Hillsdale Furniture HIGHLANDS 10070N
- Page 1 52 ½-53 ½ inches wide on full lower bunk. Ensure thickness of mattress and foundation combined does not exceed 8 inches and the mattress is at least 5 inches below upper edge of guardrails. Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 2 Production Tracking Sticke r . This sticker can be found on the bottom, inside or back of your product. Steps 1-11 Twin Loft Bed *Locate all hardware and parts prior to discarding any packaging. Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
-
Page 3: Parts List
Bed Fitting Center s Plastic W heel s Other Tools Required Plastic W heel Locks (Not Included) · Phillips Screwdriver Footboard · Flathead Screwdriver Headboard Set of Slats Rails Crossbar Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com... - Page 4 Allen Key Other Tools Required Ø10x40mm Wood Dowels (Not Included) · Phillips Screwdriver Right Rail · Flathead Screwdriver Lower Panel Rear Guard Rail Upper Panel Desk Ladder Front Guard Rail Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 5 Then attach Bed Fitting C e nter (I) to Fooboard (2) attach Bed F itting C C enter (I) to Headboard (1) by using Ø4x20mm Wood Screws (D). by using Ø4x20mm Wood Screws (D). Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 6 Attach B ed R ails (3) to Headboard (1) and Footboard (2) by using Ø 8-23 x 3 0mm B olts (A), then fully tighten by Allen Key (H). Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 7 Using Ø6 -28 x30 mm Bolts (B) then fully tighten by Allen Key (H). STEP 4A Attach Set of Slats (4) to Bed Rails (5) by u sing Ø4x30 mm Wood Screws (C). x 26 Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 8 Assemble Lower P anel (12) into Left S ide F rame (7) and Right S ide F rame (8). Using Ø6 -28 x30 mm Bolts (D).Then fully tighten by Allen Key (H). Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 9 Left S ide F rame (7) and Right S ide F rame (8) into 4 D rawer C hest (3). Using Ø6 -28 x30 mm Bolts (D). Then fully tighten by by Allen Key (H). Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 10 Footboard (2) on the front of Upper Panel (13). Using (2) Ø6-28x30 mm Bolts (D)at middle and (2) Ø6-46x50 mm Bolts (C) at both side. Then fully tighten by using Allen Key (H). Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 11 Headboard (1) and Footboard (2) by using Ø6-75x100mm Bolts (C).Then fully tighten by Allen Key (H). (A) , Ø6x15 mm Barrel Nuts (B) and Ø10x40mm Wood Dowels (K K ). Then fullly tighten by Allen Key (H). Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 12 8. * Note: Before attaching F ront G uard R ail, decide which side of the bunk you would like the ladder on. Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 13 Ø6-28x30mm Bolt (D) then fullly tighten by Allen Key (H) andØ4x25mm Wood Screws (F). * Note: Before attaching Front Guard Rail, decide which side of the bunk you would like the ladder on. Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
- Page 14 Attach the Ladder (9) to Bed Rails (5) by using Ø3.5x15mm Wood Screws (G). Attach Set of Slats (6) to Bed Rails (5L) (5R) by using Ø4x30mm Wood Screws (E). Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com...
-
Page 15: Care Instructions
• Plastic or foam footed items such as phones or clocks can damage this 10. Always monitor your child’s activity when in finish, use trivets under such items. the nursery. Hillsdale Furniture | 3901 Bishop Lane. Louisville, KY 40218 | www.hillsdalefurniture.com... -
Page 16: Warranty Limitations
Hillsdale Furniture warrants to the consumer, who makes the original purchase of Hillsdale Furniture products, a 1-year warranty against defects in the material or workmanship of furniture components. Hillsdale Furniture will repair or replace any piece of furniture, which is defective in materials or workmanship. As used in this warranty, “defects” are defined as meaning imperfections in components, which substantially impair the usability of the product.
