T-Rex 20121 Manual

20121
2014 Chevrolet
Silverado 1500
TOOLS REQUIRED:
10mm Wrench or Socket
Flat Head Screwdriver
Power Drill
3/16" Drill Bit
Ratchet & Extensions
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE INSTALLATION. Auto makers offer varied models
to each vehicle and occasionally manufacture more than one body style of the same model. To assure your part is correct;
our tech department can be contacted at tech@trexbillet.com to verify fitment or assist with tech questions. All other inquires
can be directed to info@trexbillet.com. In the event you do not have internet access please call 1-800-287-5900.

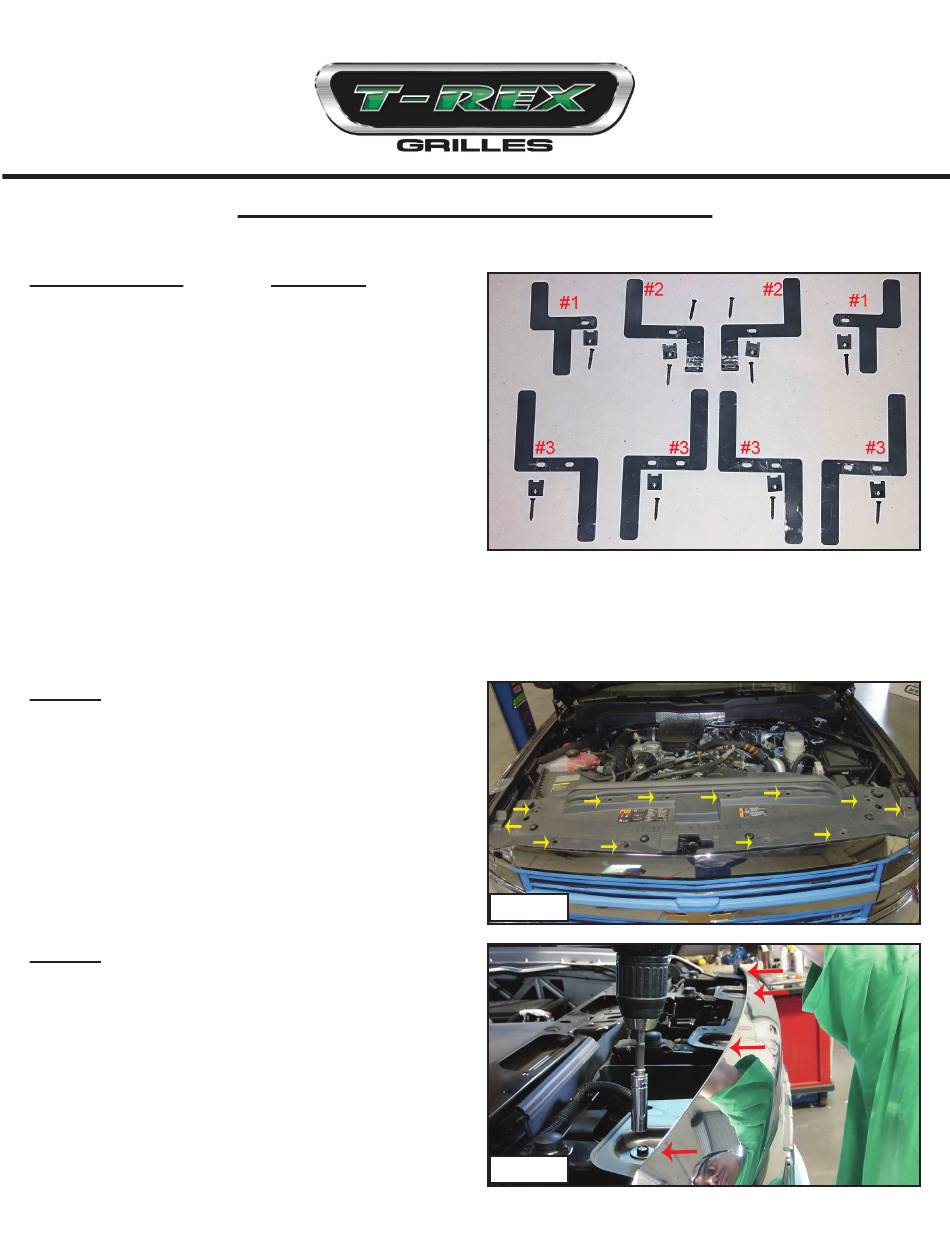

Step 1
Open hood and remove the 12 plastic push clips
securing the plastic radiator shroud to the radiator
core. Carefully use a flat head screwdriver to release
the clip up, you can now remove the clips. Once all
clips have been removed the plastic radiator shroud
can be removed. (Fig 1)
Step 2
Remove the four 10mm upper bolts securing the
factory grille shell to the radiator support. (Fig 2)
2014 Chevrolet Silverado 1500
Billet Grille Replacement 2pc
PARTS LIST
(2) Top side brackets (#1)
(2) Top center brackets (# 2)
(4) Bottom Brackets (#3)
(10) #8 (6 head) screw
(8) #8 U-nuts
Continued on page 2
2014 Chevrolet
Silverado 1500
Fig 1
Fig 2
20121
page 1
