Speakman SB-2111 Instructions

Instructions for Models:
SB-2111
SB- 2111 -E
SB- 2111 -LD
Need Help?
For additional assistance or service call:
SPEAKMAN Company
400 Anchor Mill Road
New Castle, DE 19720
PHONE: 800-537-2107
EMAIL: customerservice@speakman.com
WEB: www.speakman.com
92-SB-2111-R3
What You Need T o Know:
T ools:
Required:
* Adjustable * Groove Joint * Philips
Wrench Pliers Screwdriver
*Thread Seal Tape
Helpful:
*Supply Lines *Basin Wrench *Pipe Wrench
*Hacksaw *Tubing Cutter *Utility Knife
*Eye Protection
Important Notes:
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This faucet has
an operating range of 20-80 psi.
Safety Tips:
Cover your drain to prevent loss of parts.
Be sure to wear eye protection while cutting pipe.
Maintenance:
Your new Lavatory Faucet is designed for years
of trouble-free performance. Keep it looking new
by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh
chemicals as these will dull the finish and void
your warranty.

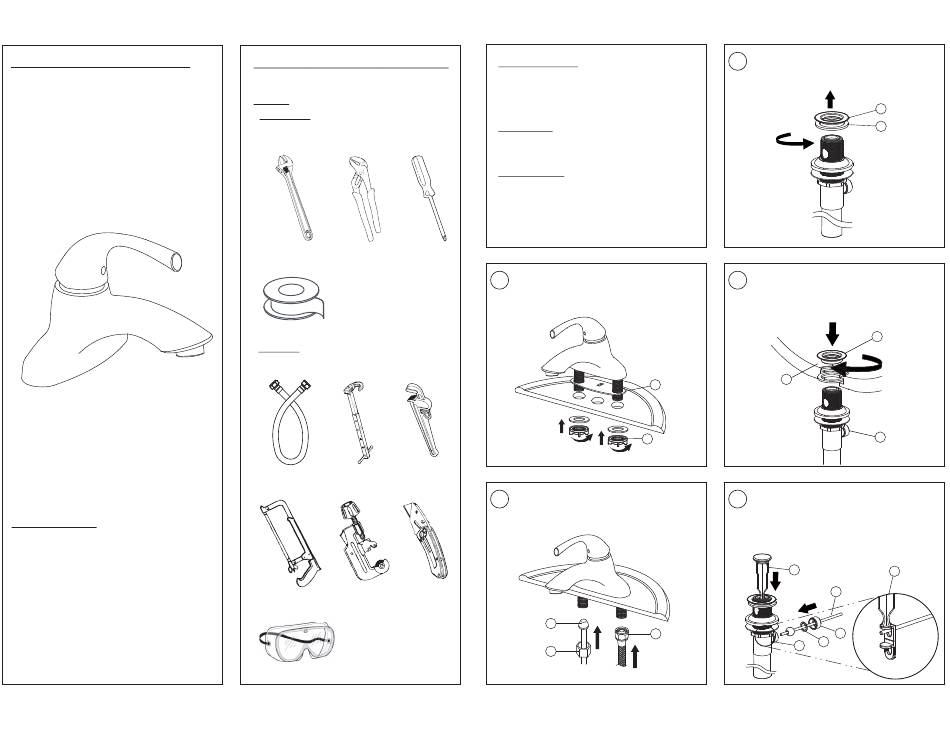

Shut off water supplies.Remove old faucet.Place
1
gasket (1) on bottom of new faucet.Place faucet
through mounting holes in sink.Secure faucet to
sink using mounting nuts (2) and washers provided.
1
2
Make connections to water lines.Use 1/2" IPS
2
faucet connections (1), or use 3/8" O.D. ball
nose risers (2) with coupling nuts (3).Use wrenches
to tighten connections.Take care to not overtighten.
2
1
3
If installing SB-2111-LD, skip to Step 9. Remove
3
flange (1) and rubber washer (2) from POP-UP d
rain assembly.
1
2
Place the rubber washer (2) to underside of the
4
flange (1). Insert the threaded end of the drain
body up through the drain hole and attach flange to
the body with the pivot hole (3) pointing to the rear
of the sink.
1
2
3
Unscrew the nut (1) from the pop-up body.
5
NOTE:Retain the seal (2) on the pivot rod (3).
Place the nut onto the pivot rod insert the rod and
seal (2) into the pivot hole (4) .Install stopper (5) as
shown (6) .Slide nut (1) on and hand tighten.
(Please do not overtighten).
5
6
3
1
2
4
