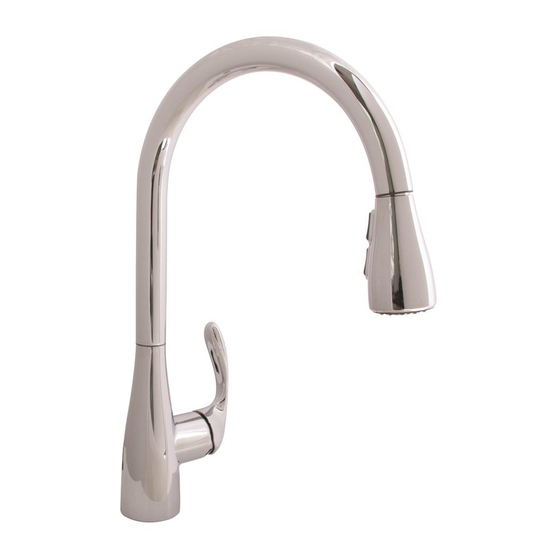

Speakman SB-2141 Instructions

INSTRUCTIONS FOR MODELS
SB-2141
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-SB-2141-02
5
Position the screws to the front and back. Tighten
the screws with Phillips Screwdriver.
FRONT
BACK
9
Turn OFF water supplies. Connect the spray
hose to the outlet hose. This is a push to connect
connection. Make sure to push the hose
completely into the outlet fitting.
TOOLS AND SUPPLIES
Phillips Adjustable 5 Gallon
Screwdriver Wrench Bucket
HELPFUL TOOLS & SUPPLIES:
11mm Safety Plumber's
Wrench Glasses Putty

IMPORTANT

• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
• This faucet has an operating range of 20-80 psi.

SAFETY TIPS

Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.

MAINTENANCE

Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives may damage the finish and
void the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.

WARRANTY

Warranty information can be found at:
www.speakman.com
6
Make connections to water supplies. The inlet
threads of the faucet are 9/16"-24 UNF and
will accept a 3/8" Compression Fitting.
Wrench Tighten.
Accepts a 3/8"
Compression
Fitting
SUPPLY STOPS NOT INCLUDED
10
Use the provided screws to install the weight
onto the sprayhead hose. Position the weight
above the bottom of the hose loop. Check for
smooth operation.
1
Place the Base Flange (1) and the Washer (1)
over hoses and align to base of Faucet.
NOTE: For single hole sink only.
3
Partially thread the screws as shown on the
Mounting Nut.
7
If water supply is 1/2" Compression, use the
provided adapter and 1/2" IPS faucet
Connections (not supplied) ❶ or use the supplied
coupling nuts ❸ with 3/8" O.D. ball nose risers
(not supplied) ❷. Use wrenches to tighten
connections. Do not over-tighten.
INLET SUPPLIES NOT INCLUDED
11
Turn ON water supplies and check for leaks.
2
Place Hoses, one at a time, thru hole in
mounting surface. Lower Faucet into position.
4
From below, install Rubber Washer (1), Metal
Washer (2), and secure with Mounting Nut (3).
Align Faucet to desired position and hand
tighten Mounting Nut (3).
8
Place the spray hose (exiting from base of
faucet) into a bucket. Turn ON water supplies.
Flush both HOT and COLD water for 1 minute
into the bucket.
