Speakman SB-2542 Installation Instructions

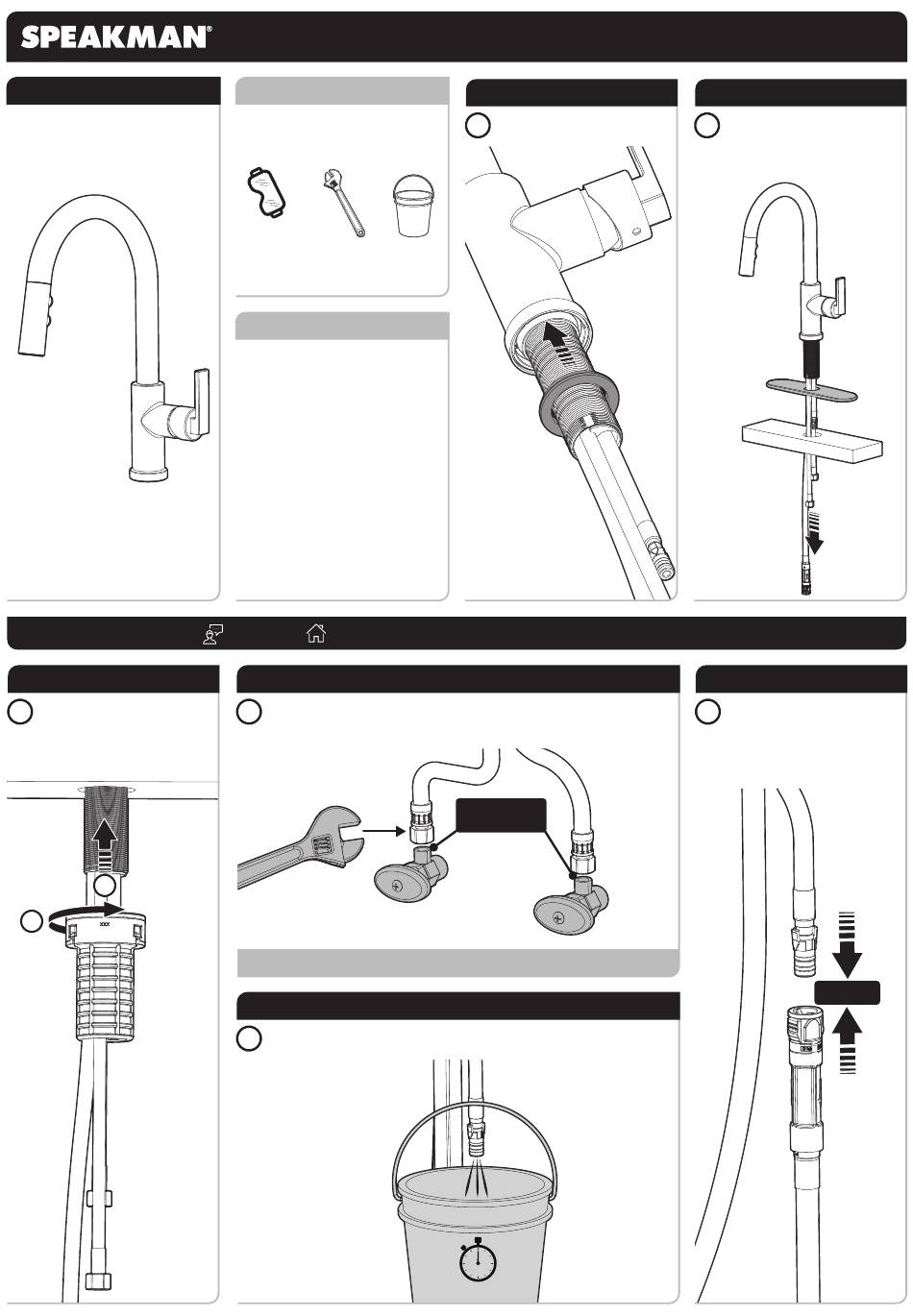

INSTALLATION INSTRUCTIONS
SB-2542
Pull Down Kitchen Faucet
NEED HELP?
For additional assistance or service please contact:
INSTALL EASY MOUNT NUT
Slide Easy Mount Nut over the Hoses and
3
upwards over the Threaded Shank until it
makes contact with the mounting surface
(A). Press upward firmly on the Easy
Mount Nut, then rotate by hand to final
tighten into position (B).
A
B
TOOLS & SUPPLIES NEEDED
Eye Adjustable 5 Gallon
Protection Wrench
IMPORTANT
SAFETY TIPS:
Be sure to read and understand all instructions
before beginning installation.
Inspect all connections after installation.
Cover the drain to avoid loss of parts.
Be sure to wear proper eye protection.
Do NOT over tighten any connections or damage
may occur.
Shut OFF water supplies before beginning
installation.
Observe all local plumbing and building codes.
This Faucet has an operating range of 20-80 psi.
FINISH MAINTENANCE:
Keep the surface finish looking new by cleaning
it periodically with a soft cloth. Avoid abrasive
cleaners, steel wool, and harsh chemicals as
these will dull the finish and void your warranty.
www.speakman.com
800-537-2107
MAKE CONNECTIONS TO WATER SUPPLIES
Make connections to water supplies. The inlet threads of the Faucet Hoses are 9/16"-24 UNF and
4
will accept 3/8" Compression connections.
NOTE: SUPPLY STOPS NOT INCLUDED
Place Spray Hose (exiting from base of faucet) into a bucket. Turn ON water supplies. Flush both
5
HOT and COLD water for 1 minute into the bucket.
CHECK FOR BASE GASKET
Verify that the Rubber Washer is properly
1
seated into the base of the Faucet.
Bucket
9/16"-24 UNF
3/8" Compression
FLUSH SYSTEM
1 Minute
PLACE INTO POSITION
Place Hoses (one at a time) through the
2
hole in the mounting surface. Lower
Faucet into position. If installing optional
Deck Plate, place Hoses through the Deck
Plate first.
92-SB-2542-01
CONNECT HOSES
Turn OFF water supplies. Connect the
6
Spray Hose to the Outlet Hose. Align the
tabs as shown below. This is a "push to
connect" connection. Make sure to push
the connection together tightly and verify
proper connection.
"CLICK"
