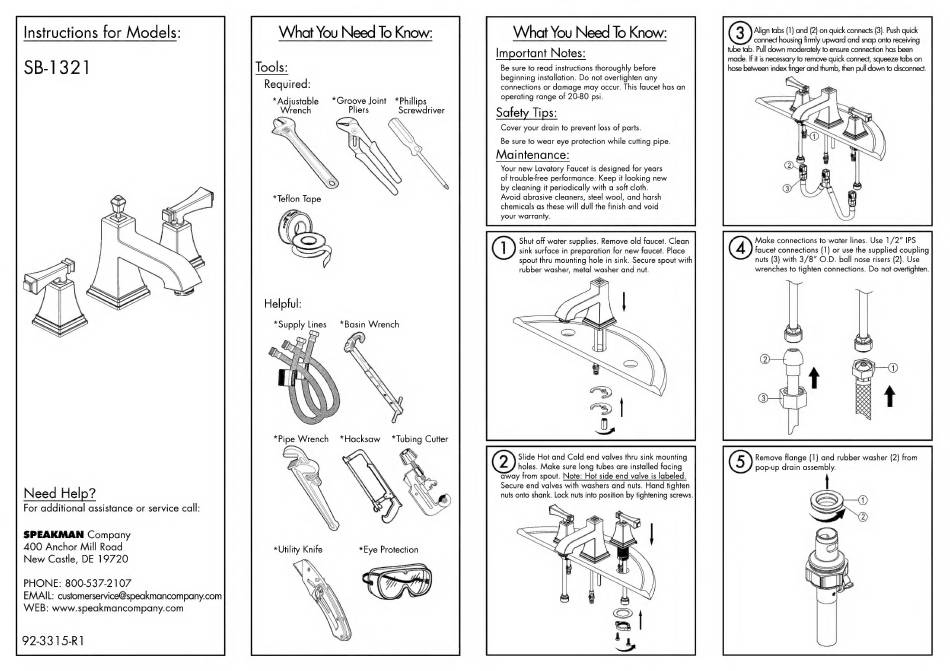

Speakman SB-1321 Instructions

Instructions for Models:
SB-1321
Need Help?
For additional assistance or service call:
SPEAKMAN Company
400 Anchor Mill Road
New Castle, DE 19720
PHONE: 800-537-2107
EMAIL: customerservice@speakmancompany.com
WEB: www.speakmancompany.com
92-3315-R]
What You Need To Know:
Tools:
Required:
rench
Bevo eta
*Teflon Tape
Helpful:
* Supply Lines
her
*Utility Knife
*Groove Joint *Phillips
Pliers Screwdriver
*Basin Wrench
What You Need To Know:
Important Notes:
Be sure to read instructions thoroughly before
beginning installation. Do not overtighten any
connections or damage may occur. This faucet has an
operating range of 20-80 psi.
Safety Tips:
Cover your drain to prevent loss of parts.
Be sure to wear eye protection while cutting pipe.
Maintenance:
Your new Lavatory Faucet is designed for years
of trouble-free performance. Keep it looking new
by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh
chemicals as these will dull the finish and void
your warranty.
Shut off water supplies. Remove old faucet. Clean
sink surface in preparation for new faucet. Place
spout thru mounting hole in sink. Secure spout with
rubber washer, metal washer and nut.
Slide Hot and Cold end valves thru sink mounting
holes. Make sure long tubes are installed facing
away from spout. Note: Hot side end valve is labeled.
Secure end valves with washers and nuts. Hand tighten
nuts onto shank. Lock nuts into position by tightening screws.
Align tabs (1) and (2) on quick connects (3). Push quick
connect housing firmly upward and snap onto receiving
tube tab. Pull down moderately to ensure connection has been
made. If it is necessary to remove quick connect, squeeze tabs on
hose between index finger and thumb, then pull down to disconnect.
Make connections to water lines. Use 1/2" IPS
faucet connections (1) or use the supplied coupling
nuts (3) with 3/8" O.D. ball nose risers (2). Use
wrenches to tighten connections. Do not overtighten.
ORS 2ed
SOS SRR
eM
aS
Ko OOOO
K? D
aie
5S
1%
KX
K
Remove flange (1) and rubber washer (2) from
pop-up drain assembly.
