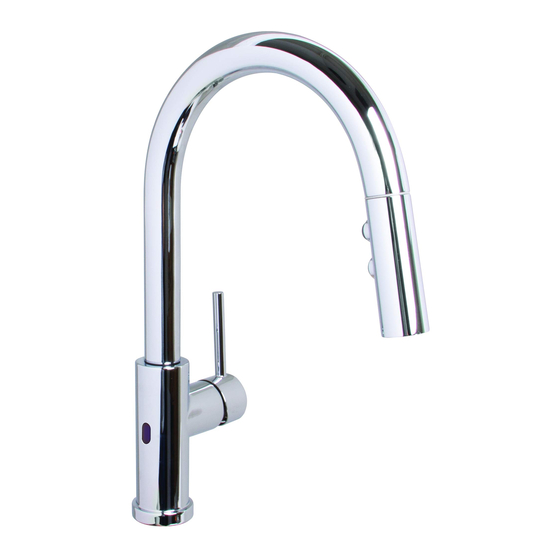

Sensor kitchen faucet

Advertisement

Quick Links

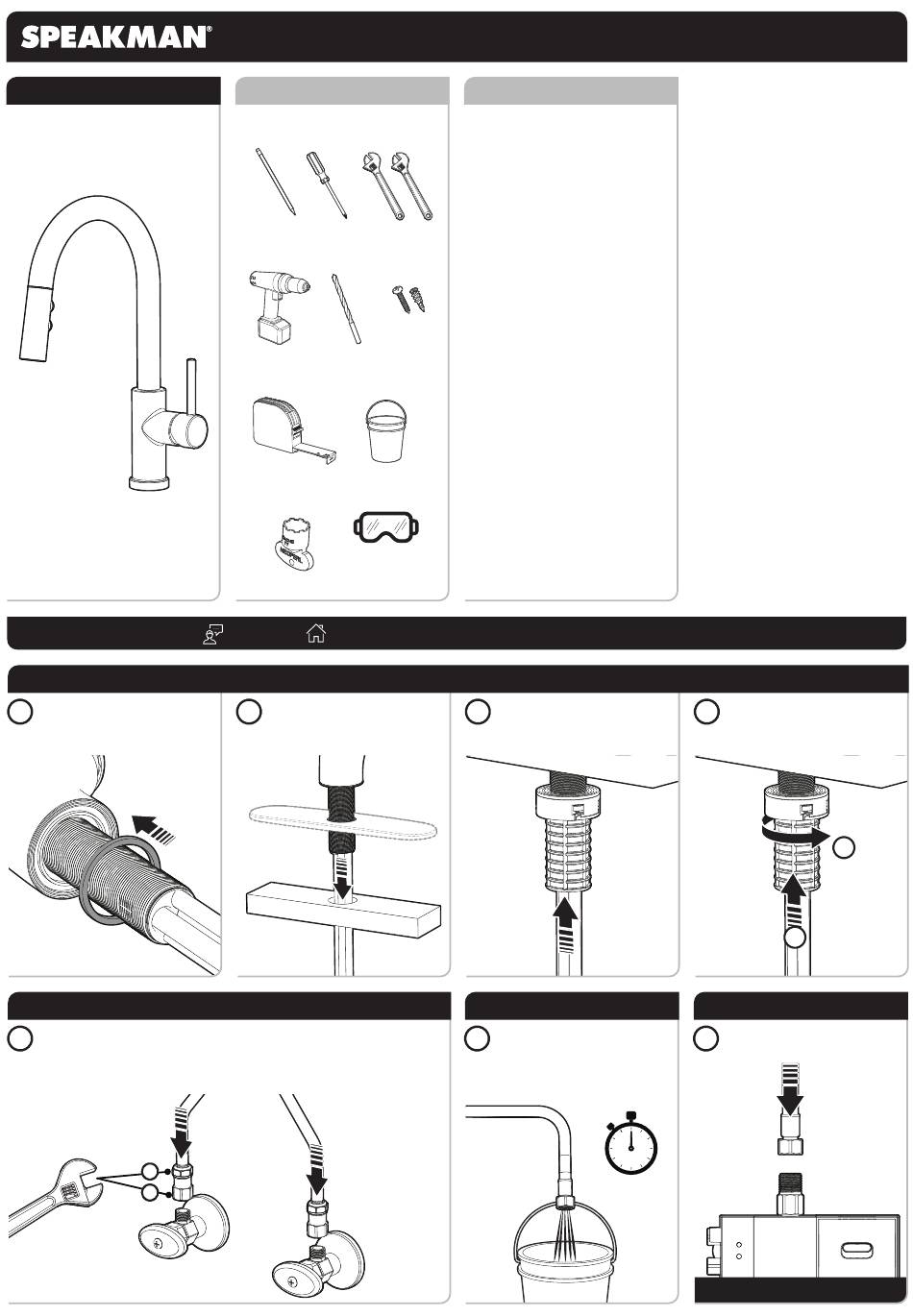

INSTALLATION INSTRUCTIONS
SBS-1042
Sensor Kitchen Faucet
92-SBS-1042-03
NEED HELP?
For additional assistance or service please contact:
Verify the Rubber Washer is seated in the
1
base of the Faucet. If not, place the
Rubber Washer over hoses and align to
base of Faucet.
CONNECTION TO WATER SUPPLY
Locate the 2 Inlet Hoses that contain Inlet Adapters. Make connections to existing HOT and
5
COLD Supply Stops. The Inlet Hoses are 9/16"-24 UNF and will accept a 3/8" Compression
Fitting. First loosen connection between Adapter (A) and Hose End (B) so each can rotate.
Wrench tighten Adapters to Supply Stops then wrench tighten Hose Ends to the Adapters . The
Hoses are interchangeable for HOT and COLD connections. Desired connection can be
determined later in the "Temperature Adjustment" section of the manual.
B
A
TOOLS & SUPPLIES NEEDED
Pencil
Phillips
Adjustable
Screwdriver
Wrenches
Drill
Drill Bit
Mounting
Hardware
(included)
Measuring
5 Gallon
Tape
Bucket
Aerator Wrench
Eye Protection
(included)
www.speakman.com
800-537-2107
MOUNTING THE FAUCET
Place Hoses and Wiring, one at a time
2
through the mounting deck. If installing an
optional Deck Plate, position Hoses and
Wiring through the Deck Plate first.
IMPORTANT
SAFETY TIPS:
Be sure to read and understand all instructions
before beginning installation.
Inspect all connections after installation.
Cover the drain to avoid loss of parts.
Be sure to wear proper eye protection.
MAINTENANCE:
Your new product is designed for years of
trouble-free performance. Keep it looking new
by cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh
chemicals as these will dull the finish and void
your warranty.
See Maintenance section of this document for
additional information.
NOTE:
This installation manual covers several
models of Faucets. While the appearance of
your product may differ from those shown, the
installation method is the same.
From below, slide Easy Mount Nut over
3
Hoses and Wiring. Position Easy Mount
Nut on to the Faucet Shank
FLUSH SYSTEM
Locate the remaining Hose that has a
6
female end as shown below. Place this
Hose into a bucket. Turn on HOT and
COLD water supplies. Open Faucet
Handle and allow water to run from the
Hose and into the bucket for 1 minute.
1 Minute
Push upward on the Easy Mount Nut until
4
it makes contact with the underside of the
mounting surface (A). Rotate and hand
tighten into position (B).
B
A
CONNECT HOSE TO SOLENOID
Turn OFF water supplies. Assemble the
7
previously flushed Hose to the Inlet of the
Solenoid. Wrench tighten connection.
DRY CONNECTION ONLY!
DO NOT USE ANY THREAD SEALANT ON THIS CONNECTION
