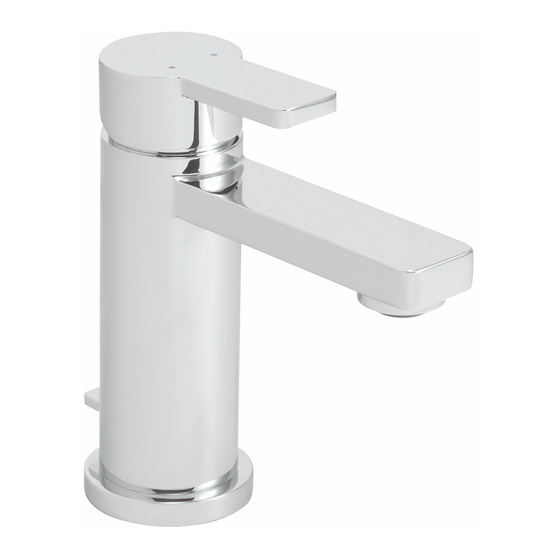

Speakman SB-2701 Instructions

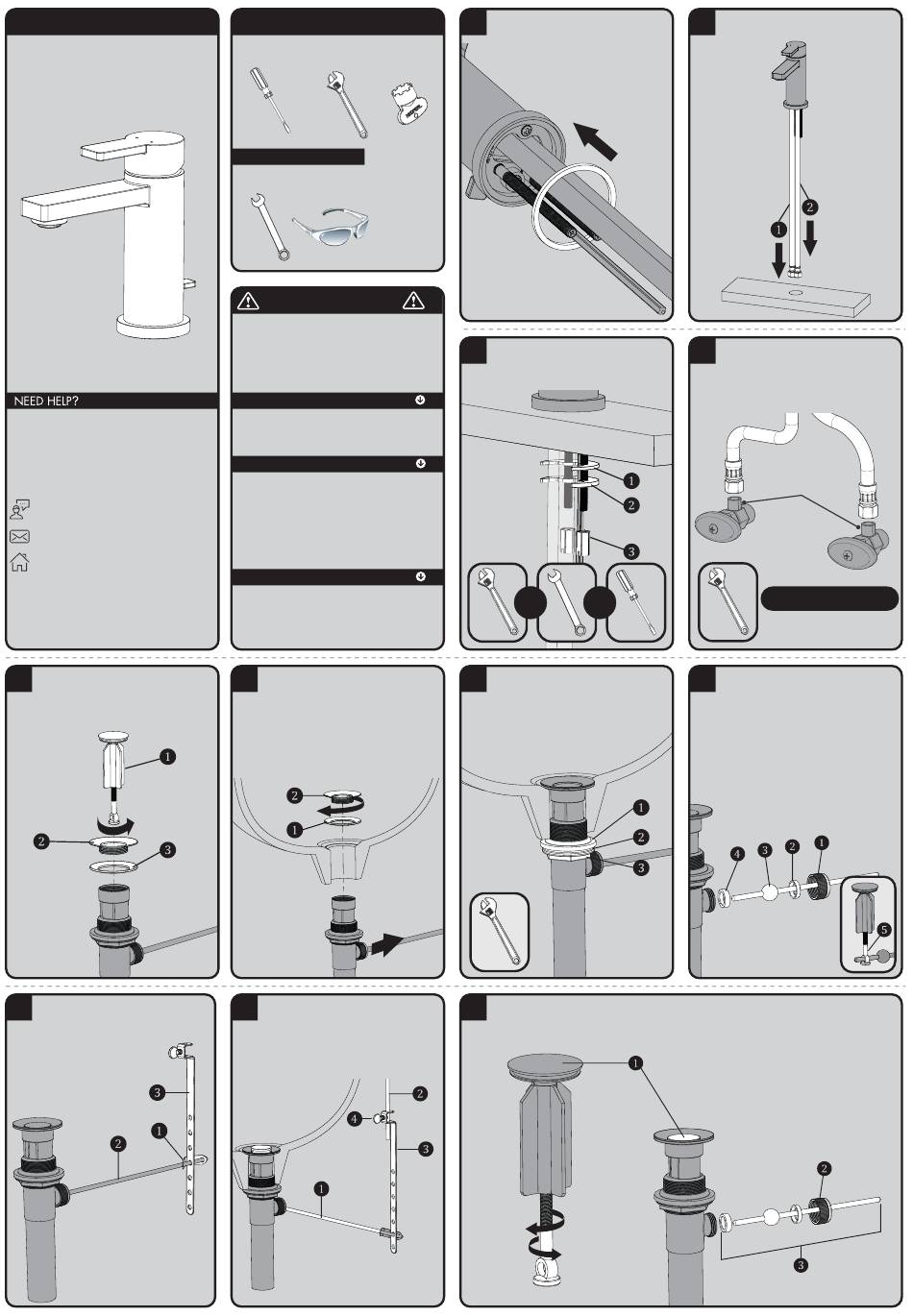

INSTRUCTIONS FOR MODELS
SB-2701
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
customerservice@speakman.com
www.speakman.com
92-SB-2701-01
5
Remove Stopper ❶, Flange Nut ❷, and Flange
Washer ❸ from Drain Assembly.
9
Place one end of Spring Clip ❶, on Pivot Rod
❷. Insert Pivot Rod ❷ through a hole in the
Lift Rod Strap ❸. Secure with Spring Clip ❶.
TOOLS AND SUPPLIES
Flat Tip Adjustable Aerator
Screwdriver Wrench Wrench
(included)
HELPFUL TOOLS & SUPPLIES:
10mm Safety
Wrench Glasses

IMPORTANT

• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
• This faucet has an operating range of 20-80 psi.

SAFETY TIPS

Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.

MAINTENANCE

Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives may damage the finish and
void the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.

WARRANTY

Warranty information can be found at:
www.speakman.com
6
From beneath, insert Drain Assembly through
drain hole in sink. Attach supplied Flange
Washer ❶ or plumber's putty to the underside of
the Flange ❷. Secure Flange ❷ to the Drain
Assembly. Align the Drain Assembly as shown
below.
Align towards faucet.
10
Place Drain into the open position by pressing
downward on the Pivot Rod ❶. Insert Lift Rod ❷
into Strap ❸. Adjust height of Lift Rod ❷, and
tighten Thumb Screw ❹.
1
Make sure Rubber Gasket is inserted properly in
Faucet groove. If not, place Rubber Gasket over
Hoses and align to base of Faucet.
3
From below, install Rubber Washer (1), Metal
Washer (2), and secure with Mounting Nuts (3).
Align Faucet to desired position and wrench
tighten Mounting Nuts (3).
OR OR
7
From beneath, secure Rubber Washer ❶, Plastic
Washer ❷, and Mounting Nut ❸. Wrench
tighten.
11
Additional adjustments can be made to ensure a proper seal between the Drain Stopper ❶ and Drain
Assembly. Remove Pivot Nut ❷, from Drain Assembly. Slide out Pivot Rod Assembly ❸ . Remove Drain Stopper
❶. Additional adjustments can be made by either threading in or out the eyelet portion of the Drain Stopper ❶.
2
Place Hoses, one at a time, through hole in
mounting surface. Lower Faucet into position.
4
Make connections to water supplies. The inlet
threads of the faucet are 9/16"-24 UNEF and
will accept a 3/8" Compression Fitting. Wrench
Tighten.
Accepts a 3/8"
Compression
Fitting
SUPPLY STOPS NOT INCLUDED
8
Remove Pivot Nut ❶, from Drain Assembly.
Install Outer Pivot Washer ❷, and Pivot Rod ❸.
Ensure that Inner Pivot Washer ❹ is retained in
Drain Assembly. Insert Pivot Rod into Drain
Assembly and install Stopper ❺ as non-remov-
able. Secure Pivot Rod to Drain Assembly by
tightening Pivot Nut ❶.
