Proxicast ANT-129-001 Assembly Instructions

Directional Antenna Installation Tips
• Determine location of nearest cell tower for your carrier (see opensignal.org or
cellreception.com)
• Orient antenna so cables point downward
• Mount antenna to 2.0 inch max diameter mast or to wall as high as possible
• Point antenna toward cell tower
• Point away from:
• Adjust antenna position left/right and up/down tilt to find optimal signal
• Keep coax lead cable as short as possible & weatherproof all outdoor connectors
• Observe safety codes regarding lightning protection, grounding, and mast height
© Copyright, Proxicast LLC. All rights reserved.

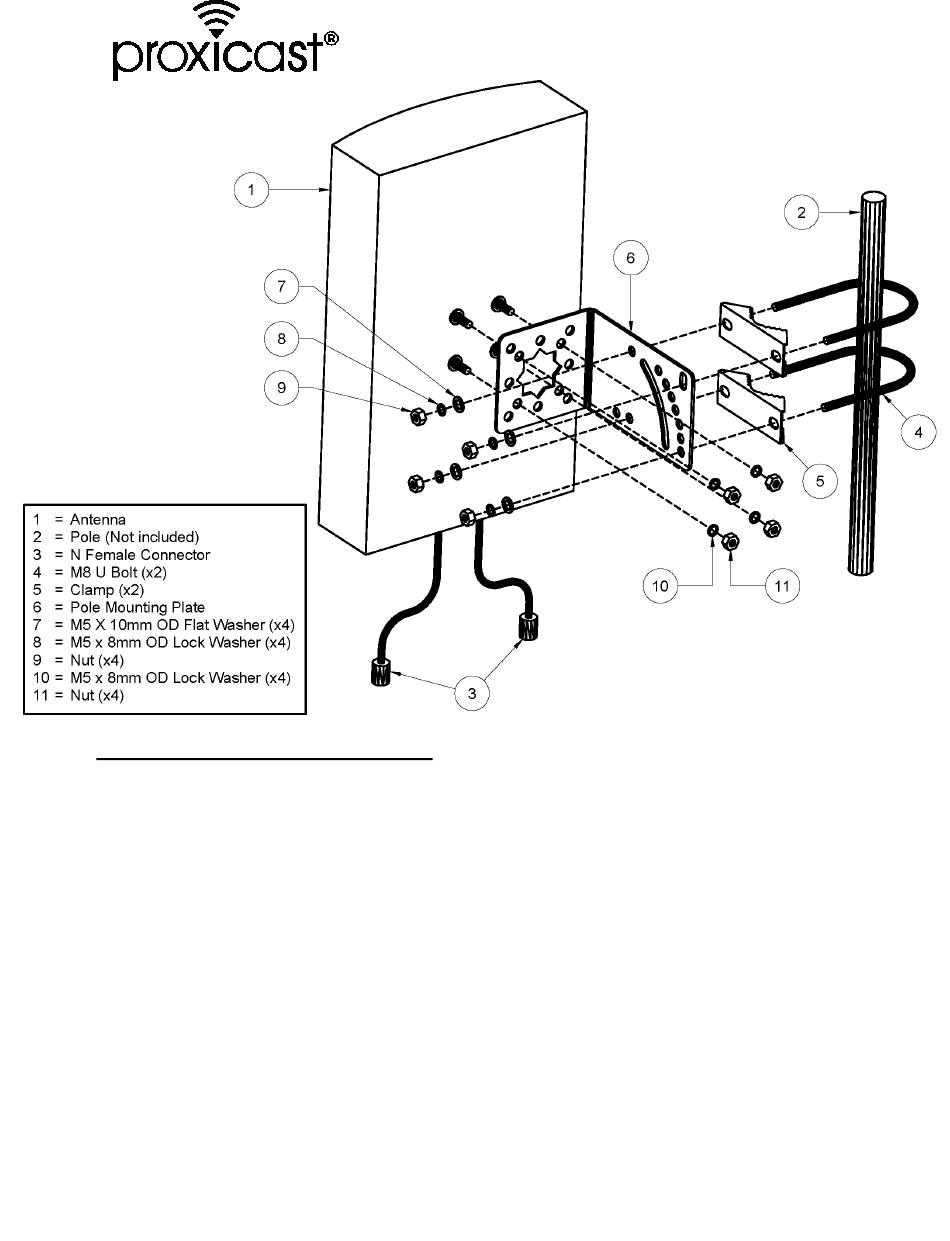

ANT-129-001 PANEL ANTENNA
ASSEMBLY INSTRUCTIONS
• other antennas
• trees & buildings
• large vertical metal or concrete objects
