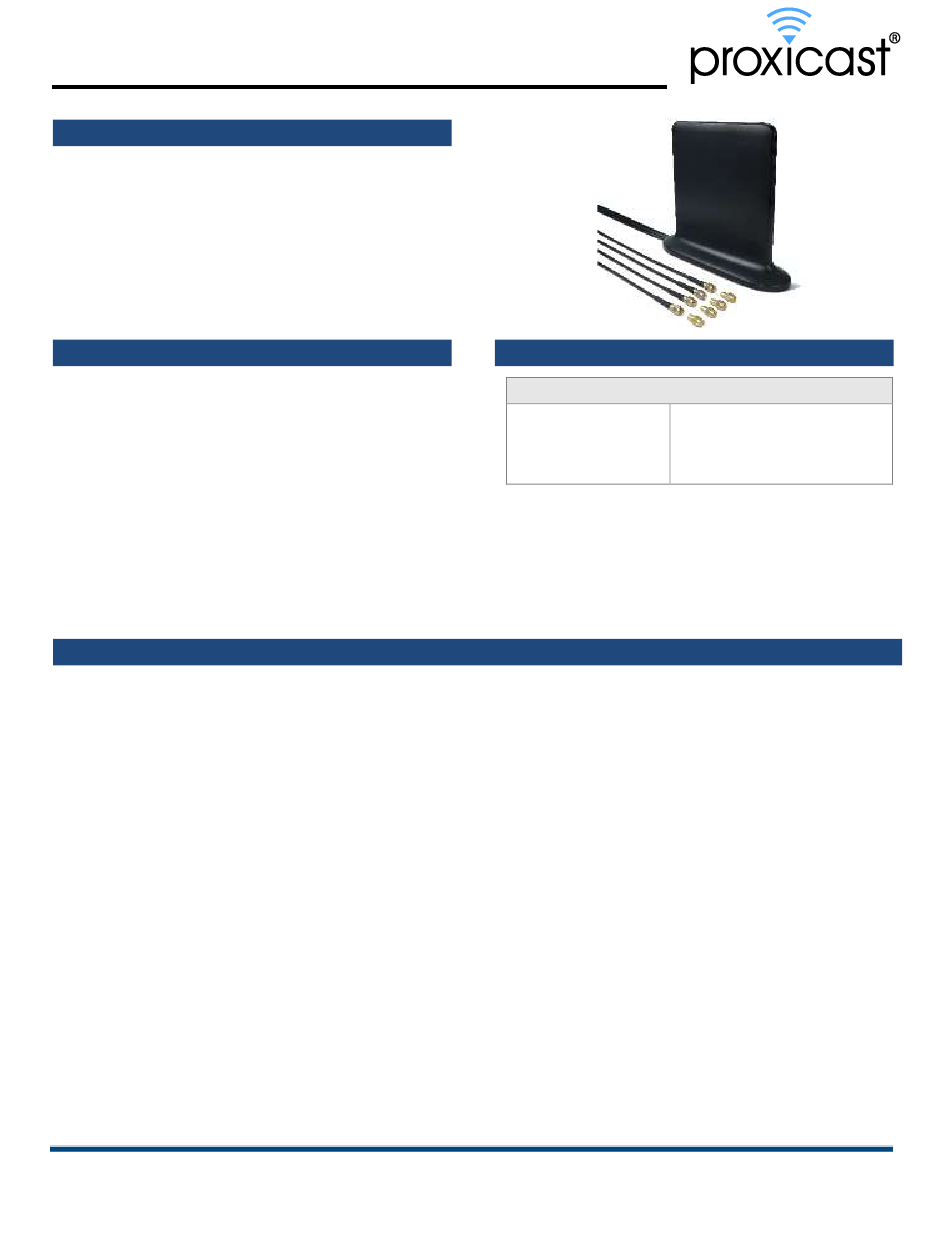

Proxicast ANT-117-544 Manual

ANT-117-544
4x4 MIMO Omni-Directional Wi-Fi/4G/5G Antenna
Applications
• MIMO Wi-Fi Routers & Access Points
• MIMO 4G/5G Routers, Modems & Gateways
• FirstNet and CBRS Equipment
• Indoor Use Only
Product Features
• Covers all Wi-Fi Frequencies (2,4, 5.8, 6, 7 GHz)
• Compatible with all 4G/5G Sub-6 (FR1) Networks
& Devices with external antenna jacks
• Supports FirstNet, CBRS and 3.5 GHz C-Band
• Peak Gain: 5 dBi (4G/5G) ~ 3 dBi (Wi-Fi)
• 4 Identical and Isolated Omnidirectional Elements
• 4 Integrated RP-SMA Male Connectors + SMA
Male Converters
• 6.6 ft of LMR100 coax
General Description
This first-of-its-kind 4x4 Desktop MIMO Antenna provides a wideband frequency solution for today's state-of-
the-art multi-antenna wireless systems.
Wideband frequency coverage includes the 2.4, 5.8 and 6-7 GHz bands used for the IEEE 802.11a, b, g, n, ac,
You are ready for the future
ax, be standards.
Supports all 4G/LTE, 5G, FirstNet and OnGo (CBRS) radio bands between 600 and 6000 MHz.
with all brands
of modems and routers with external antenna jacks. 4x4 MIMO provides the maximum in data
throughput.
With 4 identical isolated elements, you can configure this MIMO antenna as needed:
•
4x4 5G
•
2x2 4G/5G + 2x2 4G/5G (dual SIM)
•
2x2 4G/5G + 2x2 Wi-Fi
•
1x 4G/5G + 3x3 Wi-Fi
•
4x4 Wi-Fi
The 6.6 ft coax leads and magnetic/adhesive base let you position the antenna for optimal signal reception.
The 4 RP-SMA Male connectors make this antenna compatible with most brands & models of Wi-Fi access
points & routers. The included SMA Male adapters are used with 4G/5G modems, routers & gateways that have
SMA antenna jacks.
Data Sheet: Rev B 07/12/24
© Copyright Proxicast, LLC. All rights reserved.
Ordering Information
Part No.
ANT-117-544
with built-in support for MU-MIMO Wi-Fi 6e and even Wi-Fi 7.
- 1 of 13 -
Description
Proxicast 4x4 MIMO Omni
Desktop Antenna for Wi-Fi
& 4G/5G
Compatible
Disclaimer: Subject to change without notice
