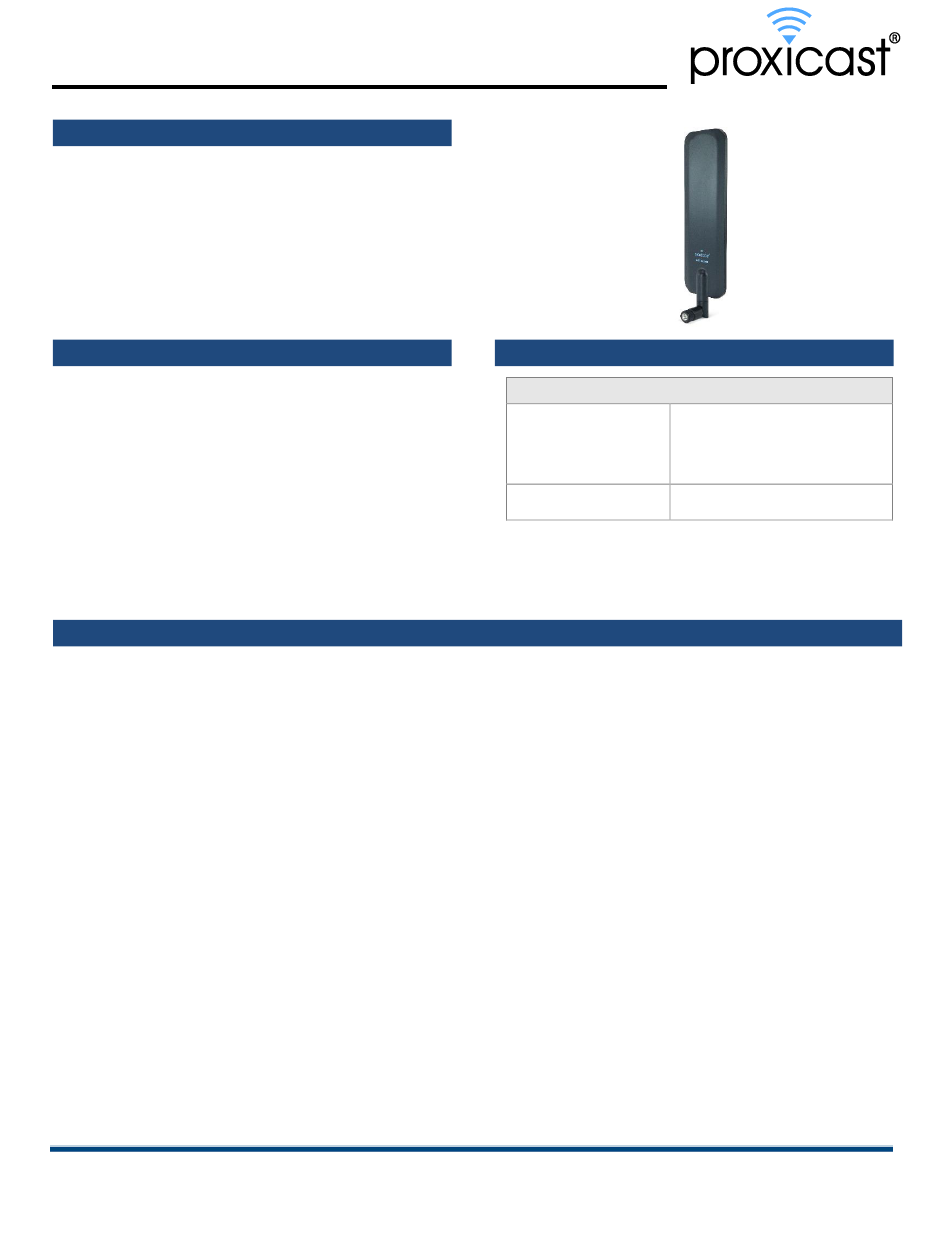

ANT-120-008
3-6 dBi Omni-Directional 4G/5G/CBRS Terminal Antenna
Applications
• Direct Replacement for Low Gain Antennas
included with many Cellular Products
• 4G/5G Routers & Modems
• FirstNet and CBRS Equipment
• Cellular Amplifiers
• Optional Magnetic Base
Product Features
• Compatible with most Cellular Modems/Routers
• Compatible with all 4G/5G Sub-6 (FR1) Networks
• Supports FirstNet, CBRS and 3.5 GHz C-Band
• 3 – 6 dBi Peak Gain
• Omni-Directional
• Integrated SMA Male Connector & Ground-Plane
• Swivels 90° & Rotates 360°
General Description
The Proxicast Flat Swivel Paddle Terminal Antenna is an efficient mid-gain 4G/5G/FirstNet/CBRS omni-
directional antenna. The "rubber-duck" style antenna is 8.7 inch tall and provides up to 6 dBi of gain. This
antenna and supports all 3G, 4G/LTE, sub-6 5G, CBRS (OnGo) and FirstNet frequency bands (600-6000 MHz)
used by U.S. and Canadian cellular carriers such as Verizon Wireless, AT&T Wireless, T-Mobile, Rogers, Bell
Mobility and Telus as well as most other cellular operators worldwide.
The U.S. 5G FR1 bands covered include low frequency bands n71 (T-Mobile), n5 (AT&T, Verizon), n2
(Verizon), n66 (Verizon) and mid frequency C-bands n41 (T-Mobile) and n77 (AT&T, Verizon). All 4G/LTE
bands used worldwide are also covered.
The polycarbonate antenna's 3-way hinge rotates 360 degrees, swivels 180 degrees and tilts 90 degrees for
optimal positioning and maximum signal reception.
The SMA male screw-on plug and integrated ground-plane make installation simple. This antenna is a smart
choice for applications where extra gain is required.
Compatible with all SMA-based equipment including modems and routers from Cisco, Cradlepoint, Digi,
Pepwave, Proxicast, Sierra Wireless, Sixnet/Red Lion and many others.
For MIMO applications use 2 identical antennas.
Compatible with Proxicast's 3.5-inch Pro-Grade SMA Magnetic Antenna Base (ANT-120-MB5).
Data Sheet: Rev A 03/21/22
© Copyright Proxicast, LLC. All rights reserved.
Ordering Information
Part No.
ANT-120-008
ANT-120-008-2PK
- 1 of 10 - Disclaimer: Subject to change without notice
www.proxicast.com
Description
Universal Wide-Band 3-6 dBi
Omni-Directional Swivel
Terminal Antenna – SMA
2 Pack of Identical Antennas
