Reese Towpower 85350 Installation Instructions

READ THIS FIRST:
Read and follow all instructions carefully
before beginning installation.
LISEZ CECI EN PREMIER:
Lire et suivre toutes les instructions
attenrivement avant le montage.
LEA ESTO PRIMERO:
Lea y siga todas las instrucciones
cuidadosa-mente antes de iniciar la
instalación.

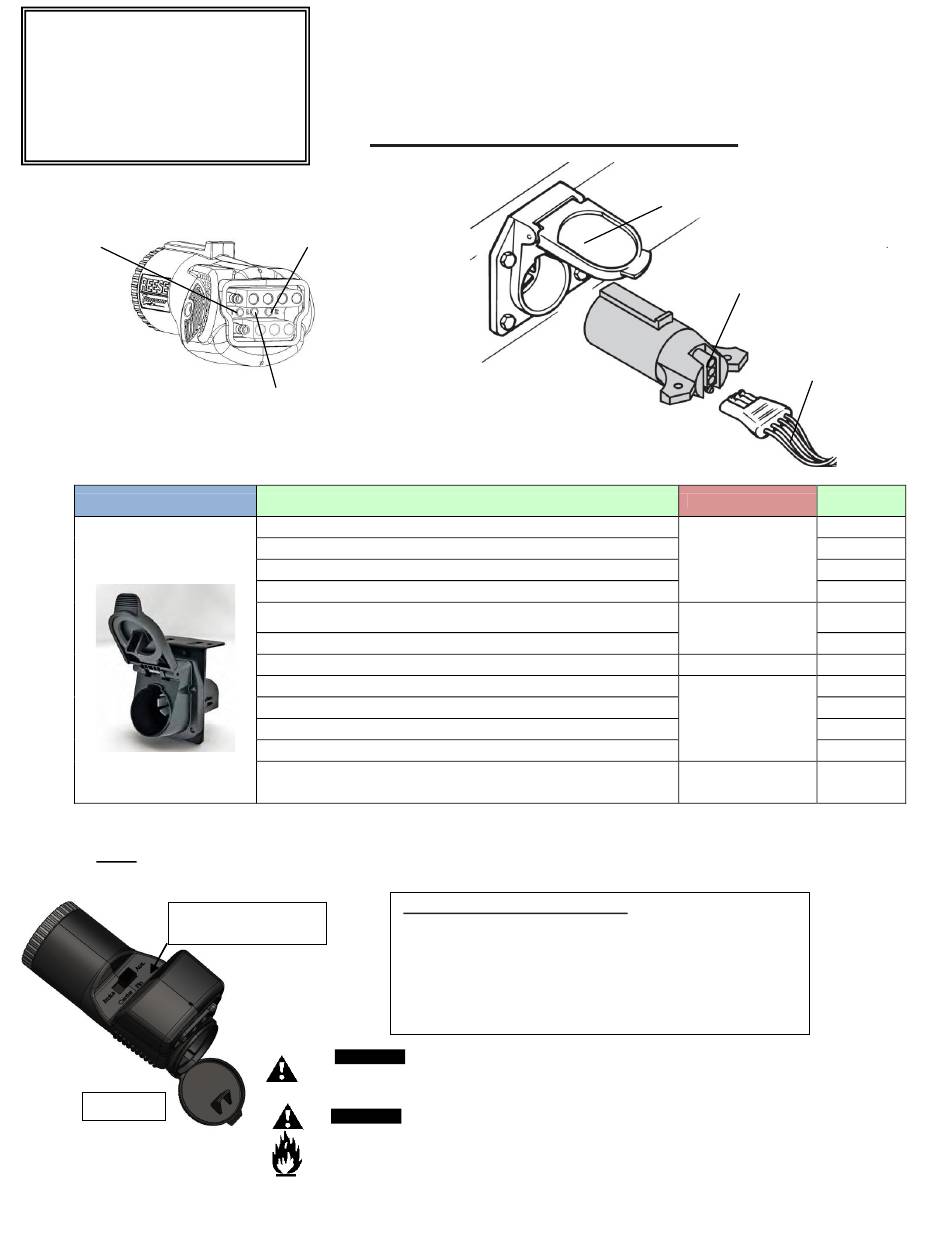

WIRING ADAPTER WITH
LED CIRCUIT TESTER
T - Tail Lights
Luces traseras
Feux arrière
VEHICLE'S CONNECTOR
7-Way Blade, RV Type
Plug wiring adapter into tow vehicle side connector to allow electrical connections between 7-way Blade Receptacle with variety of the
trailer Plugs.
NOTE:
Wiring Adapters equipped with the built-in LED circuit testers will confirm that each connection is operating properly. Refer to the LED lights
Instant switch
12V or Brake Center Pin
P/N 85350
March 15, 2011
lnstallation lnstructions
lnstrucciones de instalación
Directives de montage
7-WAY Blade Wiring Adapters
R - Right Turn and Stop
Intermitente derecho y freno
Clignotant et feu d'arrêt droits
L - Left Turn and Stop
Intermitente izquierdo y freno
Clignotant et feu d'arrêt gauches
FUNCTIONS OF WIRING ADAPTER
7-Way Blade To 4-way Flat
7-Way Blade To 4-way Flat with LED tester
7-Way Blade To 4-way Flat, Retractable
7-Way Blade To 4-way Flat Tow-Glo
7-Way Blade To 6-way Round
Combo 7-Way Blade To 6 way Round with Back-up alarm
Combo 7-Way Blade To 7-way Blade with Back-up alarm
Combo 7-Way Blade To 4 & 5 way Flat with Back-up alarm
Combo 7-Way Blade To 4 & 5 way Flat
Combo 7-Way Blade To 4 & 5 way Flat with LED tester
Combo 7-Way Blade To 4 & 5 Flat with LED tester & 12V outlet
Combo 7-Way Blade To 6-way Round & 4 Flat with LED tester
diagram shown.
WARNING
All connections must be complete to function properly. Test and verify installation with a test
light, circuit tester or trailer once installed.
WARNING
Overloading circuit can cause fires. DO NOT exceed lower of towing manufacturer rating or:

Max. Right Turn, Left Turn, Stop, & Tail Light Circuits: (7.5 amps)

Max. (+) Battery, Reverse, and Electric Brake Circuits: (30 amps)
Read vehicle's owners manual & instruction sheet for additional information. Additional fusing
maybe required.
INSTANT SWITCH INSTRUCTIONS *:
1. Determine which circuit is located on the center pin of the
6-PIN Trailer Connector (either BRAKE or Auxiliary).
2. Slide switch on bottom of Adapter to match with the trailer
Center Pin function.
3. Test connections to be sure all circuits are connected
properly before towing.
TOWING
VEHICLE
CONNECTOR
WIRING
ADAPTER
TRAILER'S
PLUG
TRAILER'S PLUG CCP P/N
74607
78116
4-way Flat
78007
78117
85216
74685
6-way Round Pin
74680
7-way Blade 74679
74678
85212
4-way or 5-way Flat
78118
78119
6-way Round Pin or
85350*
4-way Flat
