Arkon SM015-2AMPS User Manual

SM015-2AMPS | VSM 4 Hole AMPS Adapter Mount with Universal Phone Cradle
Patented
AP032
Dual-T to 4-hole
AMPS Adpter plate

Console Mounting VSM Bracket

Step 1. Find a safe location on the console to install the vehicle
specifi c mount (VSM) sold by other manufacturers. The VSM
bracket is not included in this kit. Follow the manufacturers
instructions for installing VSM bracket.

Connect Adapter plate AP032 to VSM Bracket

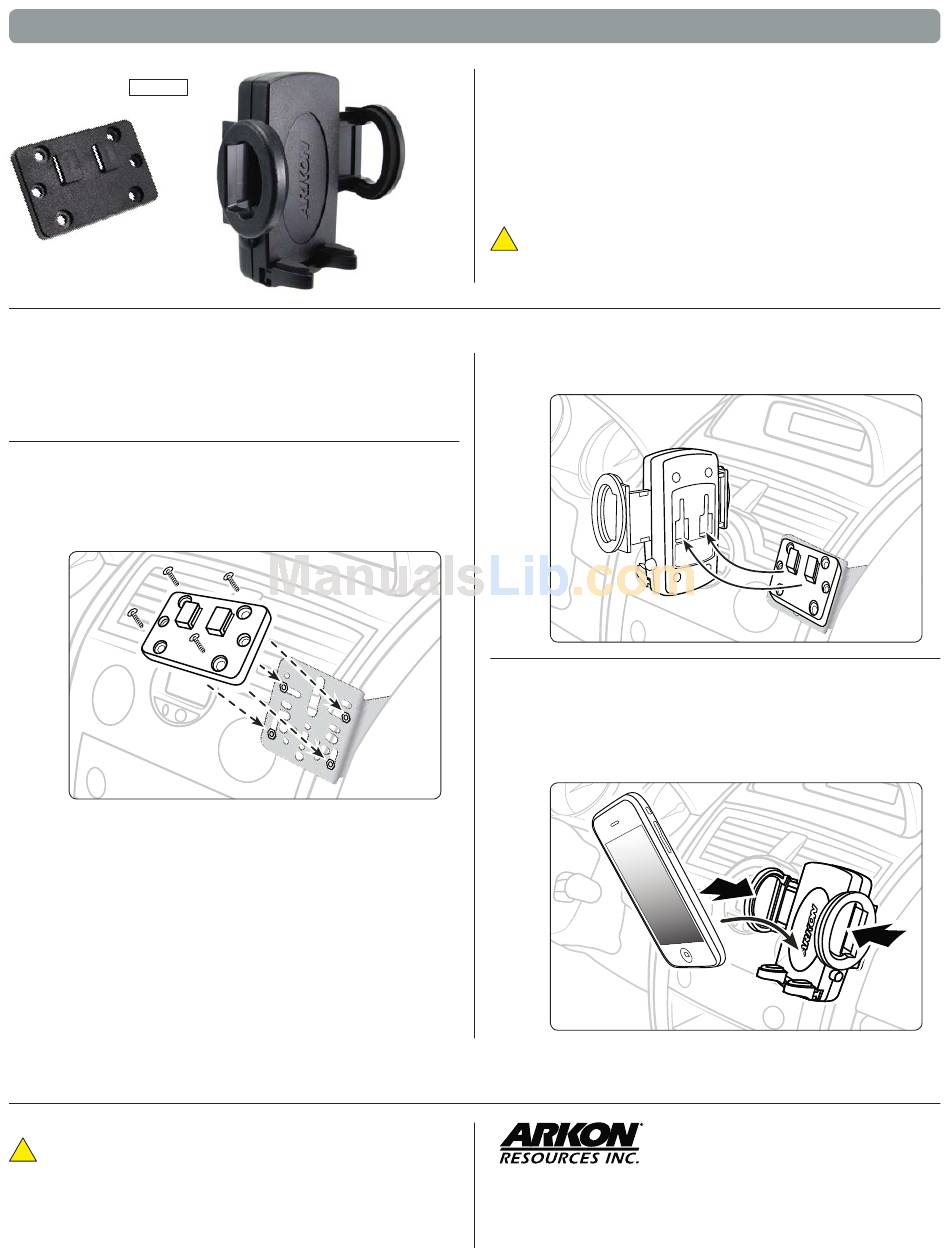

Step 1. Place the Dual-T to 4-hole AMPS adapter plate against the
VSM bracket. Using a screwdriver, tighten the screws into
the nuts behind the adapter plate. See diagram below.

Safety Precautions

!
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.

Package Contents:

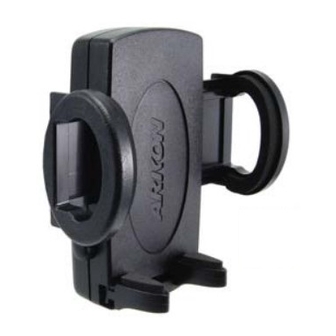

(1) SM015-2 - Universal Phone Cradle
(1) AP032 - Dual-T to 4-hole AMPS adapter plate with screws and nuts
SM015-2 SM015-2
Univers Universal
!
Do not place mount in or near an air bag deployment zone.
Phone C Phone Cradle

Connect Mobile Phone Cradle to VSM Mount

Step 1.

Device Insertion and Removal from Cradle

Step 1.
Consumer Hotline:
USA
(800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST
Connect the Dual-T slots (A) on the back of the phone cradle to
the Dual-T tabs (B) on the Dual-T to 4-hole AMPS adapter plate.
A
Insert your phone or device into the cradle with the device
sitting on the adjustable support legs (C). Squeeze the
grip arms (D) inward to fi rmly grasp the device. Press the
release button (E) to open the arms.
The Mobile Mounting Specialists™
© Copyright 2010 Arkon Resources, Inc.
B
D
E
C
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in Taiwan
