- Page 3 B．Machine operatio (1)Machine control interface description Primary Secondary Function Explain interface interface control Move and home the X, Y axis Move and home the Z axis Load and unload the filaments Move Distance Moving distance Disable Unlock the motor Enable Lock motor File selection File...
- Page 4 Increase\decrease Adjust the nozzle flow Tune Nozzle flow rate Restore Restore default setting Step Nozzle flow step size Nozzle temp Display the temperature of nozzle Heatbed temp Display the temperature of hot bed Home Filament type Select the filament to preheat nozzle and hot bed Filament Cool Stop heating and cool the nozzle or hot bed...
- Page 5 (3)Move interfac Move the Y Moving distance axis forward per step Move the X Home the X axis to the left and Y axis Move the Y Dispaly X and Y axis backward coordinate Move Load the filament Z axis Unlock the motor Home...
- Page 6 (4)Tune interfac Adjust the nozzle temp Adjust the hot bed temp Adjust the fan speed Adjust the printing speed Adjust the nozzle flow...
- Page 7 (5)Filament interfac Real-time temp Real-time temp of nozzle of hot bed Target temp of Target temp of nozzle hot bed Select the Cool the nozzle filament to heat the nozzle and Cool the hot bed hot bed Increase the Unload the filament temp of nozzle Decrease the Load the filament...
-
Page 8: File Interface

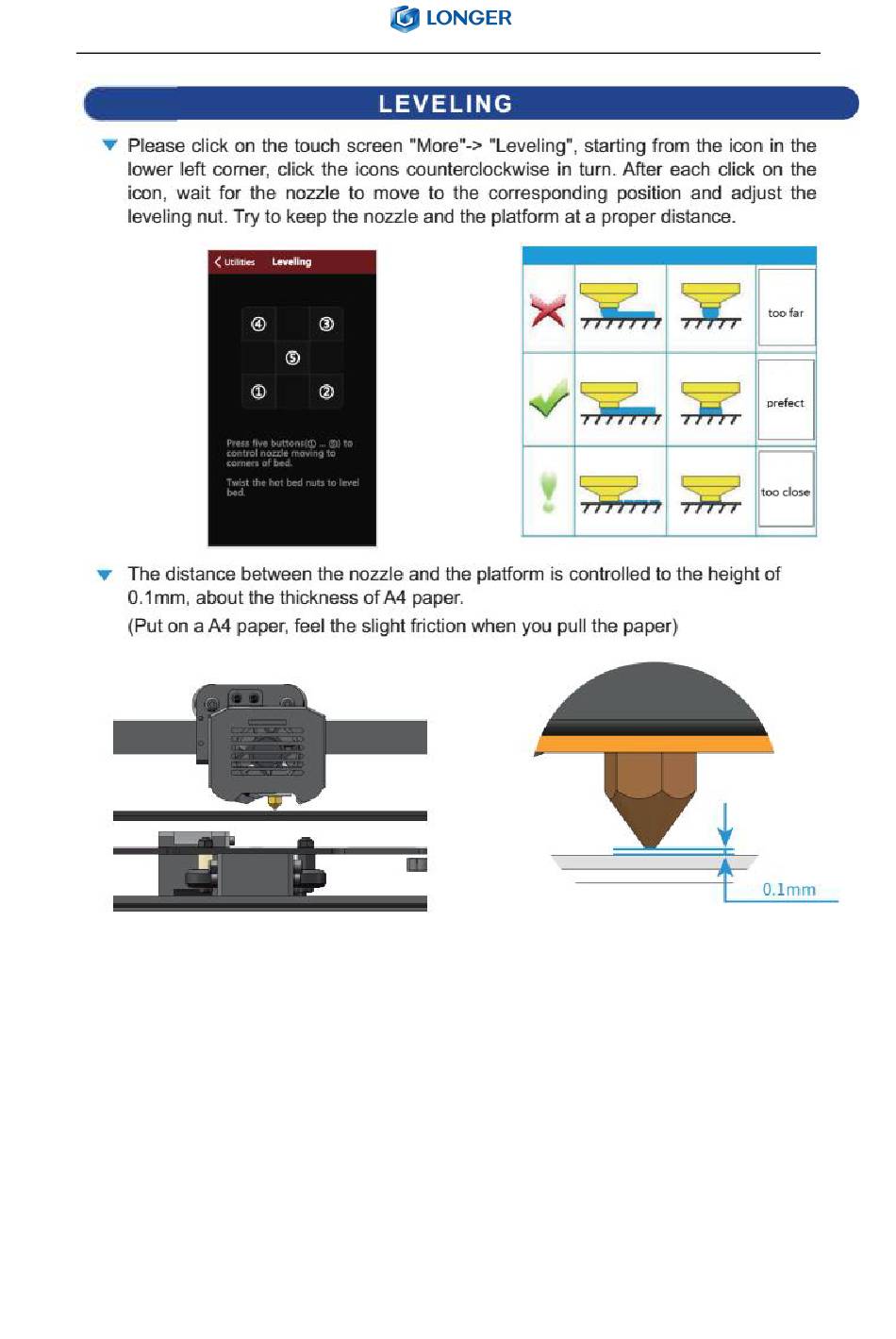

(6)Leveling interfac Click the five points in turn to move the nozzle and then level the hot bed. (7)File interface List of printable files in SD card, and the file name will turn red when it is selected. Click the Open to print the selected file. - Page 9 (8)Print interfac Real-time temp Real-time temp of nozzle of hot bed Target temp of Target temp of nozzle hot bed The file name Time consumed The height of Z Printing progress Pause printing Cancel printing Adjust settings Change filament...
