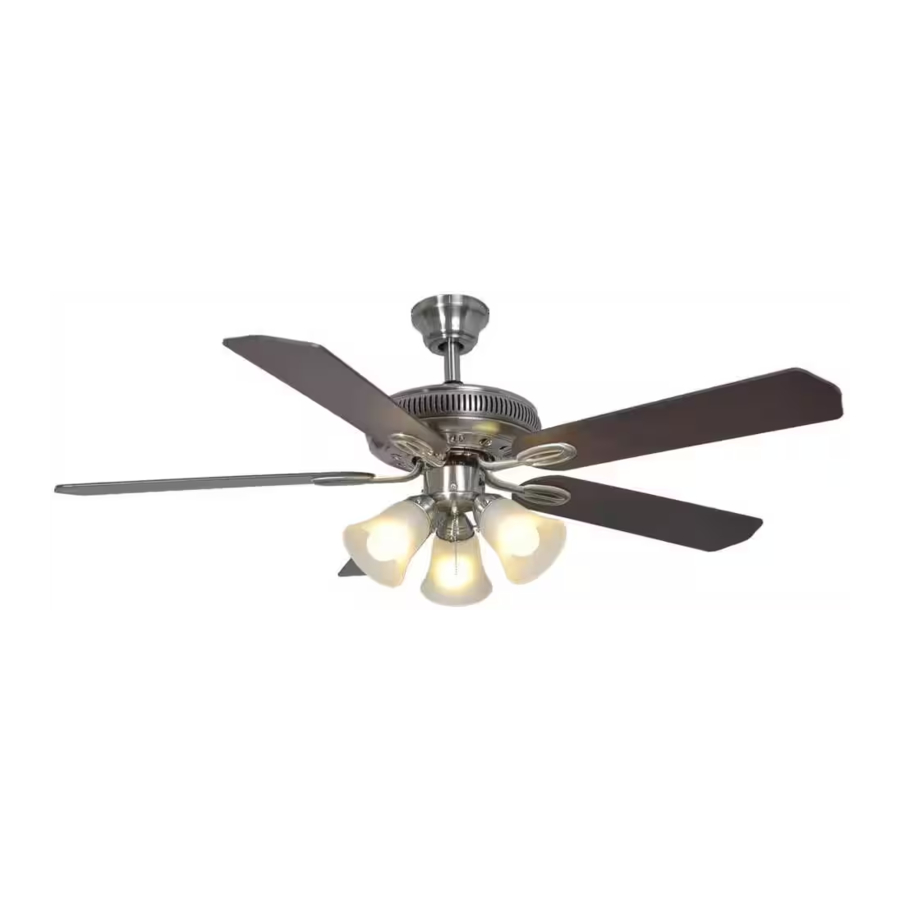

HAMPTON BAY Glendale 52 Manual

Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items;

Fan blades (5)
Canopy assembly
Ball/downrod assembly
Fan motor assembly
Blade arms (5)
Light kit
Glass shades (3)
Pull chain and fobs (2)
Balancing kit

Loose parts bag containing:
1. Blade attachment hardware (16 screws)
2. Mounting hardware ( 3 plastic wire connectors)
3. Light kit hardware (1 screw)

DO NOT INSTALL OR USE FAN IF ANY PART IS DAMAGED OR MISSING.
CALL TOLL FREE 1-877-898-1881

Installing Your Fan

Tools Required

Phillips screwdriver, straight slot screwdriver, adjustable wrench, step ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 50 lbs). Do not use plastic outlet boxes. Figures 1,2 and 3 are examples of different ways to mount the outlet box.

warning Note: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling.

To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar. (Fig.4) (available at any Home Depot store).

Hanging the Fan

REMEMBER to turn off the power. Follow the steps below to hang your fan properly.

NOTE: This ceiling fan is supplied with two types of hanging assemblies; the standard ceiling installation using the downrod with ball and socket mounting and the "close-to-ceiling" installation.
The "close - to - ceiling" installation is recommended in rooms with less than 8foot ceilings or in areas where additional space is desired from the floor to the fan blades. When using the standard 4 1/2" downrod, the distance from the ceiling to the bottom of the fan blades will be approximately 12 1/2 inches. Once you have selected which mounting system you will use, proceed with the following instructions. Where necessary, each section of the instructions will note the different procedures to follow for the two types of mounting.

STANDARD CEILING INSTALLATION

Remove the canopy ring from the canopy by turning the ring clockwise until it unlocks. (Fig. 5)
Remove the hanger bracket from the canopy by loosening the four screws on the top of the canopy. Remove the two non-slotted screws and loosen the slotted screws. This will enable you to remove the hanger bracket. (Fig. 5)
Pass the 120-volt supply wires through the center hole in the ceiling hanger bracket. (Fig. 6)
Loosen the two screws on the outlet box in half way.
Attach the hanger bracket on the outlet box by sliding the hanger bracket over the screws provided with the outlet box.
Tighten the two screws on the outlet box securely.
Remove the hanger pin, lock pin and set screws from the top of the motor assembly.
Route wires exiting from the top of the fan motor through the canopy ring. Make sure the slot openings of the canopy ring are on top. Route the wires through the canopy and then through the ball/downrod assembly. (Fig. 6A)
Align the holes at the bottom of the downrod with the holes in the collar on top of the motor housing (Fig.6A). Carefully insert the hanger pin through the holes In the collar and downrod be careful not to Jam the pin against the wiring inside the downrod. Insert the locking pin through the hole in locked position. (Fig. 6A)

FAILURE TO PROPERLY INSTALL LOCKING PIN AS NOTED IN STEP 9 COULD RESULT IN FAN LOOSENING AND POSSIBLY FALLING.
Tighten two set screws on top of the fan motor firmly. (Fig. 6A)
Place the downrod ball into the hanger bracket socket.

CLOSE-TO-CEILING INSTALLATION

Remove the canopy ring from the canopy by turning the ring until it unlocks. (Fig. 5)
Remove the hanger bracket from the canopy by loosening the four screws on the top of the canopy. Remove the two non-slotted screws and loosen the slotted screws. This will enable you to remove the hanger bracket. (Fig. 5)
Remove the decorative canopy bottom cover from make the electrical connections. the canopy by depressing the three studs (Fig. 7A)
Pass the 120-volt supply wires through the center hole in the ceiling hanger bracket. (Fig. 6)
Loosen the two screws on the outlet box halfway.
Attach the hanger bracket on the outlet box by sliding the hanger bracket over the screws provided with the outlet box.
Tighten the two screws on the outlet box securely.
Remove three of the six screws and lock washers (every other one) from the collar of top motor (Fig. 7)
Route the wires exiting the top of the fan motor through the canopy ring (make sure the slot openings of the ring are on top). then proceed to place the ceiling canopy over the collar at the top of the motor. Align the mounting holes with the holes in the motor and fasten using the screws and lock washers provided (Fig. 7).
Tighten the mounting screws securely. (Fig. 7)

FAILURE TO COMPLETELY TIGHTEN THE THREE SCREWS IN STEP 9 COULD RESULT IN FAN LOOSENING AND POSSIBLY FALLING
Hang the fan on the tab of the hanger bracket. Be certain that the canopy is fully locked into shown in Fig. 8. This will allow you to make the electrical connections.

Making the Electrical Connections

Remember to disconnect the power.
Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan. Secure the connectors with electrical tape. Make sure there are no loose strands or connections.

Step 1 Connect the fan supply (black) wire and light supply (blue) wire to the black household supply wire as shown in Figure 9.

Step 2. Connect the neutral fan (white) wire to the white neutral household wire.

Step 3 Connect the fan ground wire (green) to the household ground wire.

Step 4 After connecting the wires, spread them apart so that the green and white wires are on one side of the outlet box and the black and the blue wires are on the other side.

Step 5 Turn the connecting nuts upward and push the wiring into the outlet box.

Figures 10 and 11 illustrate the wiring connections for the optional wall control (available at your Hampton Bay Retailer, the wire color out of the wall control may vary, see wall control's installation manual for correct wire connections.)

warning NOTE
LIGHT KITS ARE AVAILABLE AT YOUR HAMPTON BAY RETAILER. THE FAN IS ALREADY WIRED TO SUPPORT THE LIGHT KIT OPTION.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL INJURY. MOUNT FAN ONLY ON AN OUTLET BOX OR SUPPORTING SYSTEM MARKED ACCEPTABLE FOR FAN SUPPORT.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

Finishing the Installation

STANDARD CEILING INSTALLATION

Slide the canopy up to the ceiling as shown in Fig. 12 leaving a 1/8" clearance between the canopy and the ceiling. Make sure you place the wires safely into the outlet box. Secure the canopy to the hanger bracket with the four screws with your fan. Slide the canopy ring over the canopy and tighten by turning the ring.

Make sure the notch on the hanging bracket properly sits in the groove in the hanger ball before attaching the canopy to the bracket by turning the housing until it drops into place.

CLOSE-TO-CEILING INSTALLATION

Remove the fan from the tab on the hanger bracket. Secure the canopy to the hanger bracket as shown in Fig. 13 with four screws included with your fan. Slide the canopy ring over the canopy and tighten by turning the ring.

Remove the blade attachment screws from the fan motor assembly. Attach and adjust fan blades according to the instructions in the following section.

Attaching the Fan Blades

Remove 5 rubber packing mounts from fan motor assembly and discard before installation. (Fig. 14)

Step 1 Attach blades to blade arms using three screws and rubber washers.(Fig. 15) Start a screw into the blade arm, do not tighten. Repeat for the 2 remaining screws and washers.

Step 2 Tighten each screw securely starting with the center screw. Make sure the blade is straight. Repeat steps for the remaining blades.

Step 3 Fasten the blade arms to the motor by inserting the tab from the blade arms to the slot in the bottom motor housing, then tighten the two screws and washers already installed in the blade arms. (Fig. 16)

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARMS WHILE INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO NO INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

Installing the Light Kit

warning NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box.

Turning power off using the fan switch is not sufficient to prevent electric shock.

While holding the light kit under your fan, locate two single white and blue wires in the switch housing labeled "FOR LIGHT". Make the polarized plug connections:
- White to white
- Blue to black
Carefully push all wires back into the switch housing. Attach the light kit fitter by aligning its keyhole slots with the three screw holes and the reverse switch on the side of the switch housing. Tighten the three screws securely to prevent the light kit from vibrating loose. (Fig. 17)
Mount the glass shades to the light fixture by unscrewing partway the thumbscrews on the glass holders, insert the glass, then gently tighten the thumbscrews by hand evenly to the glass. DO NOT OVER TIGHTEN. (Fig. 18)
Install 3 x 40W candelabra bulbs (not included).
Restore power and your light kit is ready for operation.

Operating Your Fan

warning NOTE
WAIT FOR FAN TO STOP BEFORE CHANGING THE SETTING OF THE SLIDE SWITCH.

Turn on the power and check the operation of your fan. There are two pull chains available in your fan:

3-speed pull chain- it controls the fan speed as follows:
1 pull- High,
2 pulls- Medium,
3 pulls- Low, and
4 pulls- Off.
Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans, and so on.
Light kit pull chain- it controls the light kit in "ON" or "OFF".

The slide switch controls directions: forward (switch down ) or reverse (switch up ).

Warm weather - (Counter - Clockwise direction) A downward air flow creates a cooling effect. (Fig. 19) This allows you to set your air conditioner on a higher setting without affecting your comfort.

Cool weather- (Clockwise direction) An upward airflow moves warm air off the ceiling area. (Fig. 20) This allows you to set your heating unit on a lower setting without affecting your comfort.

Care of Your Fan

Here are some suggestions to help you maintain your fan

Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.)
Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause an electrical shock.
You can apply a light coat of furniture polish to the wood blades for additional protection and enhanced beauty. Cover small scratches with a light application of shoe polish.
There is no need to oil your fan.
The motor has permanently lubricated bearings.

MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS"

Troubleshooting

Problem	Solution
Fan will not start.	Check circuit fuses or breakers. Check line wire connections to the fan and switch wire connections in the switch housing. Make sure main power is off.
Fan sounds noisy.	Make sure all motor housing screws are snug. Make sure the screws that attach the fan blade bracket to the motor hub is tight. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. Make sure main power is off. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time. If using an optional light kit, make sure the screws securing the glassware are tight. Check that the light bulb is also secure. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this type of control, choose and install another type of control. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
Fan wobble.	Check that all blade and blade arm screws are secure. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling above the tip of one of the blades. Measure this distance.(Fig. 21) Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8". Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and possibly result in smoother operation. TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.

Specifications

Fan Size	Speed	Volts	Amps	Watts	RPM	CFM	N.W.	G.W.	C.F.
52"	Low	120	0.25	12	60	1800	8.26 kgs	9.02 kgs	1.68'
	Medium	120	0.40	35	110	3700
	High	120	0.53	63	160	5450

These are approximate measures. They do not include Amps and Wattage used by the light kit.

Safety Rules

To reduce the risk of electric shock, insure electricity has been turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device.
To reduce the risk of personal injury, use only the two steel screws (and lock washers) provided with the outlet box for mounting to the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced, consult a qualified electrician if in doubt.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT.
The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 50 pounds. Use only UL Listed outlet boxes marked FOR FAN SUPPORT.
The fan must be mounted with a minimum of 7 feet clearance from the trailing edge of the blades to the floor.
Do not operate the reverse switch while the fan blades are in motion. The fan must be turned off and the blades stopped before reversing the blades direction.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.
Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL Listed and marked suitable for use with the model fan you are installing. Switches must be UL General Use Switches. Refer to the Instructions packaged with the light kits and switches for proper assembly.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

warning NOTE
READ AND SAVE ALL INSTRUCTIONS!
