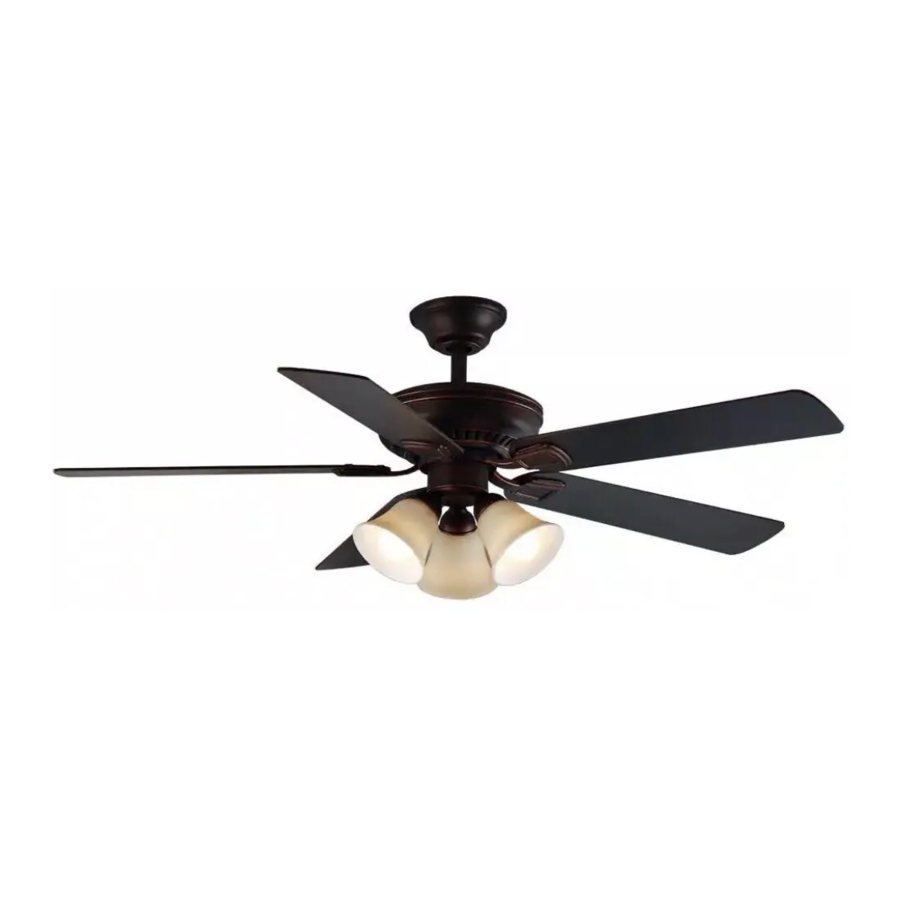

HAMPTON BAY CAMPBELL (91350, 91359) Manual

Pre-Installation

SPECIFICATIONS

NOTE: These are approximate measures. They do not include the amps and wattage used by the light kit.

TOOLS REQUIRED

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.

PACKAGE CONTENTS

This product and/or components are governed by one or more of the following U.S. Patents: 5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117 and other patents pending.

Installation

MOUNTING OPTIONS

To reduce the risk of fire, electric shock or personal injury, mount to an outlet box marked "Acceptable for fan support of 35 lbs. (15.9 kg) or less," and use the screws provided with the outlet box. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced. If in doubt, consult a qualified electrician.

If your ceiling fan does not have an existing UL-listed mounting box, then install one using the following instructions:

• Disconnect the power by removing the fuses or turning off the circuit breakers.
• Secure the outlet box directly to the building structure. Use the appropriate fasteners and materials. The outlet box and its bracing must be able to fully support the weight of the moving fan (at least 35 lbs.). Do not use a plastic outlet box.

The illustrations below show three different ways to mount the outlet box.

NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling. The maximum angle allowable is 20° away from horizontal.

If the canopy (C) touches the ball/downrod assembly (B), then remove the decorative canopy bottom cover and turn the canopy (C) 180° before attaching the canopy (C) to the mounting plate.
To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar as shown above (available at any Home Depot store).

Assembly - Standard Ceiling Mount

1. Preparing for standard mounting

   • Remove the canopy ring (L) from the canopy (C) by turning the ring counter-clockwise until it unlocks.
   • Remove the mounting bracket (A) from the canopy (C) by loosening the two canopy screws (JJ) located in the "L shaped" slots.
   • Remove and save the two canopy screws (II) in the round holes. This will enable you to remove the mounting bracket (A).
2. Routing the wires

   • Make sure the slot openings are on top and route the wires exiting the top of the fan-motor assembly (D) through the canopy (C) and the canopy ring (L) and then through the ball/downrod assembly (B).
3. Assembling the fan

   Failure to properly install the locking pin (EE) could result in the fan becoming loose and possibly falling.

   • Loosen, but do not remove, the setscrews (HH) on the collar on top of the fan-motor assembly (D).
   • Align the holes at the bottom of the ball/downrod assembly (B) with the holes in the collar on top of the fan-motor assembly (D).
   • Carefully inset the hanger pin (DD) through the holes in the collar and ball/downrod assembly (B). Be careful not to jam the hanger pin (DD) against the wiring inside the ball/ downrod assembly (B).
   • Insert the locking pin (EE) through the hole near the end of the hanger pin (DD) until it snaps into its locked position. □ Re-tighten the setscrews (HH) on the collar on top of the fan-motor assembly (D).

Assembly - Close-To-Ceiling Mount

• Mount the fan blade (F) to the blade bracket (G) by aligning the three key-slot holes in the blade (F) with the three posts on the top of the blade bracket (G).
• Hold the blade (F) with both hands close to the blade bracket (G) and press the blade (F) down firmly. Ensure the key-slot holes are properly seated on the blade bracket (G) posts.
• While still holding the blade (F) down with both hands, firmly slide the blade (F) away from the fan-motor (D) housing until the blade (F) engages in the locking mechanism. Make sure the steel locking mechanism at the rear of the blade bracket (G) springs upward and butts against the edge of the blade (F), indicating a secure connection.
• Visually inspect the top of the blade bracket (G) to ensure the locking mechanism is securely in place.
• Repeat this procedure for the remaining blades (F).

Assembly - Attaching the lights

1. Attaching the light kit fitter assembly

   To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing the light fixture.
   NOTE: Notice the location of the fan's slide switch. This is the switch used to change the fan's directional rotation. For more information on the operation of this switch, see Operating Your Fan and Remote Control.
   NOTE: If you need an extra switch cup (or cover) for the non-light option, please call 1-855-HD-HAMPTON (M-F 9:00am to 4:30pm EST).

   • Remove the three screws (RR) on the switch cup cover of the light kit fitter assembly (E).
   • Connect the wires from the light kit fitter assembly (E) to the wires from the switch cup of the fan-motor assembly (D) by connecting the molded adaptor plugs together (blue to black, white to white). Carefully tuck all wires and splices into the switch cup.
   • Align the three holes in the switch cup cover of the light kit fitter assembly (E) with the three holes in the switch cup of the fan-motor assembly (D). Make sure the notch in the switch cup cover of the light kit fitter assembly (E) clears the reversing switch in the switch cup of the fan-motor assembly (D). Position the light kit fitter assembly (E) and re-install the three screws (RR) that were removed in first step to secure the light kit fitter assembly (E).
2. Installing the glass shades and bulbs

   Allow the glass shades to cool completely before removing.

   Over lamping the light kit will result in the lights shutting down until the proper wattage of bulbs are installed. Reset the lights by turning off the lights, replacing the bulbs with the correct wattage bulbs, and turn the lights back on.

   Make sure the power is off before attaching or removing the glass shades.
   NOTE: Using a E12 CFL type bulb will eliminate the dimming option, and may cause flickering.

   • Insert the glass shade (H) into the light kit fitter assembly (E) glass holder by carefully squeezing the steel tensioners (TT) on the light kit fitter assembly (E) socket together.
   • Gently slide the glass shade (H) over the steel tensioners (TT). Make sure the glass shade (H) is fully inserted into the socket for a secure fit. Repeat this procedure for the remaining glass shades (H).
   • With the power off, install the light bulbs (I) into the light bulb sockets.

Operation

OPERATING YOUR FAN
Your fan is equipped with a remote control to operate the fan speed and lights of your new ceiling fan.
The speed setting for warm or cool weather depends on factors such as the room size, ceiling height, number of fans and so on.
The fan is shipped from the factory with the reversing switch positioned to circulate air downward. If airflow is desired in the opposite direction, turn your fan off and wait for the blades to stop turning, then slide the reversing switch (located in switch cup) to the opposite position, and turn the fan on again. The fan blades will turn in the opposite direction and reverse airfow.
NOTE: Wait for the fan to stop before reversing the direction of the blade rotation.
Warm weather - (Forward) A downward airflow creates a cooling effect. This allows you to set your air conditioner on a higher setting without affecting your comfort.
Cool weather - (Reverse) An upward airflow moves warm air off of the ceiling. This allows you to set your heating unit on a lower setting without affecting your comfort.

USING THE REMOTE CONTROL
NOTE: This remote is equipped with a 16-code combination. To prevent possible interference from or to other remote units, such as garage door openers, car alarms, or security systems, change the combination code but be sure that the code on both the remote control and receiver in the fan are the same.

• Install the 12-Volt battery (included) into the battery compartment of the remote control (J).
• Press the desired button on the remote control (J) to operate the fan:
  • "3" button: Press to set the fan speed to high.
  • "2" button: Press to set the fan speed to medium.
  • "1" button: Press to set the fan speed to low.
  • Power button (UU): Press to turn the fan off or on.
  • Light button (VV): Press and release immediately to turn the light on or off. Press and hold to dim or brighten the bulbs to the desired level and then release (the dimmer function is for Tungsten bulbs only).

Care and Cleaning

Make sure the power is off before cleaning your fan.

• Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
• Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing.
• You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a light application of shoe polish.
• You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.

Troubleshooting

Safety Information

1. To reduce the risk of electric shock, ensure the electricity has been turned off at the circuit breaker or fuse box before you begin.
2. All wiring must be in accordance with the National Electrical Code ANSI/NFPA 70-1999 and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
3. The outlet box and support structure must be securely mounted and capable of reliably supporting 35 lbs. (15.9 kg). Use only UL Listed outlet boxes marked "Acceptable for Fan Support of 35 lbs. (15.9 kg) or less."
4. The fan must be mounted with a minimum of 7 ft. (2.1 m) clearance from the trailing edge of the blades to the floor.
5. Do not operate the reversing switch while the fan blades are in motion. You must turn the fan off and stop the blades before you reverse the blade direction.
6. Do not place objects in the path of the blades.
7. To avoid personal injury or damage to the fan and other items, use caution when working around or cleaning the fan.
8. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL-listed and marked suitable for use with the model fan you are installing. Switches must be UL General Use Switches. Refer to the instructions packaged with the light kits and switches for proper assembly.
9. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.
10. All setscrews must be checked and retightened where necessary before installation.

To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation. Do not insert objects in the path of the blades.

Remove the rubber motor stops on the bottom of the fan before installing the blades or testing the motor.

To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked "Acceptable for fan support of 35 lbs. (15.9 kg) or less," and use the screws provided with the outlet box.

To avoid possible electrical shock, turn the electricity off at the main fuse box before wiring. If you feel you do not have enough electrical wiring knowledge or experience, contact a licensed electrician.

Electrical diagrams are for reference only. Optional use of any light kit shall be UL-listed and marked suitable for use with this fan.

To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part no. MR101D manufactured by Chungear Industrial Co., LTD.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

To view an instructional video on how to install this product:

1. Go to www.homedepot.com and enter either the Item or Model number, found in the top right corner of the cover of this instruction manual, in the search field.
2. Click on your product from the list of search results and click on the video link in the "Product Overview" section.
