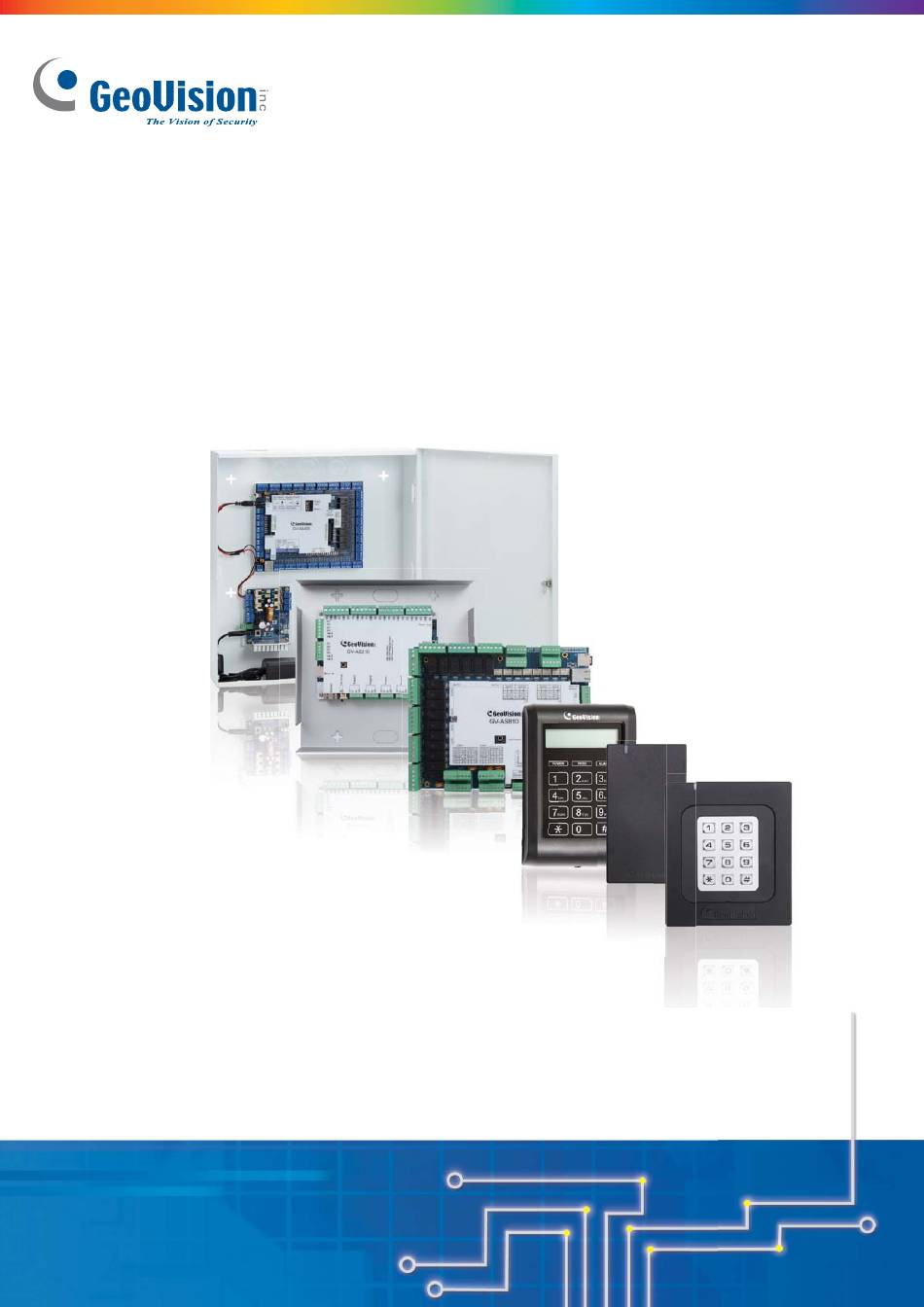

Quick Start Guide
GV-AS Controller
Thank you for purchasing GV-AS Controller (GV-AS100 / AS110 / AS120 / AS210 / AS400 / AS810). This guide
is designed to assist the new user in getting immediate results from the GV-AS100 / AS110 / AS120 / AS210 /
AS400 / AS810. For advanced information on how to use the GV-AS100 / AS110 / AS120 / AS210 / AS400 /
AS810, please refer to GV-AS Controller User's Manual on Software DVD.
ASHV100.110.120.210.400.810-QG-A
Advertisement
Table of Contents
Related Manuals for GeoVision GV-AS110
Summary of Contents for GeoVision GV-AS110
- Page 1 Quick Start Guide GV-AS Controller Thank you for purchasing GV-AS Controller (GV-AS100 / AS110 / AS120 / AS210 / AS400 / AS810). This guide is designed to assist the new user in getting immediate results from the GV-AS100 / AS110 / AS120 / AS210 / AS400 / AS810.
- Page 2 GeoVision. Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
-
Page 3: Table Of Contents
GV-AS Controller Quick Start Guide ................1 1. Basic Setup for GV-AS100 / 110 / 120 ..............1 1.1 GV-AS100 ......................1 1.2 GV-AS110 ......................2 1.3 GV-AS120 ......................3 2. Physical Wiring for GV-AS210 / 400 / 810 ..............4 2.1 GV-AS210 ...................... -
Page 4: Gv-As Controller Quick Start Guide
GV-AS Controller Quick Start Guide This guide lists the basic steps required to set up a GV-AS Controller. For detailed instructions, refer to the section number listed below each step. 1. Basic Setup for GV-AS100 / 110 / 120 This section covers the basic settings required to start running GV-AS100 / 110 / 120. For more settings, refer to 5. -
Page 5: Gv-As110
Connect AS110 to power using the supplied 12V DC adaptor. 2.2.5 Connecting the Power Programming the GV-AS110 Create an Enroll Card and a Delete Card to add and delete cards. For other settings, use the built-in keypad to type the commands. -
Page 6: Gv-As120
1.3 GV-AS120 Connect card readers (Optional) Connect AS120 to a reader through Wiegand interface. 3.2.1 Connecting a Wiegand Reader Connect input devices Connect AS120 to input devices (Ex: a push button to exit). 3.2.2 Connecting Input Devices Connect output devices GV-AS120 Connect AS120 to output devices (Ex: a door lock). -
Page 7: Physical Wiring For Gv-As210 / 400 / 810
2. Physical Wiring for GV-AS210 / 400 / 810 2.1 GV-AS210 Wiegand Connect card readers 4.2.1.A Wiegand Readers Connect AS210 to readers through Wiegand or RS485 RS-485 interface. 4.2.1.B RS-485 Readers Connect input devices Connect AS210 to input devices (Ex: a push button to exit). -
Page 8: Gv-As400
2.2 GV-AS400 Wiegand Connect card readers 5.2.1.A Wiegand Readers Connect AS400 to readers through Wiegand or RS485 RS-485 interface. 5.2.1.B RS-485 Readers Connect input devices Connect AS400 to input devices (Ex: a push button to exit), and set them as NO or NC. 5.2.2 Connecting Input Devices Connect output devices Connect AS400 to output devices (Ex: a door... -
Page 9: Gv-As810
2.3 GV-AS810 Wiegand Connect card readers 6.2.1.A Wiegand Readers Connect AS810 to readers through Wiegand or RS485 RS-485 interface. 6.2.1.B RS-485 Readers Connect input devices Connect AS810 to input devices (Ex: a push button to exit). 6.2.2 Connecting Input Devices Connect output devices Connect AS810 to output devices (Ex: a door lock). -
Page 10: Accessing The Web Interface Of Gv-As210 / 400 / 810
3. Accessing the Web Interface of GV-AS210 / 400 / 810 After connecting the required wires and cables for GV-AS210 / 400 / 810, access the Web interface of the GV-AS Controller to define the devices connected. The section numbers listed here refers to the GV-AS Controller User Manual. -
Page 11: Setting Gv-As Controller On Gv-Asmanager
4. Setting GV-AS Controller on GV-ASManager After setting up the Web interface, connect the GV-AS Controller to a GV-ASManager. Through GV-ASManager, you can set up the doors and enroll cards. The section numbers listed here refers to the GV-ASManager User Manual. Install GV-ASManager Install GV-ASManager from the supplied software DVD. -
Page 12: Optional Devices For Gv-As100 / 110 / 120
5. Optional Devices for GV-AS100 / 110 / 120 To access GV-AS100 / 110 / 120 on a network, an optional device GV-ASBox or GV-ASNet is required. GV-ASBox also supports connection with additional input devices, output devices and readers through Wiegand interface and RS-485 interface. GV-ASNet supports additional readers through RS-485 connection. -
Page 13: Physical Wiring Of Gv-Asbox And Gv-Asnet
5.1 Physical Wiring of GV-ASBox and GV-ASNet The section numbers listed here refers to the GV-AS Controller User Manual. Physical Wiring of GV-ASBox Physical Wiring of GV-ASNet Connect GV-AS100 / 110 / 120 Connect GV-AS100 / 110 / 120 Connect GV-ASBox with GV-AS100 / 110 / 120. Connect GV-ASNet with GV-AS100 / 110 / 120. -
Page 14: Accessing The Web Interface Of Gv-As100 / 110 / 120
5.2 Accessing the Web Interface of GV-AS100 / 110 / 120 The section numbers listed here refers to the GV-AS Controller User Manual. Set network configurations Assign a static IP address or set up DDNS to map a dynamic IP address to a static domain name.
