ASROCK Rack B650D4U3-2L2Q/BCM Quick Installation Manual

*15G065344000AK*
P/N: 15G065344000AK V1.0
Quick Installation Guide
B650D4U3-2L2Q/BCM
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before installing server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place the
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before handling the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever uninstall any component, place it on a grounded anti-static pad or in the bag that
comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

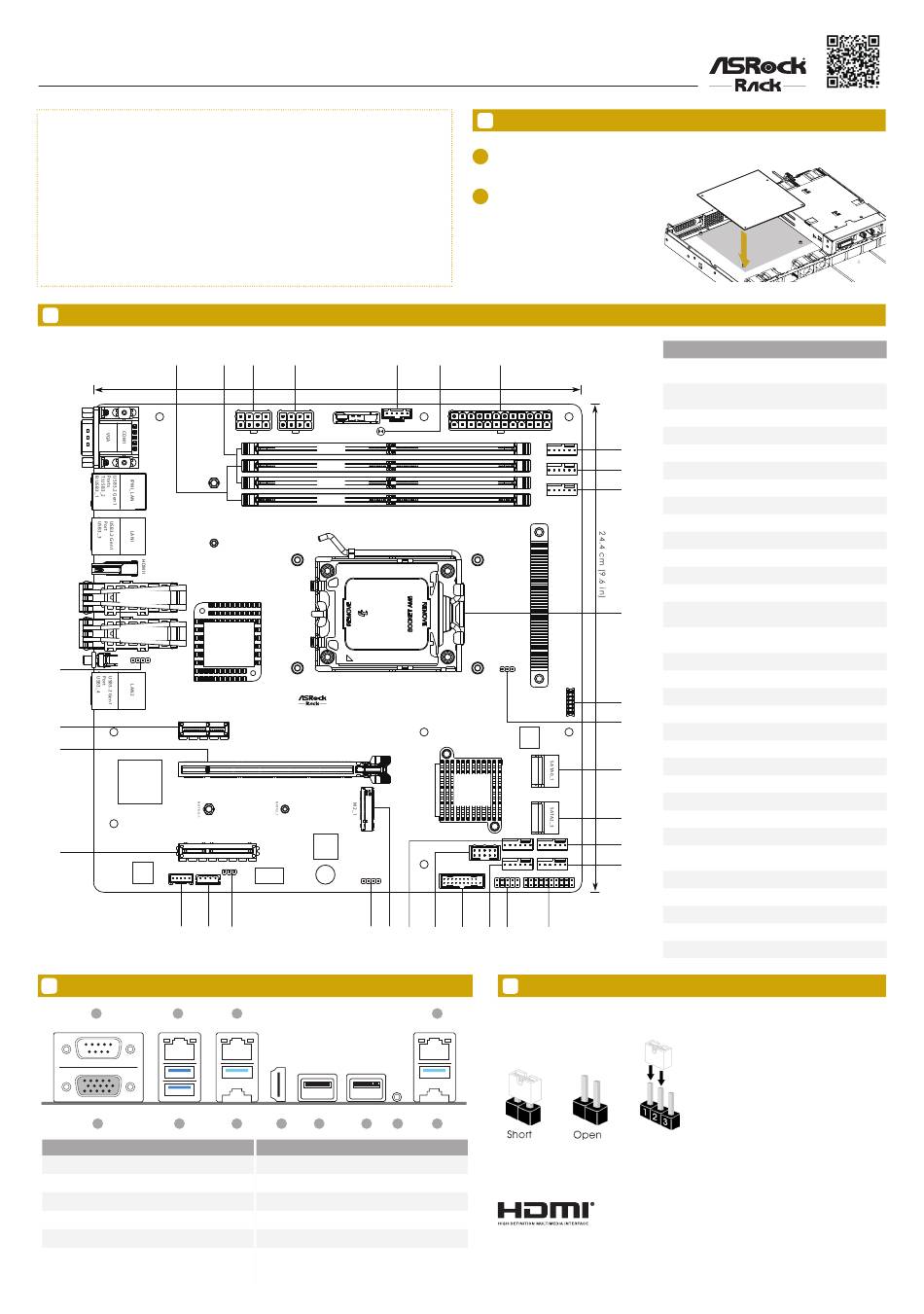

2 Motherboard Layout
1
SFP+1 SFP_CON1
SFP+2 SFP_CON2
UID1
LED_SFP+1_2
32
31
30
ASPEED
AST2600
29
BMC_SMB1 IPMB1
BMC
ROM
28 27
3 I/O Panel
2 4
1 3
No. Description
1 VGA Port (VGA)
2 Serial Port (COM1)
3 USB 3.2 Gen1 Ports (USB3_1_2)
4 LAN RJ-45 Port (IPMI_LAN)
5 USB 3.2 Gen1 Port (USB3_3)
6 1G LAN RJ-45 Port (LAN1, shared NIC)
2 3 4
24.4 cm (9.6 in)
PSU_SMB1
BAT1
ATX12V1 ATX12V2
CLRCMOS1
DDR5_B1
DDR5_B2
DDR5_A1
DDR5_A2
CPU1
BCM57502
PCIE7
B650D4U3-2L2Q/BCM
PCIE6
PCIE4
Super
I/O
CHASSIS_ID0
SPEAKER1
Dr. Debug BUZZER1
26 25 24
6
5 7 8 9
No. Description
7 HDMI Port (HDMI1)
8 25G SFP28 Port (SFP+1, shared NIC)
9 25G SFP28 Port (SFP+2, shared NIC)
10 UID Switch (UID1)
11 USB 3.2 Gen1 Port (USB3_4)
12 1G LAN RJ-45 Port (LAN2)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
5 6 7
ATXPWR1
FAN1
FAN7
FAN6
PWM_CFG1
TPM_BIOS_PH1
BIOS
ROM
AMD
B650
FAN2 FAN4
USB_1_2
FAN5 FAN3
USB3_5_6
PANEL1 AUX_PANEL1
23 22 21 20 19 18
4 Jumper Cap On/Off
12
10 11
www.asrockrack.com
No. Description
2 x 288-pin DDR5 DIMM Slots
1
(DDR5_A2, DDR5_B2)
2 x 288-pin DDR5 DIMM Slots
2
(DDR5_A1, DDR5_B1)
3 ATX 12V Power Connector (ATX12V1)
4 ATX 12V Power Connector (ATX12V2)
8
5 PSU SMBus Header (PSU_SMB1)
9 6 Clear CMOS Pad (CLRCMOS1)
7 ATX Power Connector (ATXPWR1)
10
8 System Fan Connector (FAN1)
9 System Fan Connector (FAN7)
10 System Fan Connector (FAN6)
11 AMD Socket AM5 (LGA1718)
12 SPI TPM Header (TPM_BIOS_PH1)
13 PWM Configuration Header (PWM_CFG1)
SATA3 Connectors
11
14
(SATA_1)(Upper), (SATA_0)(Lower)
SATA3 Connectors
15
(SATA_3)(Upper), (SATA_2)(Lower)
16 System Fan Connector (FAN4)
17 System Fan Connector (FAN3)
18 Auxiliary Panel Header (AUX_PANEL1)
12
19 System Panel Header (PANEL1)
13
20 System Fan Connector (FAN5)
21 USB 3.2 Gen1 Header (USB3_5_6)
22 USB 2.0 Header (USB_1_2)
14
23 System Fan Connector (FAN2)
24 M.2 Socket (M2_1) (Type 2242/2280)
15
25 Speaker Header (SPEAKER1)
26 Chassis ID Jumper (CHASSIS_ID0)
16
Intelligent Platform Management Bus Header
27
17 (IPMB1)
28 BMC SMBus Header (BMC_SMB1)
29 PCI Express 4.0 x4 Card Slot (PCIE4)
30 PCI Express 5.0 x16 Card Slot (PCIE6)
31 PCI Express 4.0 x1 Card Slot (PCIE7)
32 Front LAN LED Connector (LED_SFP+1_2)
When the jumper cap is placed on the pins, the
jumper is "Short". If no jumper cap is placed
on the pins, the jumper is "Open".
The illustration shows a 3-pin jumper whose
pin1 and pin2 are "Short" when a jumper cap
is placed on these 2 pins.
The terms HDMI® and HDMI High-Definition Multimedia Interface,
and the HDMI logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
B650D4U3-2L2Q/BCM
