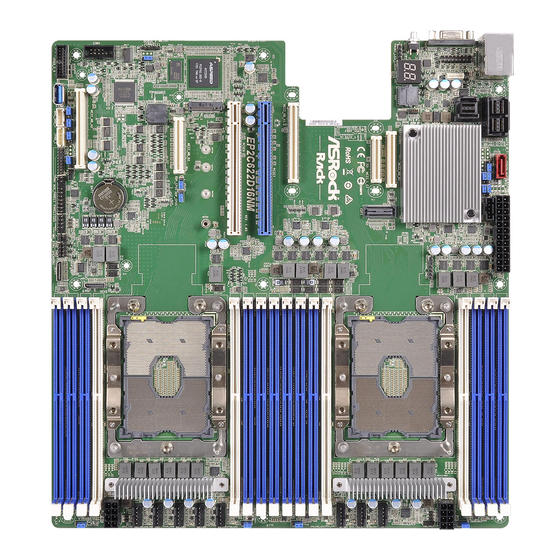

EP2C622D16NM

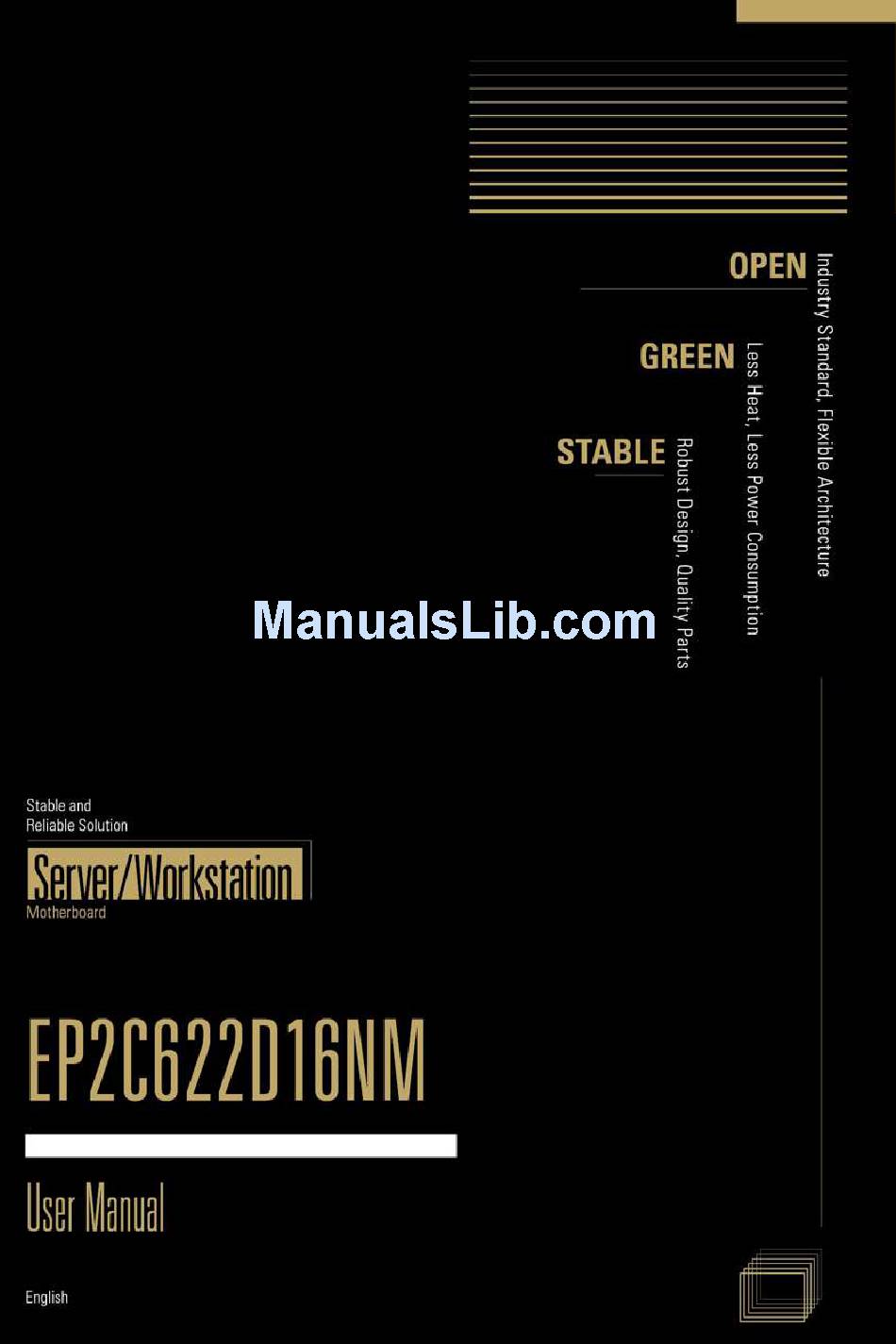

User Manual

Version 1.0
Published October 2017
Copyright©2017 ASRock Rack INC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP2C622D16NM and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK Rack EP2C622D16NM

Summary of Contents for ASROCK Rack EP2C622D16NM

  • Page 1: User Manual

    EP2C622D16NM User Manual Version 1.0 Published October 2017 Copyright©2017 ASRock Rack INC. All rights reserved.

  • Page 2: Copyright Notice

    In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of...
  • Page 3 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you may contact your dealer for further information. ASRock Rack Incorporation 6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,...

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installing the CPU and Heatsink Installation of Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Jumper Setup Onboard Headers and Connectors Dr.
  • Page 5 3.1.2 Navigation Keys Main Screen Advanced Screen 3.3.1 CPU Configuration 3.3.2 Memory Configuration 3.3.3 Chipset Configuration 3.3.4 Storage Configuration 3.3.5 ACPI Configuration 3.3.6 USB Configuration 3.3.7 Super IO Configuration 3.3.8 Serial Port Console Redirection 3.3.9 H/W Monitor 3.3.10 Runtime Error Logging 3.3.11 Intel SPS Configuration 3.3.12 Intel(R) VMD Technology 3.3.13 Intel(R) Virtual RAID on CPU...
  • Page 6 3.7.2 BMC Network Configuration Exit Screen Chapter 4 Software Support Install Operating System Support CD Information 4.2.1 Running The Support CD 4.2.2 Drivers Menu 4.2.3 Utilities Menu 4.2.4 Contact Information Chapter 5 Troubleshooting Troubleshooting Procedures Technical Support Procedures Returning Merchandise for Service...

  • Page 7: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. You may find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

  • Page 8: Specifications

    1.2 Specifications EP2C622D16NM MB Physical Status Form Factor SSI EEB Dimension 12'' x 13'' (30.5 cm x 33.0 cm) Processor System Intel® Xeon® Scalable Processors Socket Dual Socket P (3647) Chipset Intel® C622 System Memory Capacity 16 DIMM slots Type - 6 Channel memory technology...
  • Page 9 256Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing - SystemTemperature Sensing - CPU/Rear/Front Fan Tachometer...
  • Page 10 Support OS Microsoft® Windows® - Server 2012 R2 (64 bit) - Server 2016 (64 bit) Linux® - CentOS 6.8 (64 bit) / 7. 2 (64 bit) (only supports AHCI mode) - SUSE Enterprise Linux Server 11 SP4 (64 bit) / 12 SP1 (64 bit) - FreeBSD 11 (64 bit) - Fedora Core 24 (64 bit) - Ubuntu 16.04/15.10 (64 bit)

  • Page 11: Unique Features

    POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 12: Motherboard Layout

    DDR4_E1 (64 bit, 288-pin module, Blue) MEZZ_MB_A1 DDR4_F1 (64 bit, 288-pin module, Blue) DDR4_I1 (64 bit, 288-pin module, Blue) PCIE7 (Blue) DDR4_H1 (64 bit, 288-pin module, Blue) EP2C622D16NM DDR4_G1 (64 bit, 288-pin module, Blue) PCIE6 DDR4_G2 (64 bit, 288-pin module, White) (White) FRNT_FAN1 FRNT_FAN2...
  • Page 13 EP2C622D16NM Description Mini-SAS HD Connector (SSATA_0_3)** Mini-SAS HD Connector (SATA_0_7) PMBUS Mode Jumper (PMBUS_SEL_ALT1) SATA DOM Power Jumper (SATAPWR1) SATA DOM Connector, Red (SSATA_4)** PMBUS Mode Jumper (PMBUS_SEL_CLK1) NCSI Mode Jumper (NCSI_SEL1) ATX Power Connector (ATXPWR1) PSU SMBus (PSU_SMB1) PMBUS Mode Jumper (PMBUS_SEL_DAT1)
  • Page 14 Description Speaker Header (SPEAKER1) System Panel Header (PANEL1) Auxiliary Panel Header (AUX_PANEL1) Thermal Sensor Header (TR1) TPM Header (TPM1) Intelligent Platform Management Bus header (IPMB1) Chassis ID1 Jumper (CHASSIS_ID1) BMC SMBus Header (BMC_SMB_1) Vertical Type A USB 3.0 (USB3_5) BMC SMBus Header 1 (BMC_SMB1) Chassis ID2 Jumper (CHASSIS_ID2) Chassis ID0 Jumper (CHASSIS_ID0) Mezzanine Slot (MEZZ_MB_A2)***...

  • Page 15: Onboard Led Indicators

    EP2C622D16NM 1.5 Onboard LED Indicators DDR4_C1 (64 bit, 288-pin module, Blue) ATXPWR1 DDR4_B1 (64 bit, 288-pin module, Blue) DDR4_A1 (64 bit, 288-pin module, Blue) SB_PWR1 DDR4_A2 (64 bit, 288-pin module, White) Intel C622 UID1 BIOS Debug MEZZ_MB_B1 MEZZ_1_C1 RFAN_LED3 RFAN_LED4...
  • Page 16 Item Status Description SB_PWR1 Green STB PWR ready RFAN_LED1 Amber Rear_FAN1 failed RFAN_LED2 Amber Rear_FAN2 failded CPU_FAN_LED1 Amber CPU1_FAN failed FFAN_LED1 Amber FRNT_FAN1 failed FFAN_LED2 Amber FRNT_FAN2 failed FFAN_LED3 Amber FRNT_FAN3 failed FFAN_LED4 Amber FRNT_FAN4 failed CPU_FAN_LED2 Amber CPU2_FAN failed BMC_LED1 Green BMC heartbeat LED...

  • Page 17: I/O Panel

    EP2C622D16NM 1.6 I/O Panel No. Description No. Description USB 3.0 Ports (USB3_1_2) VGA Port (VGA1) LAN RJ-45 Port (IPMI_LAN1)* UID Switch (UID) LAN Port LED Indications *There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

  • Page 18: Block Diagram

    1.7 Block Diagram...

  • Page 19: Chapter 2 Installation

    This is a SSI EEB form factor (12” x 13”, 30.5 cm x 33.0 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. EP2C622D16NM is a dual socket motherboard that supports Intel® Xeon® Scalable Processors. Please install a primary processor (BootStrap Processor) into “CPU1” socket and then install a non-Primary Processor (Application Processors) into “CPU2”...

  • Page 20: Installing The Cpu And Heatsink

    2.3 Installing the CPU and Heatsink 1. Before you insert the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 21 EP2C622D16NM 1. Before you installed the heatsink, you need to spray thermal interface material between the CPU and the heatsink to improve heat dissipation. 2. Illustration in this documentation are examples only. Heatsink or fan cooler type may differ.
  • Page 23 EP2C622D16NM Tighten the two Corner Plunger to 12 IN.LB. Two turns at a time. Tighten the two Middle Nuts to 12 IN.LB. Two turns at a time.

  • Page 24: Installation Of Memory Modules (Dimm)

    2.4 Installation of Memory Modules (DIMM) This motherboard provides sixteen 288-pin DDR4 (Double Data Rate 4) DIMM slots in two groups, and supports Six and Dual Channel Memory Technology. Capacity CPU1 CPU2 DDR4_A1, B1, C1, D1, E1, F1 (Blue) DDR4_G1, H1, I1, J1, K1, L1 (Blue) 256GB / 512GB DDR4_A2, D2 (White)
  • Page 25 EP2C622D16NM The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

  • Page 26: Recommended Memory Configurations

    Recommended Memory Configurations A single memory module should be installed in the BLUE socket which is nearest to the CPU. 1 CPU Configuration CPU1 1 DIMM 2 DIMMS 4 DIMMS 6 DIMMS 8 DIMMS 2 CPU Configuration CPU1 1 DIMM 2 DIMMS 4 DIMMS 8 DIMMS...

  • Page 27: Expansion Slots (Pci Express Slots)

    EP2C622D16NM 2.5 Expansion Slots (PCI Express Slots) There are 2 PCI Express slots on this motherboard. PCIE slot: PCIE6 (PCIE 3.0 x16 slot, from CPU 2) is used for PCI Express x16 lane width cards. PCIE7 (PCIE 3.0 x16 slot, from CPU 1) is used for PCI Express x16 lane width cards.

  • Page 28: Jumper Setup

    2.6 Jumper Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins.
  • Page 29 EP2C622D16NM Chassis ID0 Jumper (3-pin CHASSIS_ID0) (see p.6, No. 45) Chassis ID1 Jumper (3-pin CHASSIS_ID1) (see p.6, No. 40) Chassis ID2 Jumper (3-pin CHASSIS_ID2) (see p.6, No. 44) Board Level SKU (Default) Reserved for system level Chassis ID0 Jumper (3-pin CHASSIS_ID0) (see p.6, No.
  • Page 30 Chassis ID0 Jumper (3-pin CHASSIS_ID0) (see p.6, No. 45) Chassis ID1 Jumper (3-pin CHASSIS_ID1) (see p.6, No. 40) Chassis ID2 Jumper (3-pin CHASSIS_ID2) Reserved for system level Reserved for system level (see p.6, No. 44) SATA DOM Power Jumper (3-pin SATAPWR1) (see p.6, No.

  • Page 31: Onboard Headers And Connectors

    EP2C622D16NM 2.7 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header...
  • Page 32 Auxiliary Panel Header This header supports multiple (18-pin AUX PANEL_1) functions on the front panel, (see p.6, No. 36) including the front panel SMB, internet status indicator and chassis intrusion pin. A. Front panel SMBus connecting pin (6-1 pin FPSMB) This header allows you to connect SMBus (System Management Bus) equipment.
  • Page 33 EP2C622D16NM Mini-SAS HD Connectors These connectors (SATA_0_7) support MiniSAS-to- (see p.6, No. 2) SATA data cables for SATA_0_7 (SSATA_0_3) internal storage devices (see p.6, No. 1) with up to 6.0 Gb/s data transfer rate. SSATA_0_3 USB 3.0 Connector (USB3_5) (see p.6, No. 42) IntA_PA_D+ USB 3.0 Header...
  • Page 34 3-Pin CPU fan, (see p.6, No. 27) please connect it to Pin 1-3. *For more details, please refer to the Cooler QVL list on the ASRock Rack website. ATX Power Connector This motherboard provides a (24-pin ATXPWR1) 24-pin ATX power connector.
  • Page 35 EP2C622D16NM ATX 12V Power This motherboard provides Connectors two 8-pin ATX 12V power (8-pin ATX12V1) connectors. +12V2 (see p.6, No. 13) (8-pin ATX12V2) (see p.6, No. 28) TPM Header This connector supports (17-pin TPM1) Trusted Platform Module (see p.6, No. 38)
  • Page 36 Thermal Sensor Header Please connect the thermal (3-pin TR1) sensor cable to either pin 1-2 (see p.6, No. 37) or pin 2-3 and the other end to the device which you wish to monitor its temperature. Front VGA Header Please connect either end (15-pin FRNT_VGA1) of VGA_2X8 cable to VGA (see p.6, No.

  • Page 37: Dr. Debug

    EP2C622D16NM 2.8 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description Please check if the CPU is installed correctly and then clear CMOS.

  • Page 38: Unit Identification Purpose Led/Switch

    2.9 Unit Identification purpose LED/Switch With the UID button, You are able to locate the server you’re working on from behind a rack of servers. Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID1) the front/rear UID blue LED indicator will be truned on.

  • Page 39: M.2_Ssd (Ngff) Module Installation Guide

    EP2C622D16NM 2.11 M.2_SSD (NGFF) Module Installation Guide The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The M.2_SSD (NGFF) Socket 3 can accommodate either a M.2 SATA3 6.0 Gb/s module or a M.2 PCI Express module up to Gen3 x4 (32 Gb/s).
  • Page 40 Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.

  • Page 41: Chapter 3 Uefi Setup Utility

    EP2C622D16NM Chapter 3 UEFI Setup Utility 3.1 Introduction Th is section explains how to use the UEFI SETUP UTILITY to confi gure your system. Th e UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer.

  • Page 42: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 43: Main Screen

    EP2C622D16NM 3.2 Main Screen Once you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows you to set the system time and date.

  • Page 44: Advanced Screen

    3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, DRAM Configuration, Chipset Configuration, Storage Configuration, ACPI Configura- tion, USB Configuration, Super IO Configuration, Serial Port Console Redirection, H/ W Monitor, Runtime Error Logging, Intel SPS Configuration, Intel(R) VMD Technology, Intel(R) Virtual RAID on CPU and Instant Flash.

  • Page 45: Cpu Configuration

    EP2C622D16NM 3.3.1 CPU Configuration Intel SpeedStep Technology Intel SpeedStep technology allows processors to switch between multiple frequencies and voltage points for better power saving and heat dissipation. CPU turbo ratio can be fixed when Intel SpeedStep Technology set Disabled and Intel Turbo Boost Technology set En- abled.

  • Page 46: Intel Virtualization Technology

    Limit is exceeded. Short Duration Power Limit Configure Package Power Limit 2 in watts. When the limit is exceeded, the CPU ratio will be lowered immediately. A lower limit can protect the CPU and save power, while a higher limit may improve performance. Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved.
  • Page 47 EP2C622D16NM CPU C6 State Support Enable C6 deep sleep state for lower power consumption. AES-NI Use this item to enable or disable AES-NI support. CPU Thermal Throttling Enable CPU internal thermal control mechanisms to keep the CPU from overheating.

  • Page 48: Memory Configuration

    3.3.2 Memory Configuration Enforce POR Enable to enforce POR restrictions for DDR4 frequency and voltage programming. DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically. Numa Use this item to enable or disable Non Uniform Memory Access (NUMA). ECC Support Use this item to enable or disable DDR ECC Support.
  • Page 49 EP2C622D16NM Mirror Mode Mirror Mode will set entire 1LM/2LM memory in system to be mirrored, consequently reducing the memory capacity by half. Mirror Enable will disable XPT Prefetch. Memory Rank Sparing Enable or disable Memory Rank Sparing.

  • Page 50: Chipset Configuration

    3.3.3 Chipset Configuration MMCFG Base Use this item to select MMCFG Base. MMIO High Base Use this item to select MMIO High Base. MMIO High Size Use this item to select MMIO High Size. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding).

  • Page 51: Onboard Lan

    EP2C622D16NM Onboard LAN This allows you to enable or disable the Onboard LAN feature. VT-d Intel Virtualization Technology for Directed I/O helps your virtual machine monitor bet- ter utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance.

  • Page 52: Spread Spectrum

    OCU1 ASPM Support This option enables or disables the ASPM support for all CPU downstream devices. OCU2 Link Speed Configure PCIE Link Speed. OCU2 ASPM Support This option enables / disables the ASPM support for CPU downstream devices. SR-IOV Support If system has SR-IOV capable PCIe Devices, this option Enables or Disables Single Root IO Virtualization Support.

  • Page 53: Storage Configuration

    EP2C622D16NM 3.3.4 Storage Configuration Hard Disk S.M.A.R.T. Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) feature. Configuration options: [Disabled] and [Enabled]. SATA Storage Configuration SATA Controller Use this item to enable or disable SATA Controllers.
  • Page 54 sSATA/M.2_SATA Mode Selection Identify the sSATA port is connected to Solid State Drive or Hard Disk Drive. Press <Ctrl+I> to enter RAID ROM during UEFI POST process. sSATA Aggressive Link Power Management Use this item to enable or disable SALP.

  • Page 55: Acpi Configuration

    EP2C622D16NM 3.3.5 ACPI Configuration PCIE Devices Power On Use this item to enable or disable PCIE devices to turn on the system from the power-soft- off mode. Ring-In Power On Use this item to enable or disable Ring-In signals to turn on the system from the power- soft-off mode.

  • Page 56: Usb Configuration

    3.3.6 USB Configuration Legacy USB Support Use this option to enable or disable legacy support for USB devices. The default value is [Enabled]. PS/2 Simulator Identify the sSATA port is connected to Solid State Drive or Hard Disk Drive. Press <Ctrl+I>...

  • Page 57: Super Io Configuration

    EP2C622D16NM 3.3.7 Super IO Configuration Serial Port 1 Configuration Use this item to set parameters of Serial Port 1 (COM1). Serial Port Use this item to enable or disable the serial port. Change Settings Use this item to select an optimal setting for Super IO device.

  • Page 58: Serial Port Console Redirection

    3.3.8 Serial Port Console Redirection COM1 Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled, you can select a COM Port to be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how your computer and the host computer to which you are connected exchange information.

  • Page 59: Flow Control

    EP2C622D16NM Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. The options include [9600], [19200], [38400], [57600] and [115200].

  • Page 60: Console Redirection

    computer and the host computer to which you are connected exchange information. Legacy Serial Redirection Port Use this item to select a COM port to display redirection of Legacy OS and Legacy OPROM Messages. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console Redirection Use this option to enable or disable Console Redirection.

  • Page 61: H/W Monitor

    EP2C622D16NM 3.3.9 H/W Monitor In this section, it allows you to monitor the status of the hardware on your system, includ- ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 62: Watch Dog Timer

    FRNT_FAN 2 This allows you to set the front fan 2’s speed. The default value is [Smart Fan]. FRNT_FAN 3 This allows you to set the front fan 3’s speed. The default value is [Smart Fan]. FRNT_FAN 4 This allows you to set the front fan 4’s speed. The default value is [Smart Fan]. Smart Fan Control This allows you to set the Smart fan’s level speed.

  • Page 63: Runtime Error Logging

    EP2C622D16NM 3.3.10 Runtime Error Logging WHEA Support Use this item to enable or disable Windows Hardware Error Architecture. System Error Use this item to enable or disable System Error feature. When it is set to [Enabled], you can configure Memory Error and PCIE Error log features.
  • Page 64 PCIE Uncorrected Error Enable Use this item to enable or disable PCIe Uncorrectable errors. PCIE Fatal Error Enable Use this item to enable or disable PCIe Ftal errors.

  • Page 65: Intel Sps Configuration

    EP2C622D16NM 3.3.11 Intel SPS Configuration SPS screen displays the Intel SPS Configuration information, such as Operational Firmware Version and Firmware State.

  • Page 66: Intel(R) Vmd Technology

    3.3.12 Intel(R) VMD Technology Press <Enter> to bring up the Intel(R) VMD for Volume Management Device Configuration menu. Intel(R) VMD for Volume Management Device on Socket 1 Intel(R) VMD for Volume Management Device Technology Use this item to enable or disable Intel(R) Volume Management Device Technology in this Stack.

  • Page 67: Intel(R) Virtual Raid On Cpu

    EP2C622D16NM 3.3.13 Intel(R) Virtual RAID on CPU This formset allows the user to manage Intel(R) Virtual RAID on CPU.

  • Page 68: Instant Flash

    3.3.14 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems ® first like MS-DOS or Windows . Just save the new UEFI file to your USB flash drive, floppy disk or hard drive and launch this tool, then you can update your UEFI only in a few clicks without preparing an additional floppy diskette or other compli- cated flash utility.

  • Page 69: Security

    EP2C622D16NM 3.4 Security In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 70: Key Management

    3.4.1 Key Management In this section, expert users can modify Secure Boot Policy variables without full authenti- cation. Provision Factory Defaults Allow to provision factory default Secure Boot keys when System is in Setup Mode. Install Default Secure Boot Keys Please install default secure boot keys if it’s the first time you use secure boot.

  • Page 71: Authorized Signatures

    EP2C622D16NM d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Key Exchange Keys Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded)
  • Page 72 a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Default, External, Mixed, Test Authorized TimeStamps Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin)

  • Page 73: Boot Screen

    EP2C622D16NM 3.5 Boot Screen In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 Use this item to set the system boot order. Boot Option Filter This option controls Legacy/UEFI ROMs priority.
  • Page 74 AddOn ROM Display Use this option to adjust AddOn ROM Display. If you enable the option “Full Screen Logo” but you want to see the AddOn ROM information when the system boots, please select [Enabled]. Configuration options: [Enabled] and [Disabled]. The default value is [Enabled].

  • Page 75: Csm Parameters

    EP2C622D16NM 3.5.1 CSM Parameters Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows Server 2012 R2 or later ver- sions 64-bit UEFI and all of your devices support UEFI, you may also disable CSM for faster boot speed.
  • Page 76 PCIE6 Slot OpROM Use this item to select slot storage and Network Option ROM policy. In Auto option, the default is Disabled with NVMe device, but it is Legacy with other devices. (This item can't select Video Option ROM policy.) PCIE7 Slot OpROM Use this item to select slot storage and Network Option ROM policy.

  • Page 77: Event Logs

    EP2C622D16NM 3.6 Event Logs Change Smbios Event Log Settings This allows you to configure the Smbios Event Log Settings. When entering the item, you will see the followings: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.

  • Page 78: View Smbios Event Log

    entries which utilize a multiple-event counter. The value ranges from 0 to 99 minutes. View Smbios Event Log Press <Enter> to view the Smbios Event Log records. All values changed here do not take effect until computer is restarted.

  • Page 79: Server Mgmt

    EP2C622D16NM 3.7 Server Mgmt Wait For BMC Wait For BMC response for specified time out. In PILOTII, BMC starts at the same time when BIOS starts during AC power ON. It takes around 30 seconds to initialize Host to BMC interfaces.

  • Page 80: System Event Log

    3.7.1 System Event Log SEL Components Change this to enable ro disable all features of System Event Logging during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL. Log EFI Status Codes Use this item to disable the logging of EFI Status Codes or log only error code or only progress or both.

  • Page 81: Bmc Network Configuration

    EP2C622D16NM 3.7.2 BMC Network Configuration Lan Channel (Failover) Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP. If you prefer using a static IP address, toggle to [Yes], and the changes take effect after the system reboots. The default value is [No].
  • Page 82 The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support website at: http://www.asrockrack.com/support/ipmi.asp...

  • Page 83: Exit Screen

    EP2C622D16NM 3.8 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY.

  • Page 84: Chapter 4 Software Support

    4.2.4 Contact Information If you need to contact ASRock Rack or want to know more about ASRock Rack, welcome to visit ASRock Rack’s website at http://www.ASRockRack.com; or you may contact your...

  • Page 85: Chapter 5 Troubleshooting

    EP2C622D16NM Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot your system. Always unplug the power cord before adding, removing or changing any hardware com- ponents. Failure to do so may cause physical injuries to you and damages to motherboard components.
  • Page 86 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether your power supply provides adaquate and stable power. Other problems... 1. Try searching keywords related to your problem on ASRock Rack’s FAQ page: http://www.asrockrack.com/support...

  • Page 87: Technical Support Procedures

    EP2C622D16NM 5.2 Technical Support Procedures If you have tried the troubleshooting procedures mentioned above and the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Your contact information 2. Model name, BIOS version and problem type.

Table of Contents
