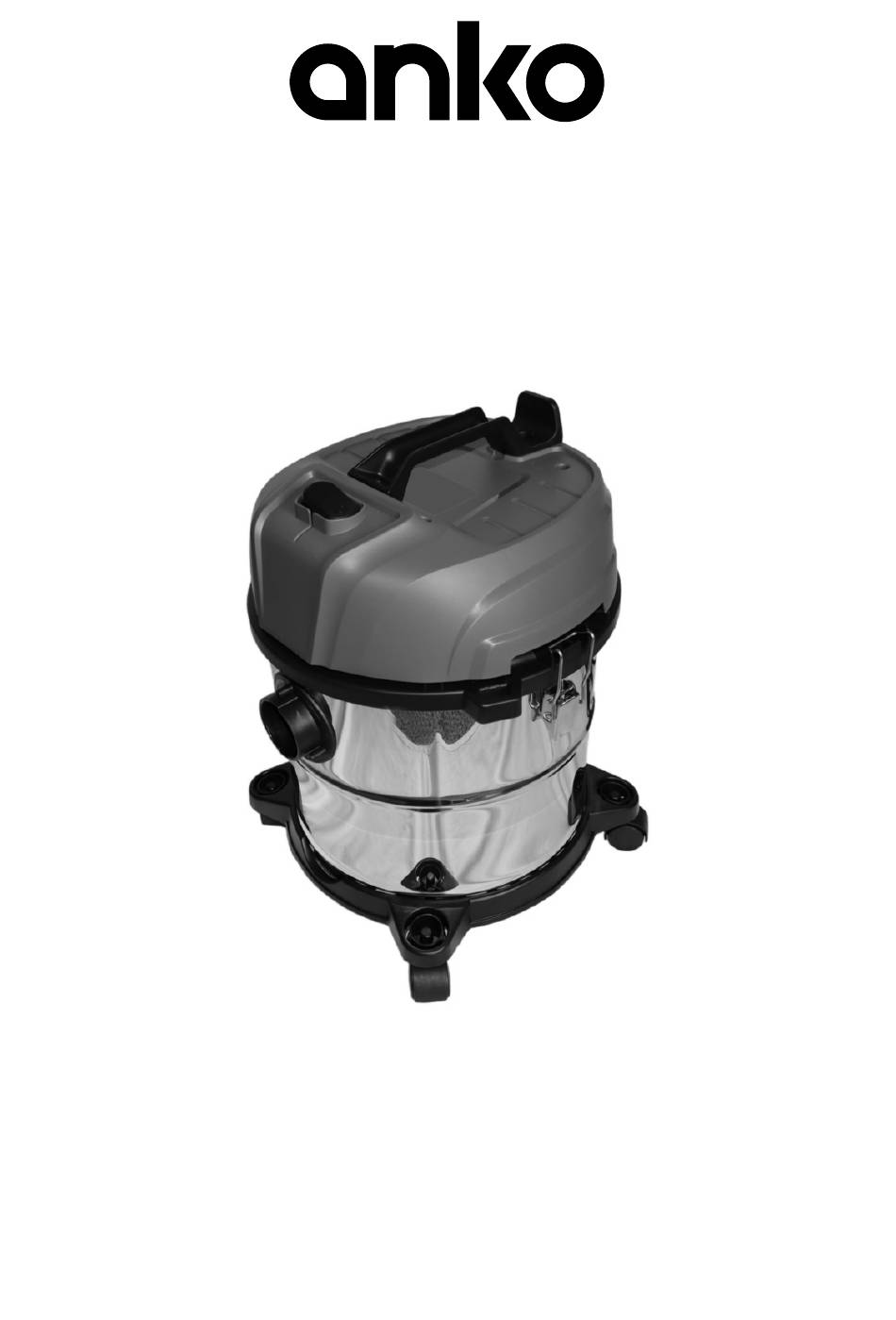

Wet and Dry Vacuum Cleaner
Model No.: YLW6364-20L
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If the Hose, Floor Head, or any Accessories should fail during use, please call customer service for an immediate
replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us.
For Household Use Only
Advertisement
Table of Contents
Related Manuals for anko YLW6364-20L
Summary of Contents for anko YLW6364-20L
- Page 1 Wet and Dry Vacuum Cleaner For Household Use Only Model No.: YLW6364-20L Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head, or any Accessories should fail during use, please call customer service for an immediate replacement.
- Page 2 Page 2 of 24...
-
Page 3: Table Of Contents
Warnings .................. 4 Safety Direction ............... 4 Transporting your Vacuum ............ 6 Components ................7 Side Clamps................8 Castor Wheels Assembly ............8 Fitting Flexible Hose ............... 9 Vacuum Function ..............9 Blower Function ..............10 Floor Head Inserts ............. 10 Tubes and Accessories ............. -
Page 4: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smell, smoke, is dropped or damaged in any manner or any breakage is found during operation. For electrical safety, any repairs to the product must be performed by a qualified electrical person only, or the product must be disposed of.
-
Page 6: Transporting Your Vacuum
DO Keep all openings free of dust, lint. hair, and anything that may reduce airflow. DO use extra care when vacuuming on stairs. DO keep your work area well lit. DO store your appliance indoors in a cool. dry area. DO ensure children and babies cannot play with plastic bags or any packaging materials. -
Page 7: Components
Components Carry Handle Floor Head Air Outlet / Hose Connection (at rear) Extension Tubes x 2 Power Cord Suction Relieve Valve Side Clamp x 2 Hose Handle Hose Crevice / Brush Tool Castor Wheels Dust Canister Hose Coupling Suction Inlet / Hose Connection Hard Floor and Carpet Inserts for Floor Head Power On –... -
Page 8: Side Clamps
Side Clamps To remove the Upper Motor Housing from the Lower Dust Canister, the two side clamps need to be unlatched and lifted away from the clamping blocks. To do this, grasp the lower section of the clamp lever and lift outward and up then drop down as shown. -
Page 9: Fitting Flexible Hose
Take one of the castor wheels and align the metal pin up with one of the holes in the base surround as shown then push down hard until the metal pin is fully inserted. Repeat for the other three castor wheels and then turn the duct canister back over. -
Page 10: Blower Function
To remove the flexible hose from the vacuum cleaner, rotate the hose coupling anticlockwise to unlatch, and then pull the coupling straight out. Blower Function This can be used for lightly blowing debris off a work bench etc. NOTE: This is not an Air Compressor so should not be used as such. Fully insert the coupling end of the vacuum cleaner hose into the Blower Connector hole on the opposite side to the Vacuum Connector Hole. - Page 11 If required, to assist easier removal of the inserts, hook your finger around one of the crossbars, and whilst pushing one of the side clips across, pull in the insert to lever it out off the floor head as shown. To fit the other insert, align the clips with the slots in the floor head and push the insert all the way in until the insert locks in place.
-
Page 12: Tubes And Accessories
Tubes and Accessories Take the two straight tubes and insert the small end of the tube without the tool holder attached into the larger end of the tube with the tool holder attached. Insert the hose handle into the upper large end of the tube. Insert the lower smaller end of the tube into the Floor Head. -
Page 13: Power And Power Cord
Power and Power Cord Before using the appliance, ensure the power cord is fully unwound. • Plug into the power point and switch on. • Press the (I) On button to start the motor. • Press the (O) Off button to Turn Off •... -
Page 14: Operation
10 Operation 10.1 Using as a Dry Vacuum Cleaner When using to vacuum up dry debris, both the black foam filter and the large canister filter needs to be fitted. 10.2 Using as a Wet Vacuum Cleaner When using to vacuum up liquids, only the black foam filter must be fitted. The large canister filter must be removed. - Page 15 IMPORTANT: This Product can be used for vacuuming up small liquid spills only. It is NOT designed to be used as a pump to empty water containers, pits, sinks, or the like. The Float Post has a small float inside. (image on the right shown without the black filter fitted for clarity).
-
Page 16: Safety Devices Operation
11 Safety Devices Operation NOTE: The motor has an overheating protection device built in. It will automatically switch off power to the motor if it overheats. e.g., from blocked nozzles, a full Dust Canister, or uncleaned and blocked filters. If this happens, turn off the vacuum cleaner and unplug from the power socket, clean blockage and / or filters and allow to rest for at least 60 minutes which should be enough time for the motor to cool down. -
Page 17: User Maintenance
Lift and place the clamp back on the clamp blocks, and then push the clamp • lever inward to the vacuum cleaner body until it snaps closed. NOTE: It is important that the Clamp Blocks on the side of the motor housing are properly aligned with the Clamps so as to prevent excessive stress on the clamps. -
Page 18: Black Foam Filter
13.1.1 Black Foam Filter To remove the Black Foam Filter, remove the top motor housing from the dust canister as described previously. Flip the motor housing over so that it is upside down. Rotate the locking plate anticlockwise to unlock and lift up to remove. Remove the Black Foam Filter by sliding it off the centre post. -
Page 19: Large Dust Canister Filter
13.1.2 Large Dust Canister Filter To clean the large dust canister filter, remove it from the top of the dust canister and just tap the edge of the filter on a hard surface to dislodge any dust and remove any large debris. Wash the large filter in warm mild soapy water, rinse in clean fresh cold water and let completely dry. - Page 20 The Assembled Extension tubes with the attached floor head can be stored on the side of the vacuum cleaner by using the hanging hook as shown. The Crevice / Brush Tool can be stored on the tool holder located on the extension tube as shown.
-
Page 21: Troubleshooting
15 Troubleshooting Clean the Filters and empty the Dust Canister Noisy operation Check for partial blockages and unblock. Clean the Filters and empty the Dust Canister. Weak Suction Check for blockages and unblock. Check that the Suction Relief Valve on the hose handle is closed. Clean the Filters, empty the Dust Canister, check for blockages, Over-heating / Stopping and unblock, then allow it to cool for up to hour before trying to... - Page 22 In some rare instances, some users may feel an electric discharge when touching or using the vacuum cleaner during or after use. This is a well know phenomenon of Static Electricity discharge that happens mostly when the user vacuums a synthetic fibre carpet or other synthetic surfaces.
-
Page 23: Warranty Against Defect
16 Warranty Against Defect 12 Month Warranty Thank you for your purchase. Your new product is warrantied to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. - Page 24 Page 24 of 24...
