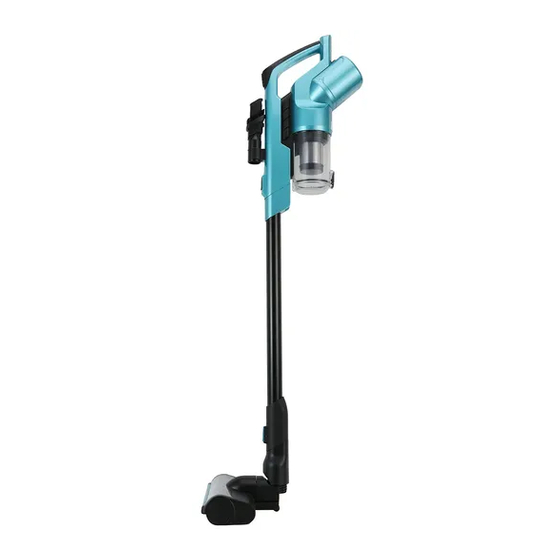

Rechargeable Hand - Stick Vac
Model No.: EV-693-S296
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand)
for an immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
For Household Use Only
Advertisement
Table of Contents
Related Manuals for anko EV-693-S296
Summary of Contents for anko EV-693-S296

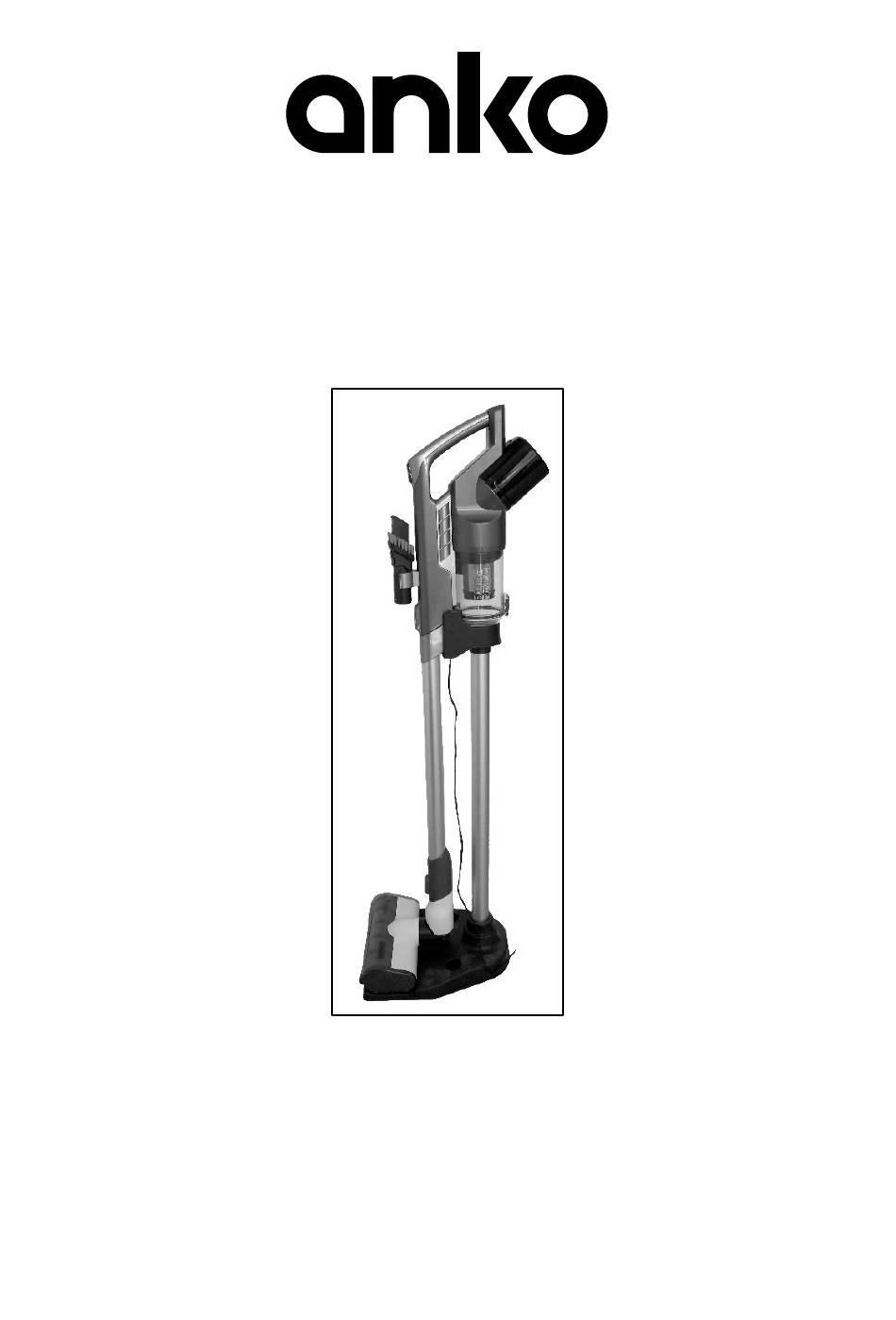

- Page 1 Rechargeable Hand - Stick Vac For Household Use Only Model No.: EV-693-S296 Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand) for an immediate replacement.
- Page 2 Page 2 of 24...
-
Page 3: Table Of Contents
Warnings .................. 4 Safety Directions ..............4 Transporting your Vacuum ............ 7 Components ................7 Assembly Method ..............8 5.1 Charging / Storage Stand ............8 5.2 Assembling the Extension Tube ........... 10 5.3 Removing the Extension Tube..........10 5.4 Attaching the Motorised Floor Head ........10 5.5 Removing the Motorised Floor Head........ -
Page 4: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 DO NOT misuse the Charger Cable. Never pull the appliance by the cable or pull to disconnect it from the outlet. Instead, grasp the charger body and pull to disconnect. DO NOT use the vacuum cleaner to pick up large objects, hard or sharp objects such as glass, nails, screws, coins, etc.
- Page 6 Only use the Battery Charger which was supplied with this appliance. Model No. ZD024D350050AU 100–240V~ 50-60Hz 0.5A Output: 35.0V 500mA Battery Pack Specification: EV-693-S296-22 Type: Li-ion, 29.6Vd.c., 2200mAh Consumers are cautioned against using and/or purchasing counterfeit and/or inferior quality batteries. These batteries have the potential to cause fire, personal injury, and/or damage to property.
-
Page 7: Transporting Your Vacuum
Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle. Never pull or carry the vacuum cleaner by its Charger cable. Never carry the vacuum cleaner by the accessories / Tools. Components Stick Vac Body / Handle Battery Charger... -
Page 8: Assembly Method
Assembly Method Please Note: Always remove the Battery Charger from the power socket before assembly. Charging / Storage Stand The vacuum cleaner is supplied with a Charging / Storage stand and will need to be assembled before use. Place the base on a flat surface and take the stand post and insert one end into the hole in the base as shown. - Page 9 Next, take the stand head unit (with the battery charger attached) and place over the top of the tube. NOTE: The end of the tube has a slot cut out in it which needs to align with the tab inside the head unit hole. (with the charger cable towards the front as shown below) Once the slot is aligned, firmly push the head unit down onto the tube until it is fully inserted.
-
Page 10: Assembling The Extension Tube
Assembling the Extension Tube Insert the end of the Extension Tube into the mating hole ensuring the locking tab is aligned, then push inward until it locks into place. Removing the Extension Tube To remove the Extension Tube, grasp the Tube, press the locking tab down to release then pull the hose straight out. -
Page 11: Removing The Motorised Floor Head
Removing the Motorised Floor Head To remove the Motorised Floor Head, grasp the Motorised Floor Head, press the locking tab inward to release, then pull the Tube straight up and out. Using Without the Extension Tube. The vacuum cleaner can be used without the extension tube by attaching the Accessories and Motorised Floor Head directly to the vacuum cleaner. - Page 12 To fit the tool, line up with the end of the hand vac and push in. Note: The tool can also be used on the end of the Extension Tube. To remove, press the locking tab down to release and then pull the tool straight out.
-
Page 13: Charging
Charging Note: Charge the Vacuum Cleaner for at least 5 hours prior to use. Only use the Battery Charger which was supplied with this appliance. Insert the battery into the back of the vacuum Cleaner body and push all the way in until it locks in place. -
Page 14: Using The Vacuum Cleaner
Plug the Battery Charger into the power point and switch on. During Charging, the indicator light bars on the back of the battery will illuminate in a rolling fashion indicating the battery is charging. All the bars will be illuminated and be steady when fully charged. When the battery is fully charged, switch off and unplug the battery charger from the power supply. -
Page 15: Speed Control
Speed Control Whilst the vacuum cleaner is running, press the lower button on the handle once. The vacuum cleaner will change to high power mode. Press the same button again and it will change back to low power mode. Press the On / Off button to turn Off. Indicator Lights Charge Status Refer to the section “Charging”... - Page 16 Take the dust canister to a dustbin. Press the Trap Door release button inward to release the latch and the trap door will swing open emptying the contents into the bin. To close the trap door, close it manually until it clips shut. Empty the Dust Canister as frequently as possible or when the suction power is reduced or after use for optimum performance.
-
Page 17: User Maintenance
User Maintenance WARNING: The battery must be removed from the vacuum cleaner before any maintenance, cleaning or replacement of parts. NOTE: To maximise the performance of your vacuum cleaner, you should clean the filters regularly. If the filter is broken or worn, replace it before continuing to use the vacuum. A Filter can be purchased from our Customer Service. - Page 18 Next, disassemble the filters into their separate components for cleaning. Grasp the two handles of the filter and rotate anticlockwise to unlock. Pull up and out to separate. Wash the filters in warm mild soapy water, rinse in clean fresh cold water and let completely dry.
-
Page 19: Cleaning Dust Canister
Cleaning Dust Canister Remove the dust canister as described previously and remove the Filter assembly as described previously. Wash the dust canister in warm mild soapy water, rinse in clean fresh cold water and let completely dry. DO NOT scrub the dust canister or place in a dishwasher. DO NOT use a hair drier to dry the dust canister. -
Page 20: Cleaning The Motorised Floor Head
Cleaning the Motorised Floor Head The Rotary Brush in the floor head can be removed for easy cleaning and removable of hair etc. Ensure the Floor Head is removed from the extension tube or vacuum cleaner. Turn over so that the bottom face is facing up. There is a small locking clip on the right side which needs to be rotated ¼... -
Page 21: Storage
Grasp the rotary brush and slide out sideways Remove any hair, thread and debris etc. that may have caught around the end bearings, wheels or stuck in the openings. After cleaning, refit the brush and end cap in reverse order to disassembling then ensure the small locking clip on the right side which is locked again by rotating ¼... -
Page 22: Troubleshooting
11 Troubleshooting Will Not Switch On Check that the Battery is fully charged. This is correct. All 4 lights will be on when the battery is fully Only 1, 2 or 3 Indicator charged. 3 lights when three quarter charged, 2 lights when half Lights are lit on the battery. -
Page 23: Warranty Against Defect
13 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where... - Page 24 Page 24 of 24...
