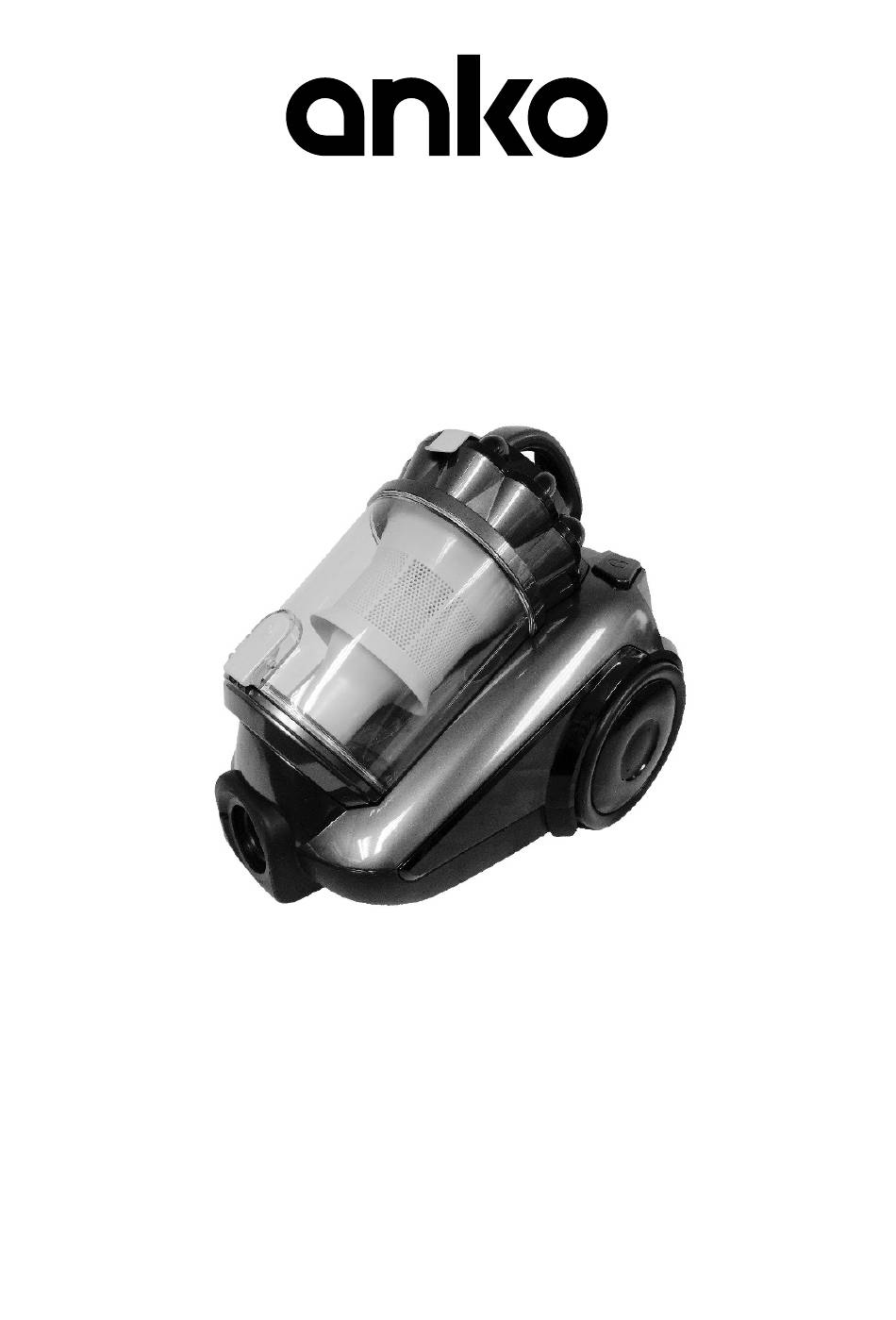

Vacuum Cleaner For Household Use Only Model No.: SL157C Rev 4 Note: The specifications and/or components of this appliance are subject to change without prior notice. If the Hose, Floor Head or any Accessories should fail during use, please call 1300 105 888 for an immediate replacement.
IMPORTANT Please note: it is very important that the filters, dust canister and components are kept clean and free from blockages, etc. Failure to keep clean and well maintained will reduce the performance of your vacuum cleaner, and may cause the motor to overheat. Please refer to the “User Maintenance”...
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 5
DO NOT use the vacuum cleaner if the appliance malfunctions, abnormal noise, smell, smoke, is dropped or damaged in any manner or any breakage is found during operation. For electrical safety, any repairs to the product must be performed by a qualified electrical person only, or the product must be disposed of.
Page 6
DO keep hair, loose clothing, fingers, feet and body parts away from openings or moving parts. DO disconnect the appliance from the mains supply before connecting the flexible suction hose. DO turn off controls before you connect or disconnect the appliance to or from the mains supply.
This product has not been designed for any uses other than those specified in this manual. ONLY for domestic use. Industrial or commercial use invalidates the warranty. Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle.

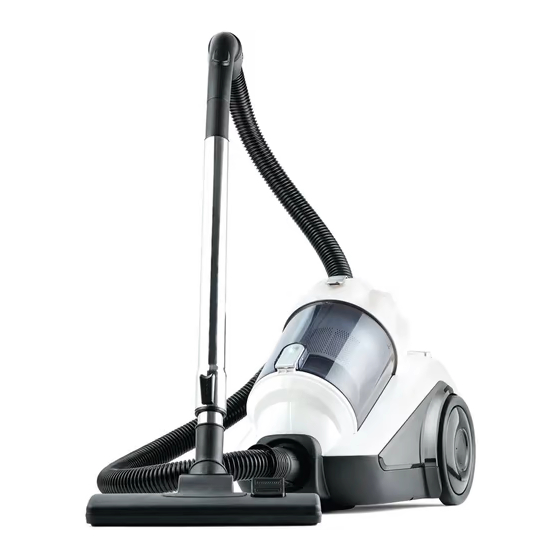

Components Dust Canister Crevice / Brush Carry Handle Hose Coupling Hose Telescopic Tube Hose Handle Power On – Off Button Standard Floor Head Exhaust Grille Upholstery Tool Cord Rewind Button Note: The specifications and/or components of this appliance are subject to change without prior notice Page 8 of 20...
Assembly Method Please Note: Always remove the plug from the power socket before fitting or removing accessories. Ensure all Filters are fitted, and fitted correctly before using. Fitting Flexible Hose Insert the coupling end of the vacuum cleaner hose into the Hose Connector hole and push inward until it locks into place.
Tools Crevice tool with Swivel Brush Crevice tool is for cleaning furniture and into • corners. • Brush attachment can be used for general applications Upholstery Tool The Upholstery tool is used for cleaning sofas and curtains, • etc. Power and Power Cord Before using the appliance, pull to unwind the cord fully up to the yellow •...
Suction Relief Slide The Suction Relief Valve is used for easy, temporary reduction of the vacuum cleaner suction at the floor head. Slide the Suction Control Slide to the open position to reduce the suction power and then slide close to revert back to full suction power at the floor head. Floor Head The floor head is adjustable to suit either hard floors or carpets.
10 Safety Devices Operation NOTE: The motor has an overheating protection device built in. It will automatically switch off power to the motor if it overheats. e.g. from blocked nozzles, full dust Canister or uncleaned and blocked filters. If this happens, turn off the vacuum cleaner and unplug from the power socket, clean blockage and / or filters and allow to rest for at least 60 minutes which should be enough time for the motor to cool down.

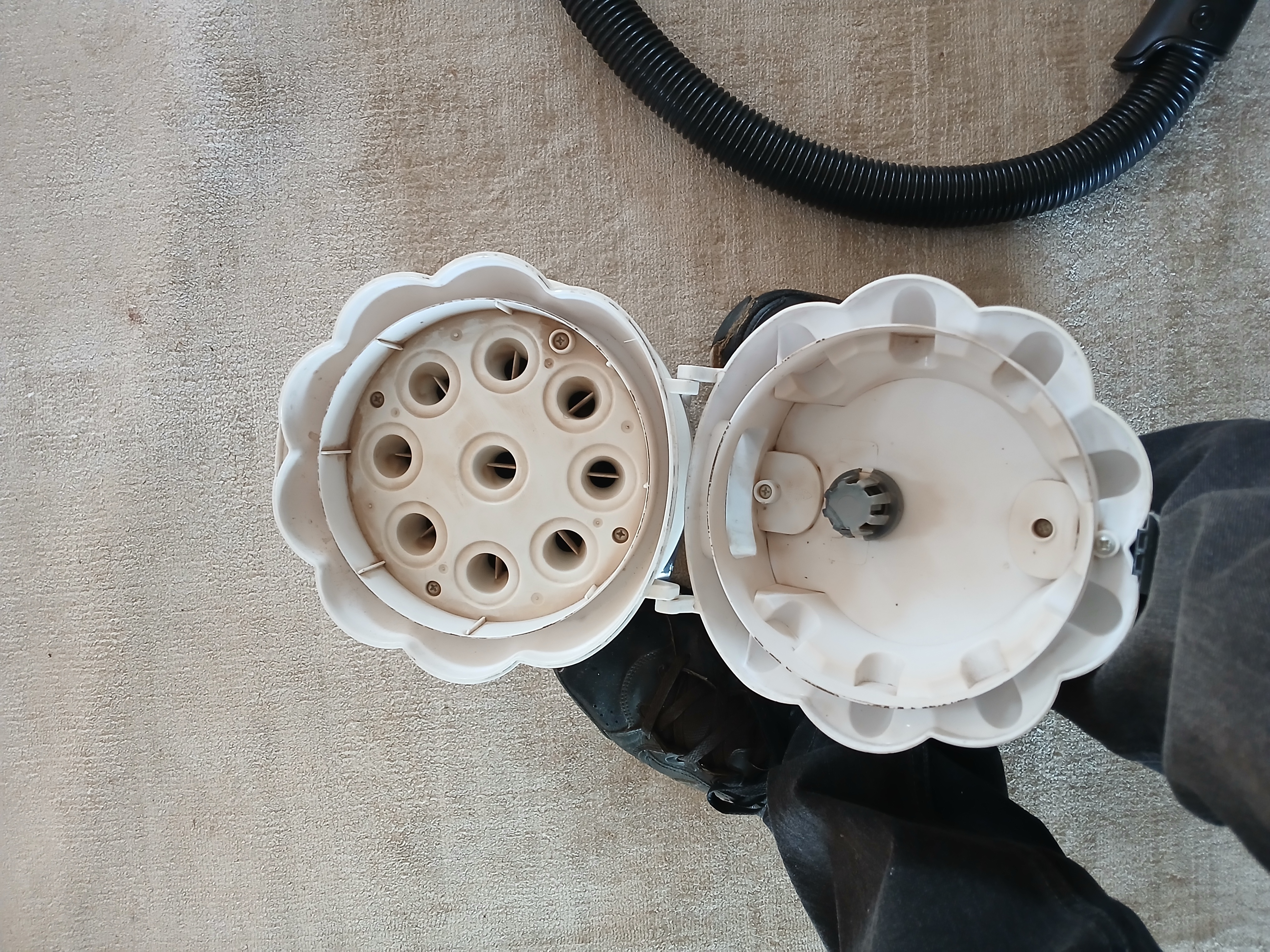

• Alternatively, the Lid and internal mechanism can be removed in one piece to aide in cleaning of the dust canister. To remove, hold the dust canister body firmly and rotate the lid then • pull straight up as shown. Brush the inside of the dust canister with a small brush or wash Refer •...
12.1 Cleaning Filters Important Note – the Filters must be cleaned regularly for best suction performance and to prevent over-heating and damage to your vacuum cleaner. Cleaning is best done at the same time when emptying the dust Canister after you have finish vacuuming for the day. IMPORTANT! Never use the vacuum cleaner with wet or damp filters or without ALL filters fitted.
Wash the filter in warm mild soapy water, rinse in clean fresh cold water and let completely dry. DO NOT scrub the filter or place in a dishwasher. DO NOT use a hair dryer to dry the filter. IMPORTANT! Never use the vacuum cleaner with wet or damp filters. Using wet or damp filters will damage the filters, may cause serious damage to the vacuum cleaner and will void your warranty.
Page 16
Unclip the grill by pushing down the clips and pull forward to expose the filter. To remove the Filter, grasp the small handle on the Right, push the handle to the left to unlatch (1), then swing out (2), then pull out (3). Note: Only wash the filter if it is very dirty, otherwise just tap the edge of the filter on a hard surface to dislodge any dust and remove any large debris.
Refit the Filter (or replace with a new one) by locating the two tabs (on the left side) into the two holes in the vacuum cleaner body, then swing closed and push in until the handle clips shut Refit the cover and clip shut. It is recommended to clean this filter every 3 months or sooner if required.
14 Troubleshooting Clean the Filters and empty the Dust Canister Noisy operation Check for partial blockages and unblock. Clean the Filters and empty the Dust Canister. Check for blockages and unblock Suction Not Strong Check that the Suction Relief Valve on the hose handle is closed.
15 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where...
