Rechargeable Hand - Stick Vac
Model No.: EV-6803-S259
Rev 3
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand)
for an immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us
For Household Use Only
Advertisement
Table of Contents
Related Manuals for anko EV-6803-S259
Summary of Contents for anko EV-6803-S259
- Page 1 Rechargeable Hand - Stick Vac For Household Use Only Model No.: EV-6803-S259 Rev 3 Note: The specifications and/or components of this appliance are subject to change without prior notice. If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand) for an immediate replacement.
-
Page 2: Table Of Contents
Warnings .................. 4 Safety Directions ..............4 Transporting your Vacuum ............ 7 Components ................7 Introduction to the Control Panel ..........8 Assembly Method ..............8 Attaching and removal of Battery Pack ........8 Attaching the Extension Tube ............ 9 Removing the Extension Tube ............ - Page 3 Page 3 of 28...
-
Page 4: Warnings
Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. - Page 5 DO NOT misuse the Charger Cable. Never pull the appliance by the cable or pull to disconnect it from the outlet. Instead, grasp the charger body and pull to disconnect. DO NOT use the vacuum cleaner to pick up large objects, hard or sharp objects such as glass, nails, screws, coins, etc.

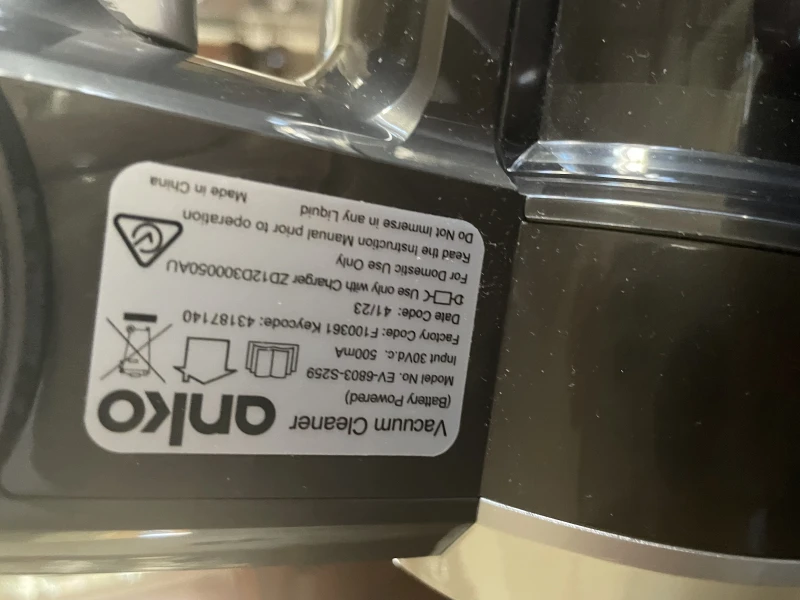

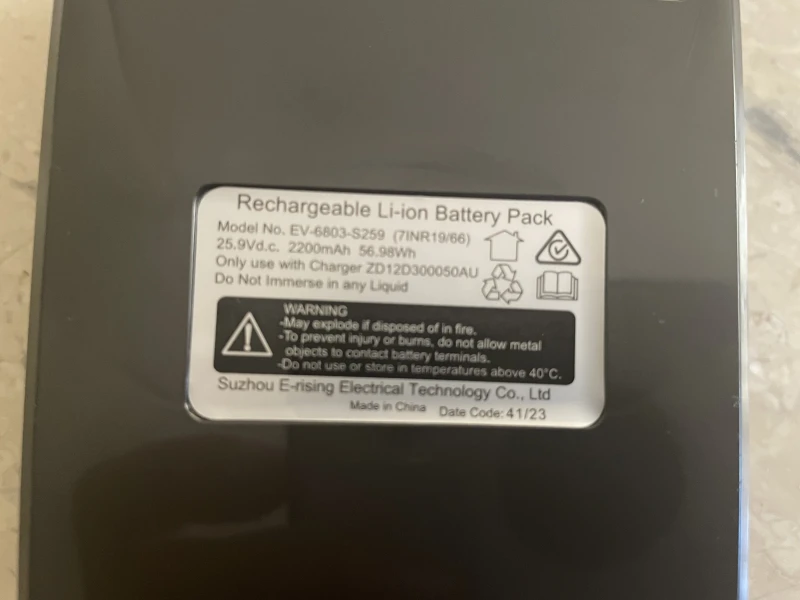

- Page 6 WARNING Only use the Battery Charger which was supplied with this appliance. Model No. ZD12D300050AU 100–240V~ 50/60Hz 0.5A Output: 30.0V 500mA The battery charger is detachable. Battery Pack Specification: EV-6803 Type: Li-ion, 25.9Vd.c., 2200mAh Consumers are cautioned against using and/or purchasing counterfeit and/or inferior quality batteries.
-
Page 7: Transporting Your Vacuum
Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle. Never pull or carry the vacuum cleaner by its Charger cable. Never carry the vacuum cleaner with the accessories / Tools. Components Control Panel / Rechargeable Battery Pack Wall Mount Plugs and Screws... -
Page 8: Introduction To The Control Panel
Introduction to the Control Panel Note: Refer to individual sections in this manual for detailed information. Battery Level in % Dust Pickup Level Indicator Ring Battery Overheated Battery needs Indicator Charging Indicator Filter Blocked Floor Head Brush Jammed Increase Power Manually Button Decrease Power Manually Button... -
Page 9: Attaching The Extension Tube
There should be no need to remove the battery pack once fitted, however, if you should need to remove it, press the release button located on the top of the battery pack, and at the same time, slide the battery straight out. Attaching the Extension Tube Insert the top end of the Extension Tube into the mating hole in the vacuum cleaner body ensuring the locking tabs are aligned, then push inward until it... -
Page 10: Attaching The Motorised Floor Head
Attaching the Motorised Floor Head To attach the motorised floor head to the other end of the extension tube, insert the end of the Extension Tube into the end of the Floor Head, ensuring the locking tabs are aligned, then push inward until it locks into place. Removing the Motorised Floor Head To remove the Motorised Floor Head, grasp the Motorised Floor Head, press the locking button to release, and then pull the tube straight up and out. -
Page 11: Tools
Tools Crevice / Brush tool is for cleaning furniture and into corners etc. To use the Brush tool, press the release button to unlatch and slide the brush down until it locks in place. To use the Crevice tool, press the release button to unlatch and slide the brush up until it locks in place To fit the tool, line up with the end of the hand vac and push in. - Page 12 For the wall hanging bracket: insert the small plug end of the battery charger into the socket of the wall hanging bracket as shown. For charging the battery directly without the wall hanging bracket: insert the small plug end of the battery charger into the socket of the battery as shown. Plug the Battery Charger into the power point and switch on.
-
Page 13: Antistatic Contacts
When to Charge Indicator During use, if the battery level decreases to approximately 10% remaining power, the small battery icon will blink indicating that the battery needs to be recharged. When the battery power level is above 10%, this indicator will remain a solid light. -
Page 14: Using The Vacuum Cleaner
Using the Vacuum Cleaner On / Off To use the Vacuum Cleaner, assemble the unit as previously instructed and ensure the battery is fully charged. To switch on, grasp the handle and squeeze the trigger on the handle. The vacuum cleaner will start in the default power mode (Auto). Release the trigger to turn off. -
Page 15: Manual Mode
During use in Auto mode, depending on the floor surface and the amount of dust the vacuum cleaner is picking up, the vacuum cleaner suction will automatically adjust to the required power. 7.2.2 Manual Mode Whilst the vacuum cleaner is running, press either the Button to reduce power, or the Button to Increase Power. -
Page 16: Indicator Lights
Indicator Lights Jammed Floor Head Brush The vacuum cleaner is fitted with a sensor that detects if the floor head rotary brush gets jammed. If the brush gets jammed, the Floor Head will turn off and the words “CLEAN BRUSH” in red text on the control panel will blink on and off. Note: The vacuum suction motor will continue to run, therefore;... -
Page 17: Dust Indicator
If the vacuum cleaner has overheated and turned off, after checking for blockages and after cleaning the filters, allow the vacuum cleaner to cool down for 1 hour before using again. Dust Indicator The ring around the display will illuminate in a clockwise direction visually indicating how much dust and debris is being picked up. -
Page 18: Emptying The Dust Canister
Emptying the Dust Canister To Empty the dust canister, take the vacuum cleaner to a dustbin. Press the release button on the dust canister and the trap door will swing open emptying the contents into the bin. To close the trap door, close it manually until it clips shut. Empty the Dust Canister as frequently as possible or when the suction power is reduced or after use for optimum performance. - Page 19 Using a wet or damp filter will damage the filter, may cause serious damage to the vacuum cleaner and will void your warranty. Only wash the filter if it is very dirty, otherwise, just tap the edge of the filter on a hard surface to dislodge any dust and debris.
-
Page 20: Exhaust Filter
The black foam filter can just be tapped clean. Do not wash. If needed, wash the white filter and filter holder in warm mild soapy water, rinse in clean fresh cold water and let them completely dry. DO NOT scrub the filter or filter holder, or place them in a dishwasher. DO NOT use a hairdryer to dry the white filter or filter holder. -
Page 21: Cleaning Dust Canister
Only wash the filter if it is very dirty, otherwise, just tap the edge of the filter on a hard surface to dislodge any dust and debris. If needed, wash the filter in warm mild soapy water, rinse in clean fresh cold water and let them completely dry. -
Page 22: Cleaning The Vacuum Cleaner Body And Tools
10.4 Cleaning the Vacuum Cleaner Body and Tools Do not clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc. Clean only the outside of the vacuum cleaner. Use only a moist cloth and mild detergent for cleaning the vacuum cleaner, components and accessories. - Page 23 Remove any hair, thread and debris etc. that may have caught around the brush, end bearings, wheels or stuck in the openings. After cleaning, refit the brush in reverse order to disassembling. Note: the brush can only be fitted in one direction as follows. Align the end of the brush onto its drive spindle and rotate the brush until it slides down onto the spindle, then push down on the brush until it is located in position.
-
Page 24: Storage
11 Storage 11.1 Wall Mount Storage / Charging There is a Storage / Charging Bracket with a Tool Holder supplied with screws and wall plugs should you prefer to hang the vacuum cleaner on the wall. To install the Storage / Charging Bracket, position the Storage / Charging Bracket on the wall, near a power point and at a suitable height where the vacuum cleaner will not touch the floor. - Page 25 To release the tool, pull the tool straight down and out. Hang the vacuum cleaner as shown: Page 25 of 28...
-
Page 26: Troubleshooting
12 Troubleshooting Check that the battery is fully charged and inserted correctly. Will Not Switch On The Motor or Battery has overheated. Allow to cool for at least 1 hour. The floor Head brush is jammed. The floor Head turned off and red text CLEAN Ensure the Vacuum Cleaner is switched off, the battery is BRUSH flashing... -
Page 27: Warranty Against Defect
14 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where... - Page 28 Page 28 of 28...
