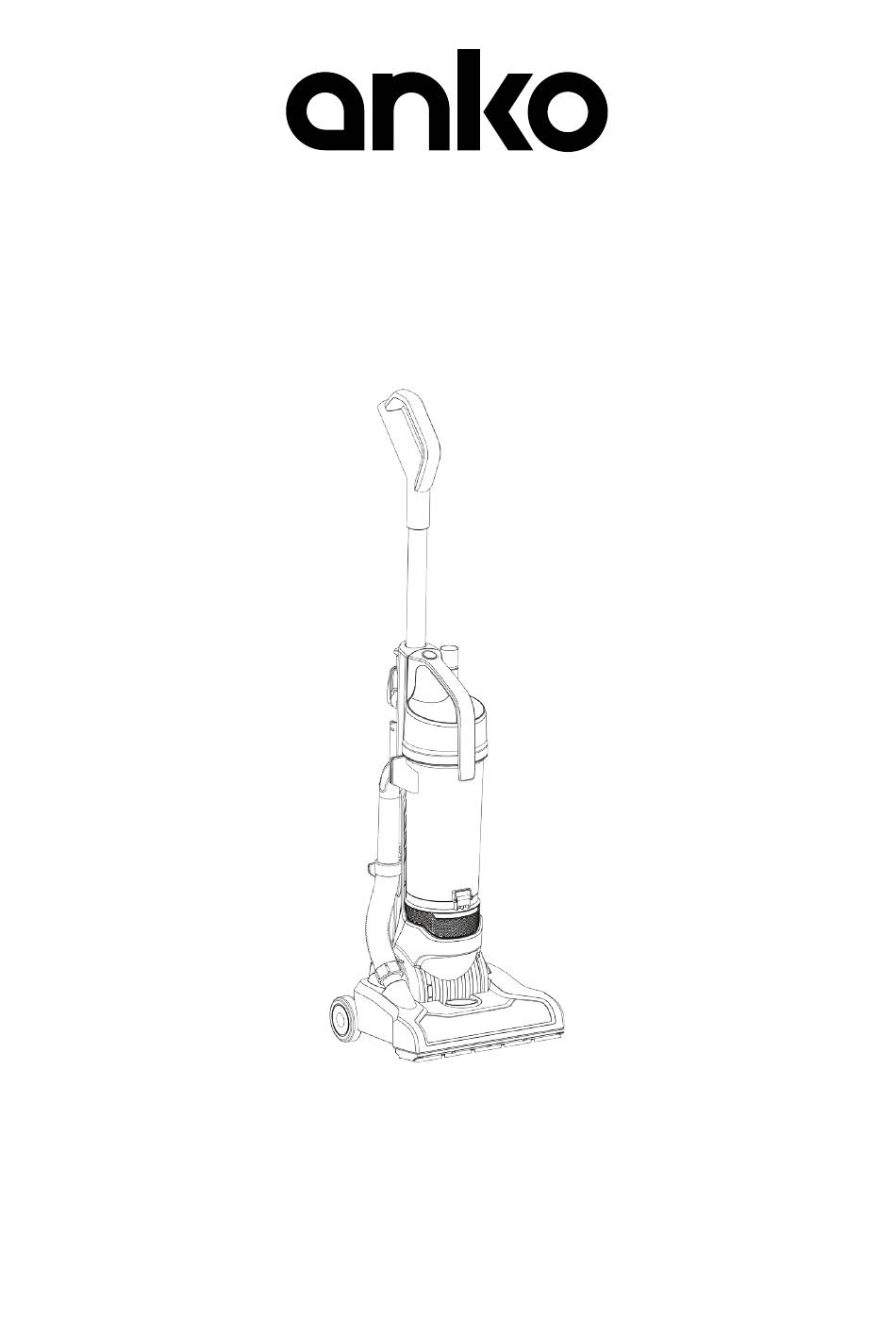

Vacuum Cleaner
For Household Use Only
Model No.: VC-9790
Rev 1
Note: This appliance's specifications and/or components are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand) for an
immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us

Advertisement

Table of Contents
loading

Related Manuals for anko VC-9790

Summary of Contents for anko VC-9790

  • Page 1 Vacuum Cleaner For Household Use Only Model No.: VC-9790 Rev 1 Note: This appliance's specifications and/or components are subject to change without prior notice. If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand) for an immediate replacement.

  • Page 2: Table Of Contents

    Warnings .................. 3 Safety Direction ............... 3 Transporting your Vacuum ............ 6 Components ................6 Assembly Method ..............7 Fitting / Removing the Handle ............ 7 Crevice / Brush Tool Holder ............8 Power Cord Storage ..............8 Floor Head Height Adjustment ..........9 Safety Devices Operation ............

  • Page 3: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Page 4 DO NOT use the vacuum cleaner if the appliance malfunctions, has abnormal noise, smells, smoke, is dropped or damaged in any manner or if any breakage is found during the operation. Return the appliance to the nearest authorised service agent or similarly qualified person for a thorough examination, repair, electrical or mechanical adjustment.
  • Page 5 DO disconnect the appliance from the mains supply before connecting the flexible suction hose. DO switch off controls before you connect or disconnect the appliance to or from the mains supply. DO disconnect the appliance from the power supply when not in use, before changing the dust filter, cleaning the filters or connecting / disconnecting the accessories.

  • Page 6: Transporting Your Vacuum

    Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the appliance and either push the appliance or carry using the handle. Never pull or carry the vacuum cleaner by its cord. Never carry or pull the vacuum cleaner by the flexible hose. Components Handle / Hose Handle Head Height Adjustment Knob...

  • Page 7: Assembly Method

    Assembly Method Please Note: Always switch off and remove the plug from the power point before fitting or removing accessories, including the dust canister. Ensure all Filters are fitted and fitted correctly before using. 5.1 Fitting / Removing the Handle To fit the handle, place the end of the tube into the hole in the top of the vacuum cleaner.

  • Page 8: Power Cord Storage

    5.2 Crevice / Brush Tool Holder Take the Crevice / Brush tool and stow it on the back of the vacuum cleaner as shown. Power Cord Storage There is provision for storing the power cord when not in use. There are two hooks on the back of the vacuum cleaner for winding the cord.

  • Page 9: Floor Head Height Adjustment

    Floor Head Height Adjustment The floor head is adjustable in height to suit low to high-pile carpets and for hard floors. • Turn to position “0” for Low pile carpet. • Turn to position “1” for Hard floors. • Turn to position “2 or 3” for carpet between Low Pile and Medium pile carpet.

  • Page 10: Power On / Off Switch

    Important: If the over-temperature device activates and turns the motor off, and you do not switch off and unplug the appliance from the power point, the motor will restart automatically after it has cooled down enough to reset the safety device. This could cause damage to your floor surface as the brush bar will start spinning in the one spot.

  • Page 11: Floor Head Release

    10 Floor Head Release To Lower the Handle, place your foot on the top of the floor head, to hold it firmly on the floor, and then pull the vacuum cleaner handle back. The floor head latching mechanism will release and you are now ready to start vacuuming the floor.

  • Page 12: Crevice / Brush Tool

    11 Crevice / Brush Tool The Crevice / Brush tool is for cleaning furniture and into corners etc. To use the Brush tool, press the release button to unlatch and slide the brush up until it locks in place. To use the Crevice tool, press the release button to unlatch and slide the brush down until it locks in place.
  • Page 13 To use the hose with the crevice / brush tool, first pull out the removable end from the Floor Head by pulling straight out as shown. Take the crevice / brush tool and slide it onto the end of the hose connector.
  • Page 14 Remove the Handle from the top of the vacuum cleaner by pressing down the Release Lever and then pull the Handle straight up and out as shown. Next, connect the end of the hose to the top end of the Handle and clip on as shown.

  • Page 15: Emptying The Dust Canister

    13 Emptying the Dust Canister Empty the Dust Canister and clean the filters as frequently as possible or when the suction power is reduced. To remove the Dust Canister, switch off the power and unplug from • the power point. Grip the handle on the Dust Canister, press the Dust Canister Release •...

  • Page 16: User Maintenance

    14 User Maintenance WARNING: The vacuum cleaner MUST be switched off and unplugged from the power point before any maintenance or replacement of parts. Failure to do so may result in injury or damage to your surroundings and vacuum cleaner. NOTE: To maximise the performance of your vacuum cleaner, you should clean your filters regularly.
  • Page 17 With the lid opened fully, grasp the dust separator, which has the filter located in the top, and pull straight up and out. Remove the filter from the dust separator. The filter is a firm fit in the top of the dust separator so as to seal properly, so may require a little force to remove it.
  • Page 18 If washing, wash the filter in warm mild soapy water, rinse in clean fresh cold water and let it completely dry. DO NOT scrub the filter or place in a dishwasher. DO NOT use a hair drier to dry the filter. NOTE: Never use the vacuum cleaner with wet or damp filters.

  • Page 19: Pre-Motor Filter

    Close the Dust Canister lid ensuring it clips shut, then refit the dust canister to the vacuum cleaner. It is recommended to replace the filter every 3 – 6 months, or sooner if required. 14.1.2 Pre-Motor Filter The pre-motor filter is located in the bottom section of the vacuum cleaner where the dust canister locates.

  • Page 20: Dust Canister

    If washing, wash the filter in warm mild soapy water, rinse in clean fresh cold water and let completely dry. DO NOT scrub the filter or place in a dishwasher. DO NOT use a hair drier to dry the filter. NOTE: Never use the vacuum cleaner with wet or damp filters.

  • Page 21: Cleaning The Rotary Brush Bar

    Clean only the outside of the vacuum cleaner. Use only a moist cloth and mild detergent for cleaning the vacuum cleaner, components and accessories. After cleaning, wipe off the moisture on the vacuum cleaner, components and accessories with a dry cloth. Do Not place accessories, tools or components in a dishwasher.

  • Page 22: Troubleshooting

    15 Troubleshooting Ensure the plug is properly plugged into the power point and switched on at the power point. Check that there is power at the power point. Use a table lamp or Vacuum Cleaner other appliance to check. will not turn on Press the On/Off switch on the Vacuum cleaner Motor thermostat has tripped –...

  • Page 23: Warranty Against Defect

    16 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
