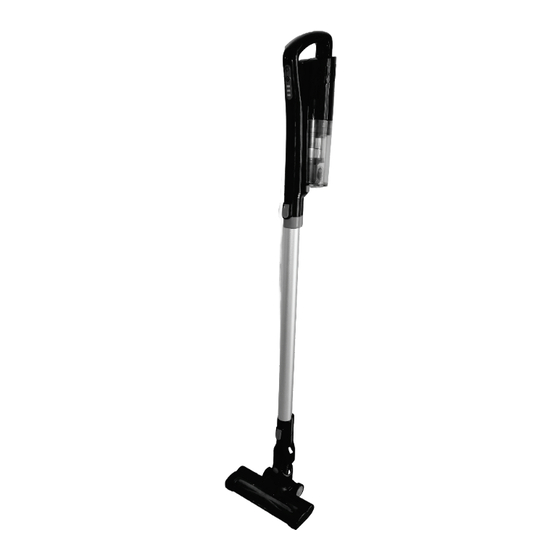

Cordless stick vac for household use only

Advertisement

Quick Links

Model No.: EV-PH666-S222
Rev 1
Note: This appliance's specifications and/or components are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand)
for an immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us.
Cordless Stick Vac
For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-PH666-S222 and is the answer not in the manual?

Questions and answers

Summary of Contents for anko EV-PH666-S222

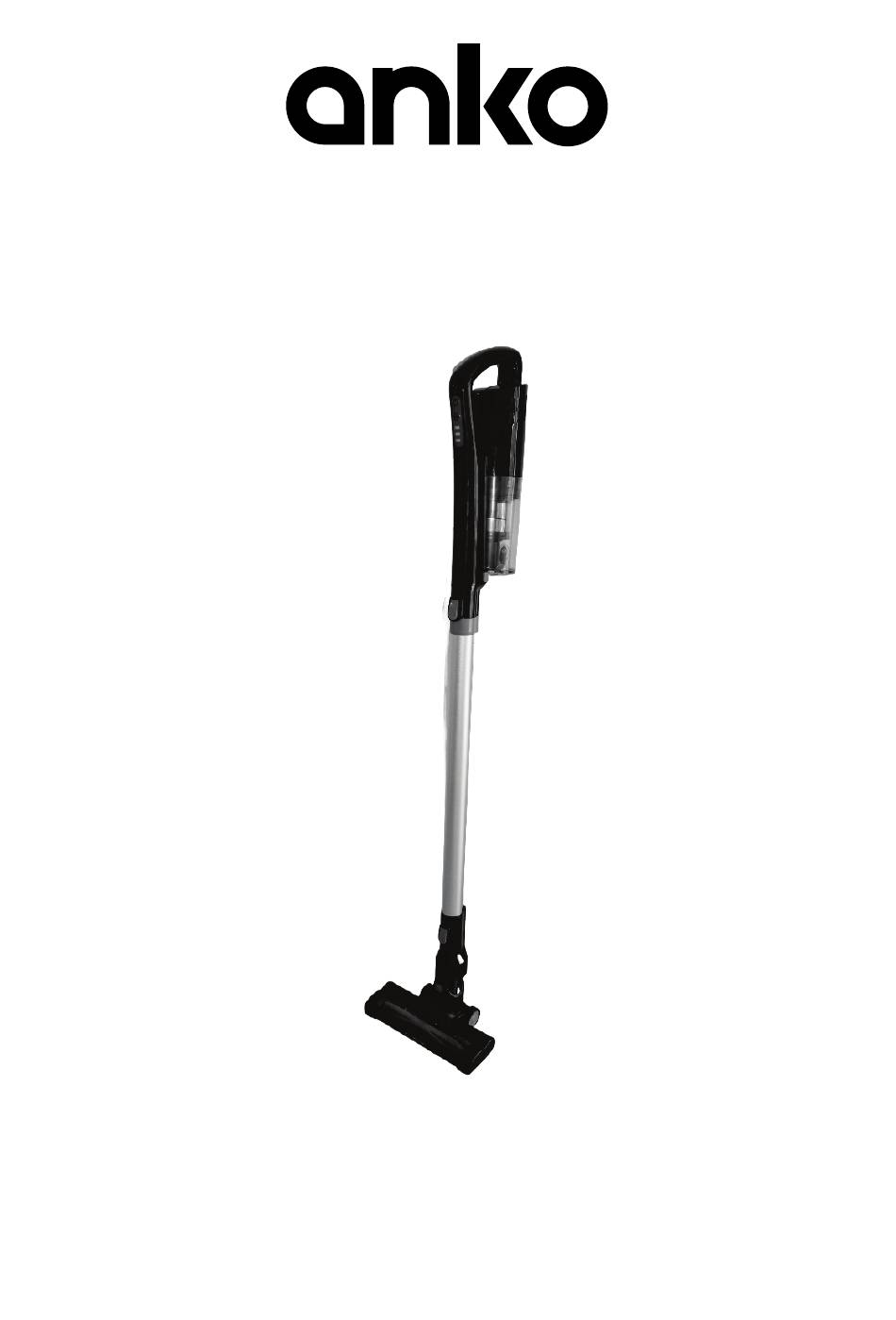

  • Page 1 Cordless Stick Vac For Household Use Only Model No.: EV-PH666-S222 Rev 1 Note: This appliance's specifications and/or components are subject to change without prior notice. If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand) for an immediate replacement.
  • Page 2 Page 2 of 24...
  • Page 3: Table Of Contents

    Warnings .................. 5 Safety Directions ..............5 Transporting your Vacuum ............ 8 Components ................8 Assembly ................. 9 5.1 Attaching the Extension Tube ..........9 5.2 Removing the Extension Tube..........9 5.3 Attaching the Motorised Floor Head ........9 5.4 Removing the Motorised Floor Head........10 5.5 Using Without the Extension Tube.
  • Page 4 Page 4 of 24...
  • Page 5: Warnings

    Warnings Before using this appliance, read and follow all warnings and instructions in this manual, even if you are familiar with this product. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Page 6 DO NOT misuse the Charger Cable. Never pull the appliance by the cable or pull to disconnect it from the outlet. Instead, grasp the charger body and pull to disconnect. DO NOT use the vacuum cleaner to pick up large objects, hard or sharp objects such as glass, nails, screws, coins, etc.
  • Page 7 DO operate the Charger from a power source of the same voltage, frequency and rating as indicated on the product identification plate. WARNING Only use the Battery Charger which was supplied with this appliance. Model No. ZD12D260050AU 100 – 240V~ 50/60Hz 0.5A Output: 26.0V 500mA Battery Pack Specification: Type: Li-ion x 6 cell, 22.2Vd.c., 2200mAh, 48.48Wh (Non-Removable).
  • Page 8: Transporting Your Vacuum

    Read and Save These Instructions Transporting your Vacuum To move your vacuum cleaner from room to room, unplug the unit and carry using the carry handle. Never pull or carry the vacuum cleaner by its Charger cable. Never carry the vacuum cleaner with the accessories / Tools. Components Dust Canister Wall Mount / Charging Bracket...
  • Page 9: Assembly

    Assembly 5.1 Attaching the Extension Tube Insert the top end of the Extension Tube into the mating hole in the end of the Vacuum cleaner body ensuring the locating guides are aligned, then push inward until it locks into place. 5.2 Removing the Extension Tube To remove the Extension Tube, press the locking button inward to release it and then pull the tube straight out.
  • Page 10: Removing The Motorised Floor Head

    5.4 Removing the Motorised Floor Head To remove the Motorised Floor Head, grasp the Motorised Floor Head, press the locking button inward to release and then pull the Tube straight out. 5.5 Using Without the Extension Tube. The vacuum cleaner can be used without the extension tube by attaching the Accessories and Motorised Floor Head directly to the vacuum cleaner.
  • Page 11: Charging

    To fit the tool, line up with the end of the hand vac and push in. Note: The tool can also be used on the end of the Extension Tube. To remove, press the locking button to release and then pull the tool straight out.
  • Page 12 During Charging, the three lights on the handle will flash in sequence indicating the batteries are charging. When the batteries are fully charged, these lights will remain permanently on. When the battery is fully charged, switch off and unplug the battery charger from the mains power supply.
  • Page 13: Using The Vacuum Cleaner

    Using the Vacuum Cleaner 7.1 On / Off To use the Vacuum Cleaner, assemble the unit as previously instructed and ensure the battery is fully charged. To switch on, grasp the handle then press and release the On / Off button on top of the vacuum cleaner body.
  • Page 14: Indicator Lights

    To change to the “High” setting, press and release the Speed Button again. Pressing and releasing the Speed Button again will cycle back around to the “Low” setting. Indicator Lights 8.1 Battery Remaining During use, the battery level (remaining power) will be indicated by the three lights on top of the vacuum cleaner handle.
  • Page 15: User Maintenance

    Take the dust canister to a dustbin then press the release button on the dust canister and the trap door will swing open emptying the contents into the bin. To close the trap door, close it manually until it clips shut. Refit the dust canister to the vacuum cleaner by first locating the filter end onto the vacuum cleaner, push on while swinging the dust canister up and keep pushing up until it locks in place.
  • Page 16: Cleaning The Filters

    A new filter can be purchased from our Customer Service. You can call our customer service number: 1300 105 888 (Australia) and 09 8870 447 (New Zealand), or via email at info@hegroup.com.au 10.1 Cleaning the Filters Important Note – The Filters must be cleaned regularly for the best suction performance and to prevent overheating and damage to your vacuum cleaner.
  • Page 17 Refit the filter (or replace it with a new one) into the Filter Holder. At the same time as cleaning the fabric filter, it is a good idea to clean the filter holder and the metal filter. To do this, grasp the wire handle, swing up and pull the filter holder straight up and out.
  • Page 18: Cleaning Dust Canister

    Note: The filter holder can only be fitted in one orientation. Align the tabs on the side of the filter holder with the mating slots in the dust canister then slide down. DO NOT force it in. If it will not drop in easily, check the alignment of the tabs. 10.2 Cleaning Dust Canister Remove the dust canister as described previously and remove the filter and...
  • Page 19: Cleaning The Vacuum Cleaner Body And Tools

    10.3 Cleaning the Vacuum Cleaner Body and Tools DO NOT clean the vacuum cleaner, components or accessories using petrol or any other flammable liquid or solvents, etc. Clean only the outside of the vacuum cleaner body. Use only a moist cloth and mild detergent for cleaning the vacuum cleaner, components and accessories.
  • Page 20 There is a small tab on the bottom that needs to be slid sideways to unlock the Rotary Brush Holder. When released, grasp the Rotary Brush, lift the end up, slide to the right and lift it up and out. Remove any hair, thread, debris, etc.
  • Page 21: Storage / Charging Wall Bracket

    Once the rotary brush is seated properly, slide the locking tab to the left to lock the brush in place. 11 Storage / Charging Wall Bracket There is a Storage / Charging Hanging Bracket supplied with screws and wall plugs for attaching to the wall. To install the Storage / Charging Hanging Bracket, position the Bracket on the wall at a suitable height where the vacuum cleaner will not touch the floor, and near a mains power point where the supplied Battery Charger can reach...
  • Page 22: Troubleshooting

    12 Troubleshooting Check that the battery is fully charged. Will Not Switch On The vacuum cleaner will not turn on if stored on the charging mount bracket Clean the filter and empty the Dust Canister Noisy operation Check for partial blockages and unblock. Clean the filter and empty the Dust Canister.
  • Page 23: Warranty Against Defect

    13 Warranty Against Defect 12 Month Warranty Thank you for your purchase. Your new product is warrantied to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
