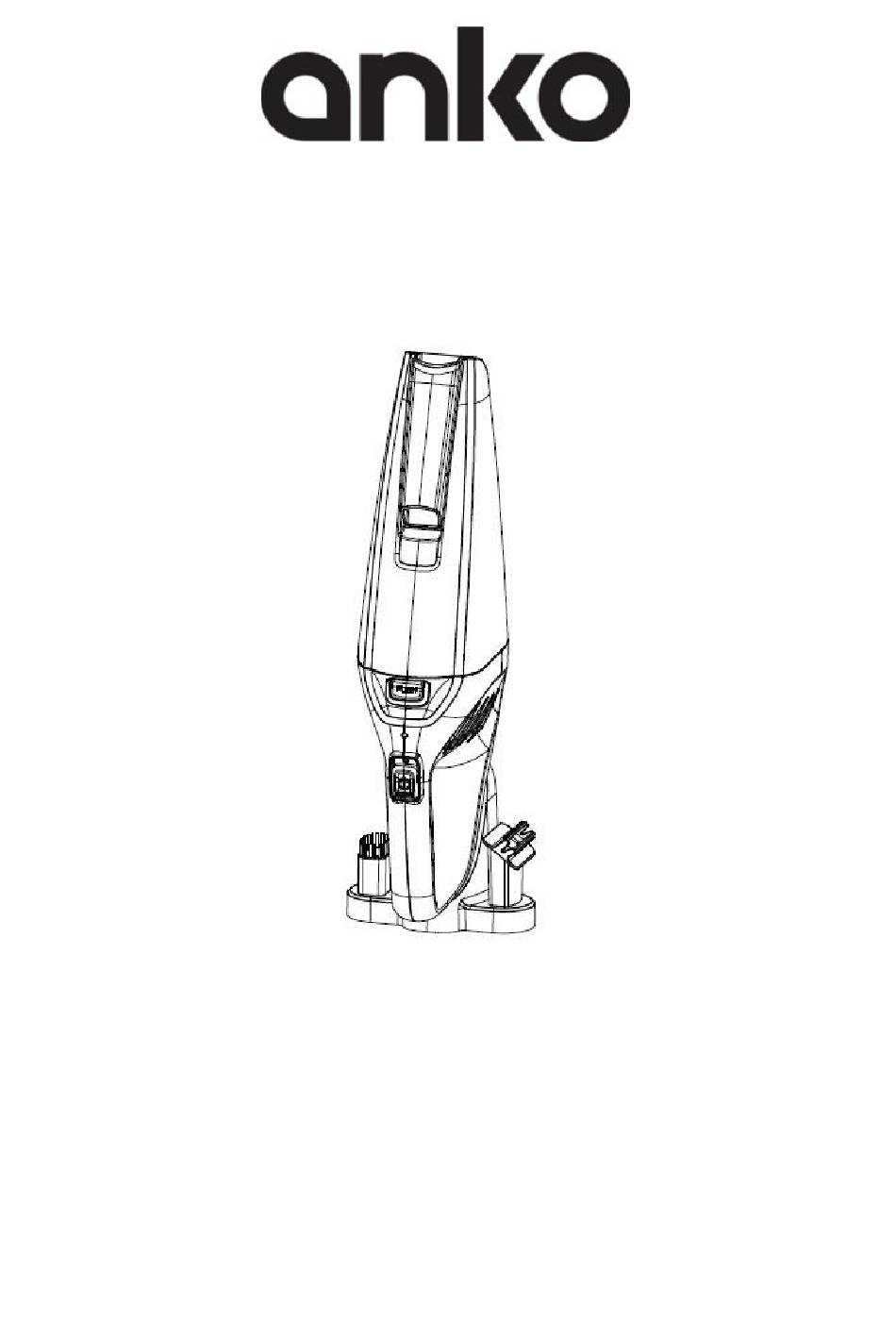

- Page 1 Vacuum Cleaner User Manual Model no.: VC8273-L-9 PLEASE READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS FOR HOUSEHOLD USE ONLY. This appliance should only be used for domestic cleaning, and must only be used indoors, as described in this user guide. 1. Always switch off and remove the charger from the socket before cleaning the appliance or during any maintenance. - Page 3 End of Product Life Battery Disposal If the cleaner is to be disposed of, the batteries should be removed. The battery should be disposed safely and responsibly. Used batteries should be taken to a recycling station and not disposed of with household waste.
-
Page 4: Charging The Vacuum
PARTS Wall mount pack Charger Handheld Vacuum Flip-up crevice tool Brush Rubber wiper On/Off switch Charging/ Power indicator Dust cup release button Dust cup Cloth filter CHARGING THE VACUUM Plug the charger into the wall outlet, ensure the voltage of the electricity supply is same as that indicated on the rating label of battery charger. - Page 5 ASSEMBLY IMPORTANT! The cloth filter must always be used when operating the handheld vacuum. A crevice tool is built into the nozzle and can be flip-down for use. A rubber wiper was provided for wet suction. Push the wiper to nozzle, ensuring it is tightly fixed.
-
Page 6: Using The Vacuum
USING THE VACUUM Turn on the vacuum cleaner by sliding the On/Off switch forward. (i.e. “O” = OFF, “I” = ON). To stop, slide the switch back. Recharge the vacuum after use. MAINTENANCE Emptying the dust cup Press the dust cup release button and pull out the dust cup Pull out the filter. - Page 7 Empty the dust cup. Cleaning the filter Wash the filter and dust cup under rinsing water. IMPORTANT! DO NOT wash the main electric motor unit with handle in water or other liquid. Allow to dry for 24 hours. Make sure filter and dust cup are dried thoroughly before fitting them back to the unit.
- Page 8 STORAGE Wall Mount There is a wall mount accessory supplied with screws and wall plugs. To install the wall mount bracket, position it on the wall at a suitable height. Mark the two screw holes through onto the wall. Using a suitable drill (wood drill bit for timber wall, or masonry drill bit for brick / concrete walls, drill three holes...
-
Page 9: Troubleshooting
2. The dust cup is full. 2. Empty dust cup. 3. The filters are blocked. 3. Check for any blockages and wash filter. SPECIFICATION Model number V8273-L-9 Battery 14.8V 1300mAh, Li-ion (3.7V x 4cells) Working time: 15-20min Charging time: 5-6hr... - Page 10 12 MONTH WARRANTY Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided.
