Before starting the installation, ensure that all components listed below are supplied:
•
1x ES100/ES110 Series Electric Strike
•
1x screw kit
•
1x warranty information
•
1x installation instructions
•
1x diode
•
1x strike template
•
1x mounting kit (for ES110 variants only)
Additional accessories are available for optional mounting & spare parts (not supplied):
•
220200-518
•
210100-544
•
210100-530
•
200100-519
•
210100-523
•
210100-528
•
210100-527
220110-502
15mm Extension lip
ASSA ABLOY Australia Pty Limited, 235 Huntingdale Rd, Oakleigh, VIC 3166 ABN 90 086 451 907 ©2025
Experience a safer and more open world

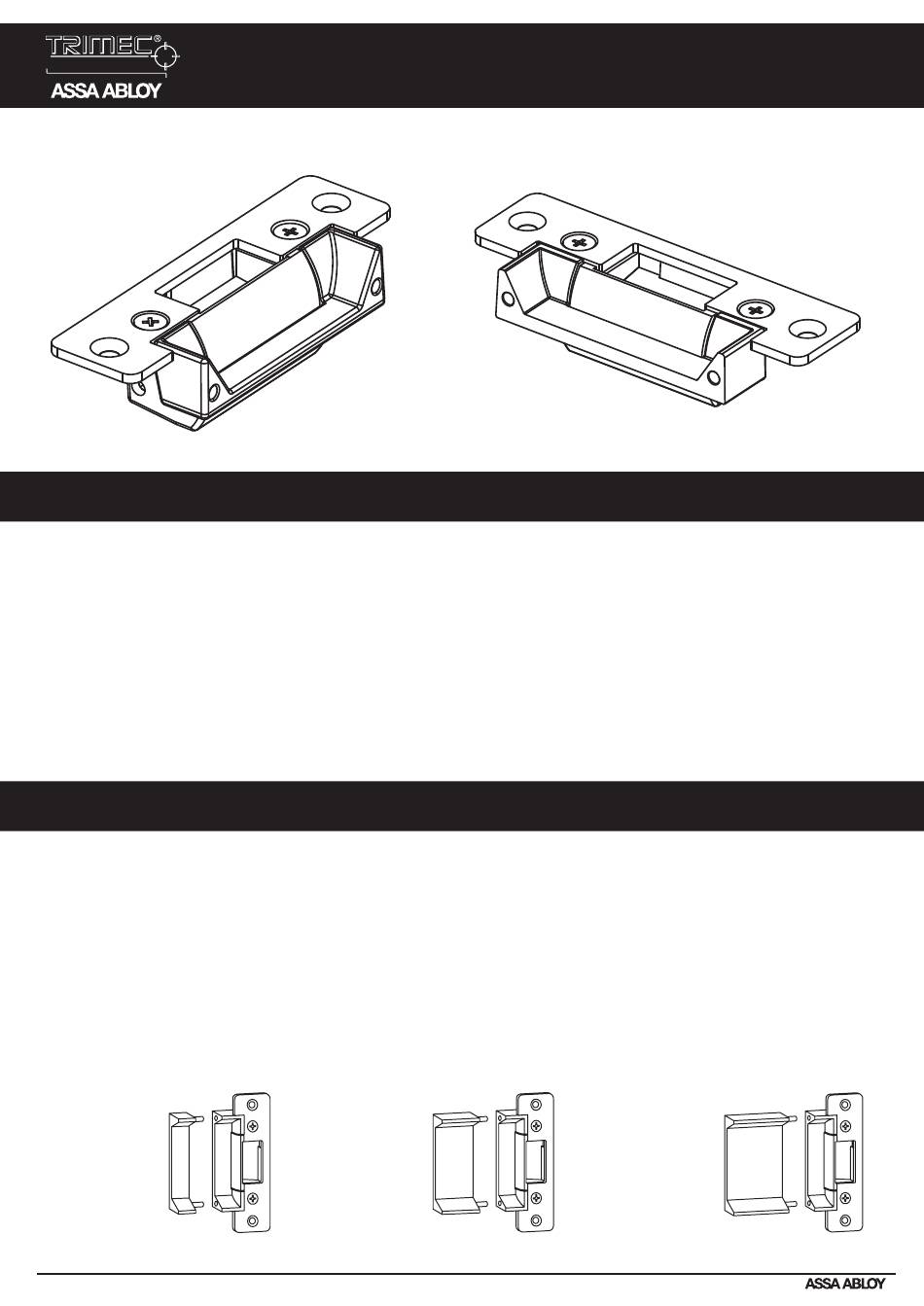

ES100 and ES110 SERIES ELECTRIC STRIKE
ACCESSORIES (FACEPLATES AND EXTENSION LIPS)
Mounting kit
Faceplate - A (ANSI Short)
Faceplate - B (ANSI Long)
Faceplate - C
Faceplate - J
Faceplate - F (UK Sash RH) [DIN Left]
Faceplate - G (UK Sash LH) [DIN Right]
220110-503
25mm Extension lip
INSTALLATION INSTRUCTIONS
ES100ES110-221 (4)
CONTENTS
220110-504
50mm Extension lip
Advertisement
Table of Contents
Related Manuals for Assa Abloy ELECTRIC STRIKE TRIMEC ES100 Series
Summary of Contents for Assa Abloy ELECTRIC STRIKE TRIMEC ES100 Series
- Page 1 Faceplate - G (UK Sash LH) [DIN Right] 220110-502 220110-503 220110-504 15mm Extension lip 25mm Extension lip 50mm Extension lip ASSA ABLOY Australia Pty Limited, 235 Huntingdale Rd, Oakleigh, VIC 3166 ABN 90 086 451 907 ©2025 Experience a safer and more open world...
-
Page 2: Important Safety Instructions And Warnings
IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS Read and follow all instructions prior to installing and using this product. These instructions or a full copy of these instructions should be provided to the user. These instructions should be kept by the end user for future reference. Obey and heed all warnings on the product and in the manual. -
Page 3: Installation Instructions
FIRE DOOR APPLICATIONS Before fitting the Electric Strike to a fire/smoke resisting door, the fire certification should be examined to ensure the suitability of the Electric Strike for that door assembly. The ES110 was tested in accordance with EN 14846 (CE & UKCA) fire rating on both single timber doors (30 &... -
Page 4: Electrical Specifications
SETTING LOCK FUNCTION Set the strike to Power-to-Lock (PtL) or Power-to-Open (PtO). To change the electric strike’s mode of lock operation, remove the brass screws from top of strike body. Invert strike and carefully release the small spring and 3 locking pins (x2 short pins, x1 long pin). -
Page 5: Wiring Notes
WIRING NOTES The wiring diagram schematic is shown below. 24VDC 125mA 12VDC 250mA • • Blue Blue • • • Black White White White • • • • • Blue Black Black Blue and Black to Power Supply. Red and Black joined and to Power Supply. Red and White joined together. - Page 6 DOOR AND FRAME PREPARATION (CONTINUED) Peel backing off adhesive template and centrally locate in the marked position, lining up both the mark for the door latch front face (Line 1) and the centre mark of the latch (Line 2). For the metal frame, drill two Ø5mm holes (A) 24mm above and below the ‘X’ mark on the template.
-
Page 7: Strike Installation
STRIKE INSTALLATION For metal door frames, fit door mounting brackets. Once door frame preparation is complete, temporarily fit strike into door frame to check for interference. Check that the door closes smoothly and that the latch extends fully past the strike keeper. 10. -
Page 8: Maintenance, Storage, And Disposal
*Only Part Numbers: Lockwood: ES110-2M, Trimec: 110112-060M, 110112-150M, 110112-160M, 110112-190M, 110112-140M RCM Australia & New Zealand Hereby, ASSA ABLOY Australia Pty Ltd declares that the ES100/ES110 Series Electric Strike is in compliance with the Regulatory Compliance Mark (RCM) for Australia and New Zealand.
