Model No.: CL-2001-22.2V-A
Rev 1
Note: The specifications and/or components of this appliance are subject to change without prior notice.
If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand)
for an immediate replacement. This will save you from returning the product to the store.
If we can assist you in any other way, please feel free to contact us.

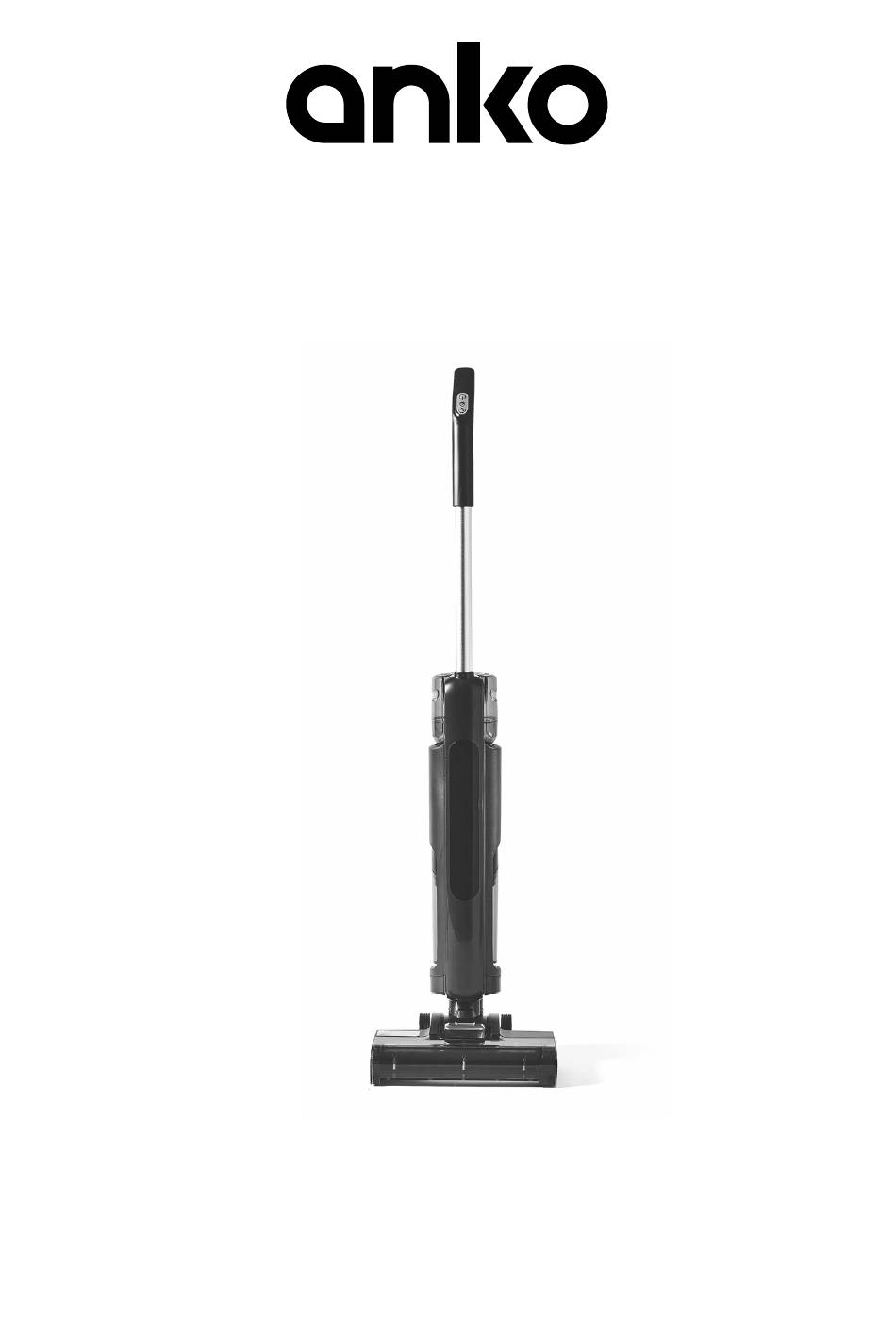

Cordless Hard Floor Cleaner
For Household Use Only
Advertisement
Table of Contents
Related Manuals for anko CL-2001-22.2V-A
Summary of Contents for anko CL-2001-22.2V-A
- Page 1 Cordless Hard Floor Cleaner For Household Use Only Model No.: CL-2001-22.2V-A Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice. If any Accessories should fail during use, please call 1300 105 888 (Australia) or 09 8870 447 (New Zealand) for an immediate replacement.
-
Page 2: Table Of Contents
IMPORTANT SAFEGUARDS ................3 Floor Surfaces..................... 7 Components ......................8 Attaching the Handle ..................9 Charging the Battery ..................9 Floor Preparation ....................11 Filling the Water Solution Tank ............... 11 Operation ......................13 On / Off Button ....................13 Water Dispensing Indicator ................ -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Please read this instruction manual carefully before first use. Keep this instruction manual for future reference. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 DO NOT charge the product with an external timer or separate remote-control system. DO NOT use or operate the appliance with a damaged charger cord or plug. DO NOT use the appliance if it has been dropped, damaged, left outdoors, or dropped into liquid (water etc.).
- Page 5 Important: Only mix the ratio of cleaning solution to water as instructed on the cleaning solution bottle. Do Not add more cleaning solution than that specified on the cleaning solution container. WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.
- Page 6 If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. IMPORTANT: Should you find any abnormal fluid or residue seeping out of the appliance body around or below the charging port, this could be an indication that the battery is leaking.
-
Page 7: Floor Surfaces
Floor Surfaces This product is only designed for cleaning hard smooth surfaces and not carpeted or rough surfaces. Always follow manufacturer's cleaning instructions. If unsure, DO NOT USE! DO NOT add any other agents into the water tank, such as, rust removers, odour counter reacting agents, alcohol, solvents, strong acidic or strong alkali formulas or any type of cleaning solution not specifically for use in this type of cleaning appliance as this may cause serious injury to the user and... -
Page 8: Components
Components Handle Location Hole Self-Clean Storage Base Cleaning Solution / Water Tank Floor Head Main Unit Handle Display Panel Battery Charger ZD12D260050AU Dirty Water Collection Tank Control Panel Page 8 of 28... -
Page 9: Attaching The Handle
Attaching the Handle Assembly of the Handle is required when you receive your appliance. It is shipped this way to reduce the packing size and reduce packing material waste. No Tools are required to assemble the handle to the main unit. Set the Appliance in an upright position. - Page 10 To charge the battery, insert the small round plug of the battery charger into the • charging socket located on the side of the main unit as shown. Plug the body of the battery charger in the power point and switch on. •...
-
Page 11: Floor Preparation
Floor Preparation IMPORTANT: Using the Appliance as a dry vacuum will damage the Rotary Brush and the appliance. Only use the Appliance with an appropriate Hard Floor cleaning solution for use in this type of appliance. Remove as much furniture as possible. •... - Page 12 Switch off the Appliance and remove the battery charger if on charge. Remove the Cleaning Solution / Water Tank by pressing down on the top of the tank, pull forward and lift out. Unscrew the cap (anticlockwise) and remove. Following the instructions on the cleaning solution bottle, add the cleaning solution and warm tap water (max.
-
Page 13: Operation
Replace the Cleaning Solution / Water Tank Cap and tighten clockwise. Do not over tighten. Replace the Cleaning Solution / Water Tank back into position as shown and push it in firmly until it clicks in place. Repeat steps 1, 2 and 3 above to empty the Cleaning Solution / Water Tank and rinsing clean after use and before storage. -
Page 14: Water Dispensing Indicator
Water Dispensing Indicator With the appliance switched on, in the default Low Water Dispensing Level, press • and release the Water button and the water will change to dispense a higher quantity of water onto the rotary floor brush, and at the same time, the White indicator light will change to Red colour. -
Page 15: Using The Cleaner
Using the Cleaner Place your foot on the floor head to hold it down, and at the same time pull the handle backward to unlatch it from the parking position and into the cleaning position. Press the On/Off button on the handle, to turn the appliance on, and set the water •... -
Page 16: Cleaning And Maintenance
Allow plenty of time for the floor to dry and avoid walking on it until it is completely dry. Increased air circulation (open doors, fans, etc.) or the use of a dehumidifier will help the floor dry thoroughly. Vacuum the floor thoroughly before cleaning it. Cleaning and Maintenance Important: Risk of injury! Improper handling of the appliance may cause injury. - Page 17 Take the tank to your sink to empty out. • Remove the filter by grasping the filter frame and pull straight out. Place the filter • aside for washing. Open the Dirty Water Collection Tank by grasping the top section and pull straight •...
-
Page 18: Cleaning The Filter
Rinse the top section and its components in clean fresh warm water (max. 40°C) • ensuring the water float is free to move up and down and then refit to the Dirty Water Collection Tank. Do Not clean the components with petrol, solvents, any other flammable liquids, harsh abrasives, etc. - Page 19 • Open the filter cage and remove the foam filter. Rinse the filter with warm water (max. 40°C) and allow the filter to thoroughly dry • before next use. DO NOT scrub or place the filter in a dishwasher. DO NOT wring or use a hair dryer to dry the filter. Refit the Foam Filter back in its cage and close the cage.
-
Page 20: Cleaning The Rotary Brush And Cover
Cleaning the Rotary Brush and Cover IMPORTANT: The Rotary Brush and inner floor head must be cleaned regularly for best performance and to prevent damage to your appliance. Cleaning is best done immediately after you have finished cleaning for the day and when the Dirty Water Collection Tank is emptied. - Page 21 • Grasp the end of the rotary brush, with the location bearing, and pull straight up, then lift the rotary brush out. Rinse the Rotary Brush with warm water (max. 40°C) and then allow the Rotary • Brush to thoroughly dry in the DO NOT scrub or place the rotary brush in a dishwasher.
-
Page 22: Self-Cleaning
At the same time as cleaning the Rotary Brush, the rotary brush cover and the rotary • brush recess in the floor head should be cleaned. Clean the Cover and the recess with mild detergent and like warm water then rinse •... -
Page 23: Cleaning The Main Unit
Press and hold the Self Clean button on the handle for approximately 2 second until • the unit starts. Allow the unit to run through its self-clean cycle. The appliance will turn off when • the self-clean cycle has completed, or you can stop this function earlier by pressing the On/Off button. -
Page 24: Completion And Storage
10 Completion and Storage After you have finished using the Appliance, switch it off. • • Mineral deposits and mildew can form when the cleaning solution and/ or water is left in the tanks, affecting the performance of the product. Do not store the product with the cleaning solution left in the water solution tank or dirty water left in the Dirty Water Collection Tank. -
Page 25: Troubleshooting
11 Troubleshooting Problem Cause Remedy Dirty Water Collection Tank is full Empty out Tank Remove items from the rotary floor brush Rotary Floor Brush is jammed causing the jam Appliance will not turn Battery is not charged Charge the battery 4 – 5 hours Battery charger is plugged into the Remove the battery charger from the appliance. - Page 26 Fit Rotary Floor Head to appliance before Rotary Floor Head is missing use. Filter in the top of the Dirty Water Fit the Filter into the top of the Dirty Water Collection Tank is missing Collection Tank The filter and screen is dirty / blocked Clean the filter and filter screen Dirty Water Collection Tank not fitted Ensure the Dirty Water Collection Tank is...
-
Page 27: Warranty Against Defect
12 Warranty Against Defect 12 Month Warranty Thank you for your purchase. Your new product is warrantied to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. - Page 28 Page 28 of 28...
