Sunny Health & Fitness SMART SF-RW1205 User Manual

Sunny Health & Fitness SMART SF-RW1205 User Manual

Compact adjustable rowing machine
Hide thumbs Also See for SMART SF-RW1205:

Advertisement

Table of Contents

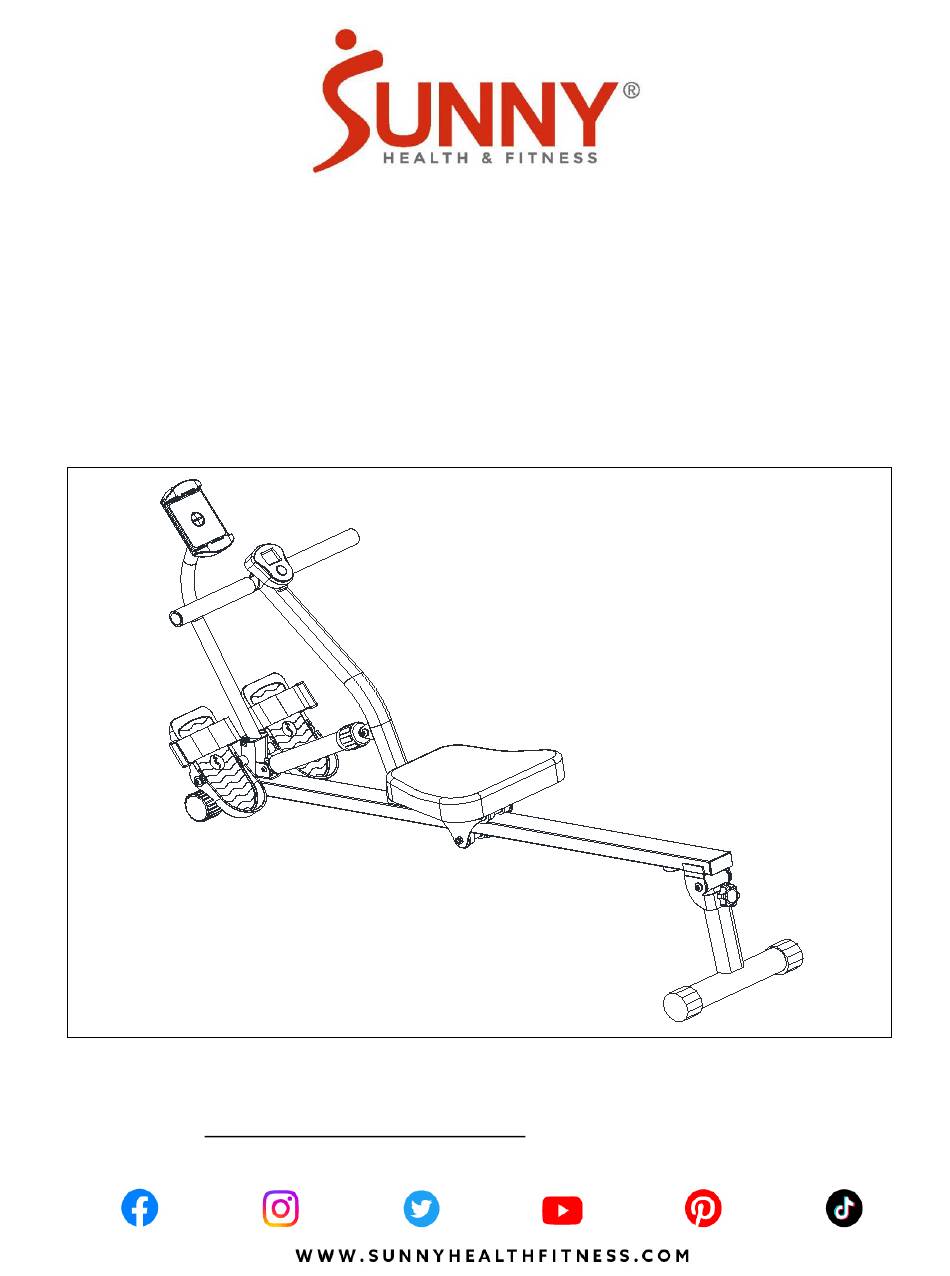

SMART COMPACT ADJUSTABLE
ROWING MACHINE
SF-RW1205 SMART
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART SF-RW1205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny Health & Fitness SMART SF-RW1205

Summary of Contents for Sunny Health & Fitness SMART SF-RW1205

  • Page 1 SMART COMPACT ADJUSTABLE ROWING MACHINE SF-RW1205 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Description Spec. Qty. Description Spec. Qty. Main Frame Allen Wrench Handlebar Allen Wrench Meter Spanner S10-13-17 Phone Holder Battery Assembly Thank You Card Bolt M8*39 User Manual...

  • Page 4: Hardware Package

    HARDWARE PACKAGE #41 M8*39 1PC #42 S6 1PC #27 M8 1PC #43 S4 1PC #44 S10-13-17 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Loosen and remove the Adjustment Knob (No. 35) and unfold the Rear Stabilizer (No. 38).
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 2: #41 M8*39 1PC #42 S6 1PC Attach the Hydraulic Cylinder (No. #27 M8 1PC #44 S10-13-17 1PC 9) to the bracket on the Front Support Tube (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 4: #31 M6*15 2PCS #15 φ 6.4* φ 12*1.2 2PCS Remove 2 Bolts (No. 31) and 2 Flat #43 S4 1PC Washer (No.

  • Page 8: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT Battery Battery Cover BATTERY INSTALLATION: 1. Take out 2 AA batteries from the meter box. 2. Press the buckle of battery cover on the Meter (No. 4), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Meter (No. 4). Pay attention to the battery + and –...
  • Page 9 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE TENSION To adjust the tension level, turn the adjustment knob on the Hydraulic Cylinder (No. 9) to the desired level. The tension levels range is from Level 1 to Level 12, with Level 1 being the lowest resistance. ADJUSTING THE BALANCE Before using your product, check the balance of the product to ensure that it is safe for use.
  • Page 10 EXERCISE METER Our exercise meter on the Sunny Rowing Machine allows the user to tailor a personalized workout by monitoring their progress. During a workout, the exercise meter will alternately and repeatedly display your Time, Count, Calories, Total Count, and Scan (alternates all of the above).
  • Page 11 APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3.

  • Page 12: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. φ25 Bolt M8*82 φ23*φ33*205 Sponge Bearing 608ZZ φ38*φ31*68 Handlebar Roller φ11*1.4*53.8 Meter Casing Pipe for Idler Wheel Bolt M8*35 φ8.2*φ16*1.5 Arc Washer Seat Front Support Tube Seat Support Phone Holder Bolt Assembly φ38*300 Hydraulic Cylinder Bolt...

  • Page 13: Exploded Diagram

    EXPLODED DIAGRAM 24 25 16 17 Version: 1.0...
