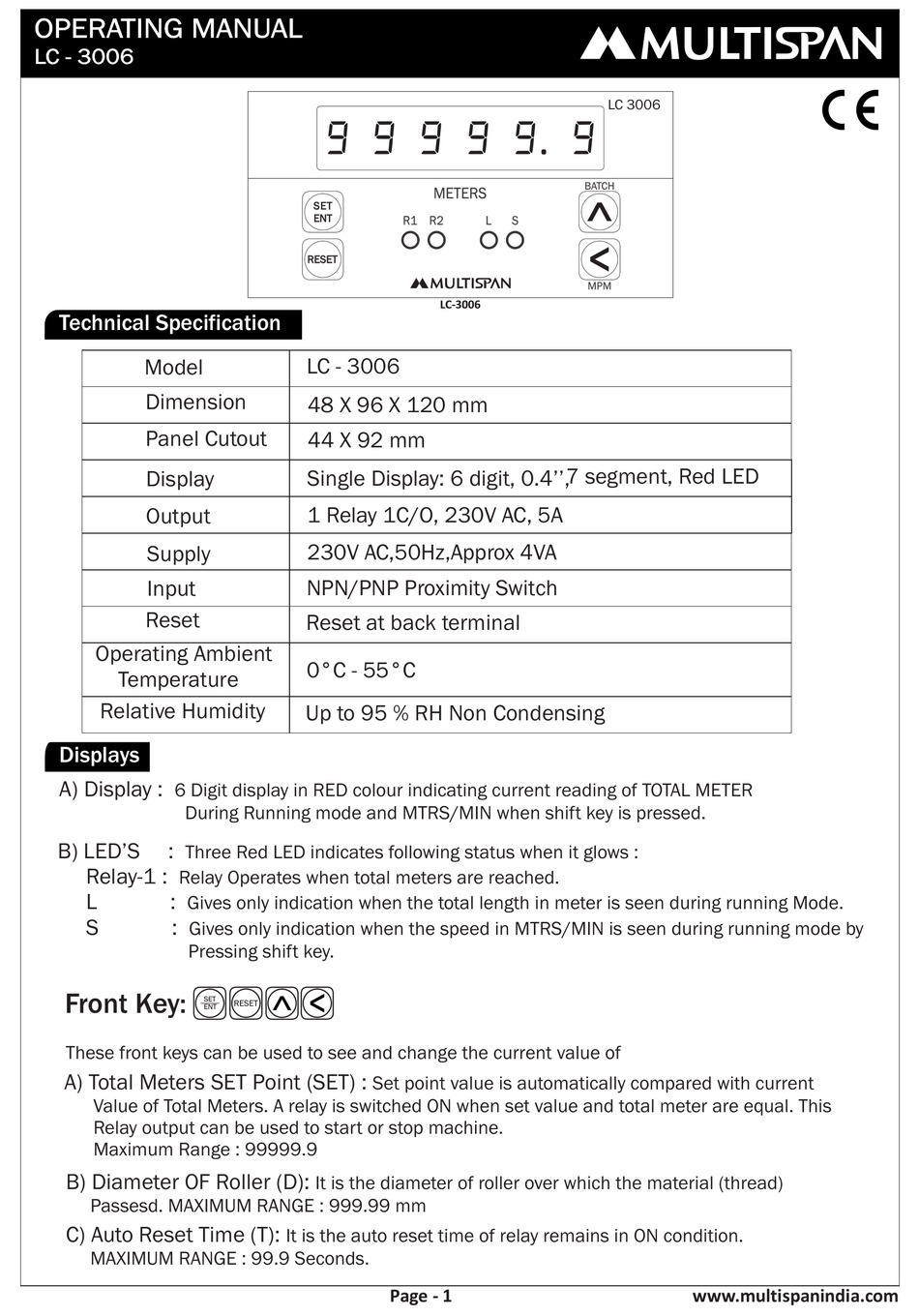

MULTISPAN LC-3006 Operating Manual

OPERATING MANUAL

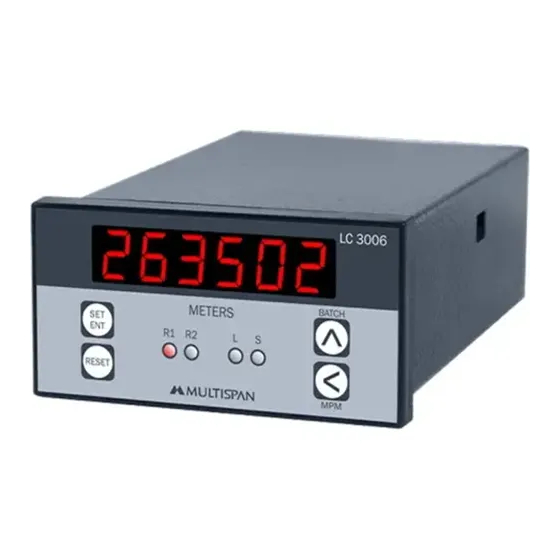

LC - 3006

Technical Specification

Model
Dimension
Panel Cutout
Display
Output
Supply
Input
Reset
Operating Ambient
Temperature
Relative Humidity

Displays

A) Display :
6 Digit display in RED colour indicating current reading of TOTAL METER
During Running mode and MTRS/MIN when shift key is pressed.
B) LED'S :
Three Red LED indicates following status when it glows :
Relay-1 :
Relay Operates when total meters are reached.
L :
Gives only indication when the total length in meter is seen during running Mode.
S :
Gives only indication when the speed in MTRS/MIN is seen during running mode by
Pressing shift key.
Front Key:
SET
ENT
These front keys can be used to see and change the current value of
A) Total Meters SET Point (SET) :
Value of Total Meters. A relay is switched ON when set value and total meter are equal. This
Relay output can be used to start or stop machine.
Maximum Range : 99999.9
B) Diameter OF Roller (D):
Passesd. MAXIMUM RANGE : 999.99 mm
C) Auto Reset Time (T):
MAXIMUM RANGE : 99.9 Seconds.
9 9 9 9 9. 9
LC - 3006
48 X 96 X 120 mm
44 X 92 mm
Single Display: 6 digit, 0.4'',
1 Relay 1C/O, 230V AC, 5A
230V AC,50Hz,Approx 4VA
NPN/PNP Proximity Switch
Reset at back terminal
0°C - 55°C
Up to 95 % RH Non Condensing
RESET
Set point value is automatically compared with current
It is the diameter of roller over which the material (thread)
It is the auto reset time of relay remains in ON condition.
Page - 1
LC 3006
LC-3006
7 segment, Red LED
www.multispanindia.com
