G 3000 C
English
2
(11/24)
59795340

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 3000 C and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher G 3000 C

Summary of Contents for Kärcher G 3000 C

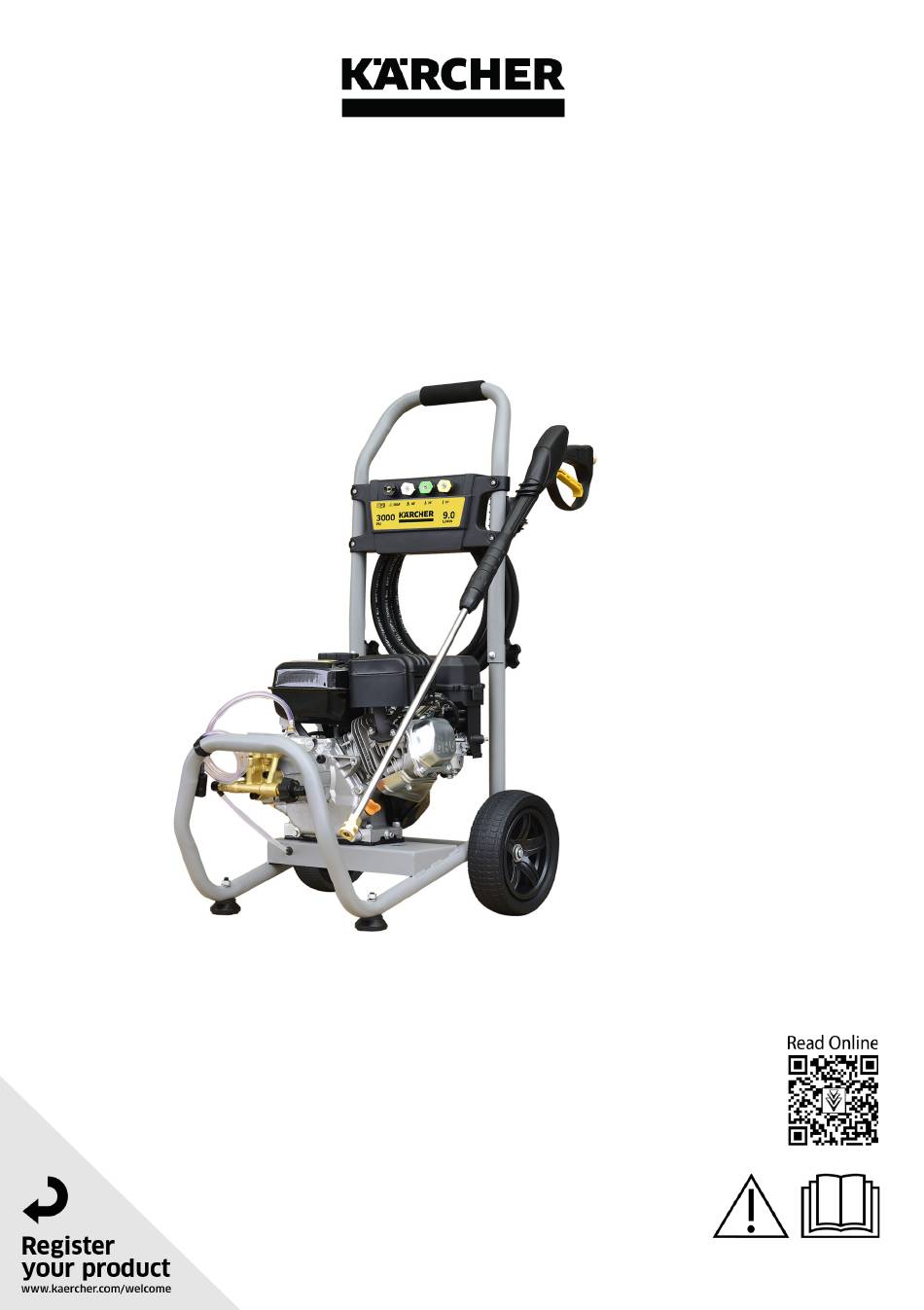

  • Page 1 G 3000 C English (11/24) 59795340...

  • Page 2: Table Of Contents

    Contents General safety instructions DANGER ● Risk of asphyxiation. Keep pack- Safety instructions ..........aging film out of the reach of children. Environmental protection........WARNING ● Only use the device for its proper Intended use............use. Take into account the local conditions and beware Accessories and spare parts .......

  • Page 3: Environmental Protection

    Use the high-pressure cleaner in private households ATTENTION ● Only use the device on surfaces only. that are not sensitive to moisture. ● First check the ef- Never operate the device in confined spaces. fect of the device at an inconspicuous place, especially The device is intended for cleaning machines, vehicles, on sensitive surfaces such as e.g.

  • Page 4: Device Description

    Device description English...

  • Page 5: Safety Devices

    Supplied mounting parts Handle Hook and loop strip Jet nozzle Low-pressure jet: – Black (SOAP) High-pressure jet: – White, 40° jet angle – Green, 25° jet angle – Yellow, 15° jet angle High-pressure gun holder High-pressure gun Detergent suction hose High-pressure spigot Star grip nuts (2 pieces) Detergent filter...

  • Page 6: Symbols On The Device

    Symbols on the device Note Removal is performed in the reverse sequence. Do not connect the device directly to the Installing the high-pressure gun holder public drinking water network. 1. Install the high pressure gun holder on the handle with the screw, snap ring and washer. Do not direct the high-pressure jet at per- sons, animals, live electrical equipment or at the device itself.

  • Page 7: Initial Startup

    Installing the spray lance on the high- 3. Fit the high-pressure hose into the high-pressure pressure gun spigot and hand-tighten the union nut. 1. Screw the spray lance onto the high-pressure gun and hand-tighten the union nut. 4. Fit the high-pressure hose into the high-pressure gun and hand-tighten the union nut.

  • Page 8: Operation

    1. Attach the coupling socket of the water hose to the Operation without detergent coupling plug. 1. Unlock the trigger of the high-pressure gun, see 2. Connect the water hose to the water tap of the water Trigger lock. line. ATTENTION 3.

  • Page 9: After Operation With Detergent

    1. Providing the detergent: Replacing the jet nozzle a Unwind the detergent suction hose completely DANGER and lay it out without knots, loops, twists or kinks. Danger to life and risk of injury from the high-pres- b Submerge the detergent filter in a container with sure water jet! detergent.

  • Page 10: Ending Operation

    Storage Ending operation 1. Close the water tap. CAUTION 2. Depressurize the device, see Depressurising the Risk of injury or damage due to the weight of the de- device. vice! 3. Lock the trigger of the high-pressure gun, see Trig- Injury and damage.

  • Page 11: Engine Maintenance

    Engine maintenance 1. Service the engine according to the instructions in the engine operating instructions. Clean water sieve (monthly) ATTENTION Risk of damage due to missing or damaged water sieve! When operating without a water sieve or with a dam- aged one, contamination may enter the device and damage it.

  • Page 12: Troubleshooting Guide

    Troubleshooting guide Malfunctions often have simple causes that you can doubt, or in the case of malfunctions not mentioned remedy yourself using the following overview. When in here, please contact your authorised Customer Service. Fault Cause Rectification The engine does not Various causes possible.

  • Page 13: Warranty

    Fault Cause Rectification The detergent is not A high-pressure jet nozzle is mounted on 1. Install the black low pressure stream jet sucked in. the spray lance. nozzle (SOAP) on the spray lance, see Replacing the jet nozzle. The detergent suction hose is kinked, 1.
  • Page 16 THANK YOU! MERCI! DANKE! ¡ GRACIAS! Registrieren Sie Ihr Produkt und profitieren Sie von vielen Vorteilen. Register your product and benefit from many advantages. Enregistrez votre produit et bénéficier de nombreux avantages. Registre su producto y aproveche de muchas ventajas. www.kaercher.com/welcome Bewerten Sie Ihr Produkt und sagen Sie uns Ihre Meinung.
