Kärcher G 3200 XH Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Manual not for use
G 3200 XH
in USA and Canada!
8.752-801.0 05/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 3200 XH and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher G 3200 XH

Summary of Contents for Kärcher G 3200 XH

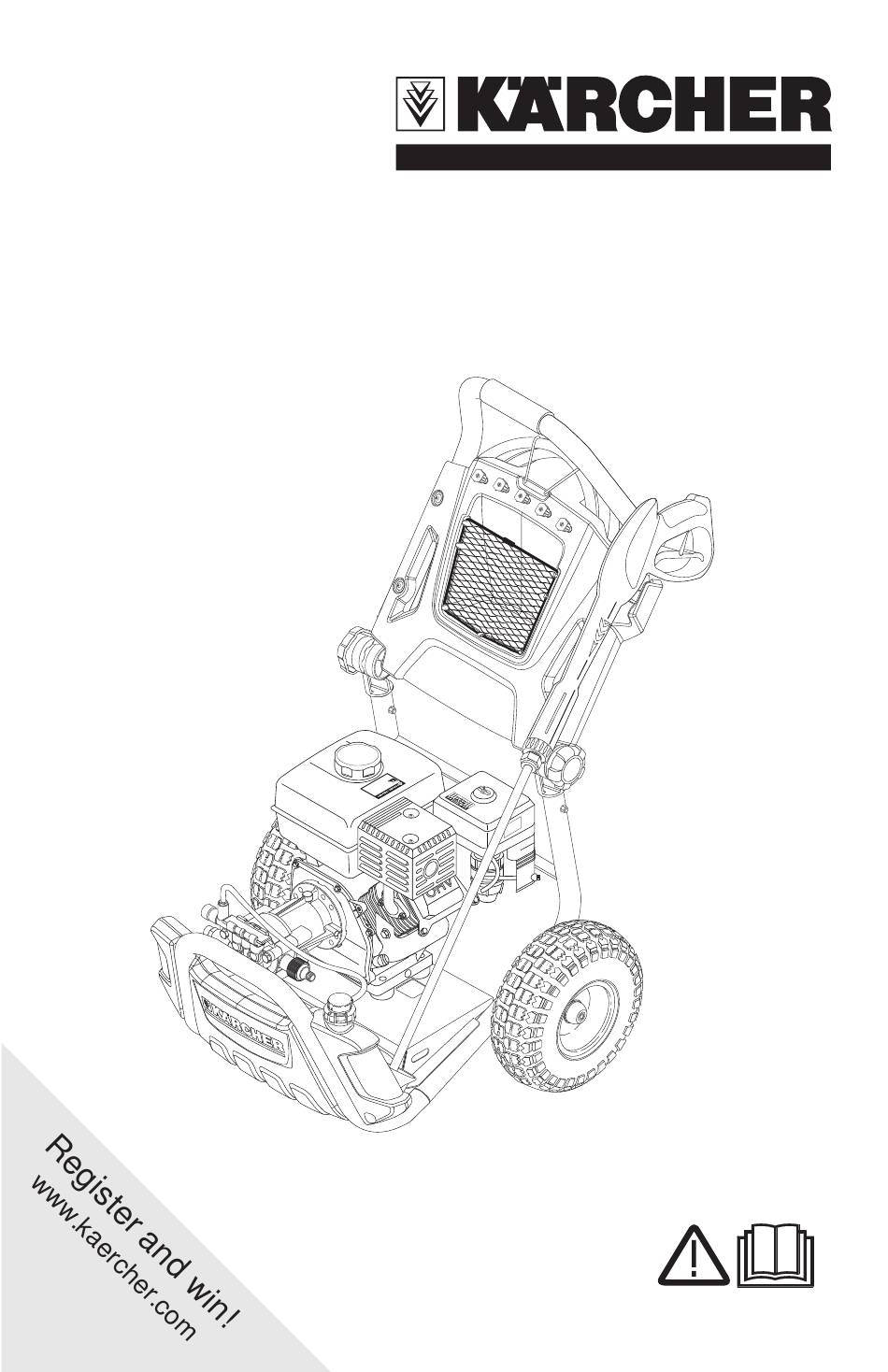

  • Page 1 ® Manual not for use G 3200 XH in USA and Canada! 8.752-801.0 05/12...

  • Page 2: Table Of Contents

    HIGH PRESSURE WASHER OPERATOR MANUAL Proper Use Dear Customer, Please read and comply with these This high-pressure cleaner is designed: original instructions prior to the initial – to clean machines, vehicles, buildings, tools, operation of your appliance and store them for later facades, terraces, garden equipment etc.
  • Page 3 HIGH PRESSURE WASHER OPERATOR MANUAL Symbols on the machine Safety Alert Symbols The high pressure jet may not be DANGER directed at persons, animals, live Indicates “an imminently hazardous situation electrical equipment or at the ap- which, if not avoided, will result in death or seri- pliance itself.

  • Page 4: Model Overview

    MODEL OVERVIEW Handle Water Inlet With Garden Hose Connector Trigger Gun Quick Connect High Pressure Outlet Trigger Gun Safety Lock 10. Detergent Tank High Pressure Hose 11. Detergent Metering Valve and Detergent Suction Tube Gas Tank 12. Quick Connect Nozzles Spray Wand 13.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS ■ ■ Read the operating instructions of the engine Do not use acids, solvents, or any fl ammable manufacturer before start-up and follow the or alkaline material in this product. These safety instructions carefully. products can cause physical injuries to the operator and irreversible damage to the ma- WARNING chine.

  • Page 6: Assembly Instructions

    WATER SUPPLY (Cold Water Only) ■ CAUTION Flow rate of water supply must not fall below 9.5 L/Min. When connecting to water supply ■ mains, local regulations of your Flow rate can be determined by running the municipal water company must water for one minute into an empty 19 L con- be observed.
  • Page 7 Description Purpose Illustration Tank Detergent tank Spray Gun Spray Gun Assembly Quick Connect Nozzles Kit Assembly Nozzle Kit (5 pc.) Assembling STEP 1: STEP 3: Insert joints (A) into handle. Use one 6 mm Mount the detergent tank (H) to the bumper, (1/4") bolt (C) and tighten with one 6 mm (1/4") insert anchor rivets (F) and install them by nut (B) on each side.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS CAUTION CAUTION High pressure in quick connect area. Allow the engine to cool down before folding Risk of injury caused by improperly locked down the handlebar for storage. high pressure hose. ■ Make sure you hear the "click" when inserting the high pressure hose into the quick connec- HOT! tion.

  • Page 10: Using The Accessories

    OPERATING INSTRUCTIONS STEP 11: After the engine warms up enough to run smoothly, move choke rod to OFF position. Pull the starter handle. If the engine fails to start after 3 pulls, squeeze the trigger gun to release pressure, and repeat step. For engine details see engine manual.

  • Page 11: Taking A Break

    WORKING WITH DETERGENTS STEP 5: STEP 3: With the engine running, pull trigger to operate Connect detergent suction tube by firmly unit. Liquid detergent is drawn into the unit inserting into pressure washer’s pump. and mixed with water. Apply detergent to work area. Do not allow detergent to dry on surface.

  • Page 12: Shutting Down & Clean-Up

    SHUTTING DOWN & CLEAN-UP STEP 1: STEP 5: If detergents have been used, remove deter- Release trigger and engage gun safety lock. gent suction tube from container and insert into 3.78 liters of fresh water. Siphon water at low pressure for one minute to clear the line of residual detergent.

  • Page 13: Cleaning Tips

    CLEANING TIPS Deck Cleaning Cars, Boats & Motorcycles (with or without detergent). Pre-rinse deck and (with or without detergent). Pre-rinse vehicle surrounding area with fresh water. If using Kärcher with fresh water. If using Kärcher Vehicle Wash, Deck Wash, apply to surface at low pressure. For apply to surface at low pressure.

  • Page 14: Troubleshooting

    CLEANING TIPS Recommendations Optional Accessories ■ Before cleaning any surface an inconspicuous Optional accessories are available to further area should be cleaned to test spray pattern enhance your cleaning capabilities. These acces- and distance for maximum cleaning results. sories are accurate as of the printing date of this ■...
  • Page 15 TROUBLESHOOTING Symptom Cause Solution NO DETERGENT Detergent suction tube not Check connection properly connected to the machine Detergent is too thick Dilute detergent, for best results use Kärcher detergent Filter on detergent suction Run warm water through fi lter to remove debris tube is clogged Damaged or clogged deter-...
  • Page 16 Alfred Kärcher Ges.m.b.H. Kärcher OY Kärcher AS Karcher Asia Paci c Pte. Ltd. Lichtblaustraße 7 Yrittäjäntie 17 Stanseveien 31 5 Toh Guan Road East 1220 Wien 01800 Klaukkala 0976 Oslo #01-00 Freight Links ☎ (01) 250 600 ☎ ☎ 0207 413 600 24 17 77 00 Express Distripark Singapore 608831...
