Kärcher G 3050 OH Operator's Manual

Hide thumbs Also See for G 3050 OH:
Table of Contents

Advertisement

Quick Links

®
Manual not for use

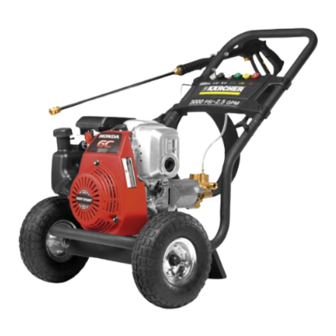

G 3050 OH
in USA and Canada!
8.752-858.0 06/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 3050 OH and is the answer not in the manual?

Questions and answers

Related Manuals for Kärcher G 3050 OH

Summary of Contents for Kärcher G 3050 OH

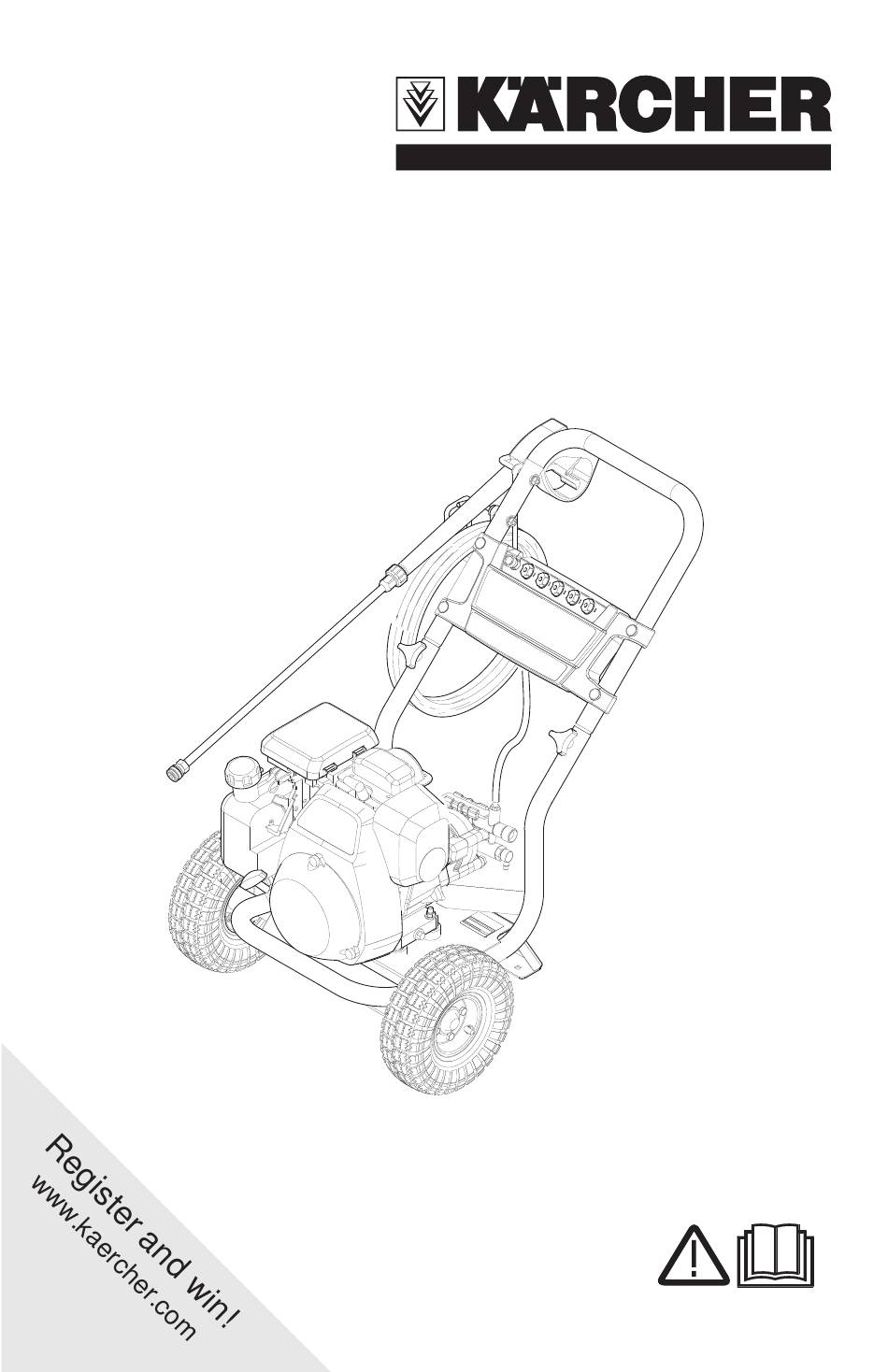

  • Page 1 ® Manual not for use G 3050 OH in USA and Canada! 8.752-858.0 06/13...

  • Page 2: Table Of Contents

    Troubleshooting dispose your old appliances using appropriate collection systems. Notes about the ingredients (REACH) Specifi cations You will fi nd current information about the ingre- G 3050 OH AUS dients at: Operating Pressure 3000 PSI http://www.karcher.de/de/unternehmen/ Water Volume 9.5 L/Min umweltschutz/REACH.htm...
  • Page 3 HIGH PRESSURE WASHER OPERATOR MANUAL Symbols on the machine Safety Alert Symbols The high pressure jet may not be di- DANGER rected at persons, animals, live electri- Indicates “an imminently hazardous situation cal equipment or at the appliance itself. which, if not avoided, will result in death or seri- Protect the appliance against frost.

  • Page 4: Model Overview

    MODEL OVERVIEW Handle Water Inlet With Garden Hose Connector Trigger Gun Quick Connect High Pressure Outlet Trigger Gun Safety Lock 10. Detergent suction tube with fi lter High Pressure Hose 11. Quick Connect Nozzles Gas Tank 12. Spark plug Spray Wand 13.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS ■ ■ Read the operating instructions of the engine Do not use acids, solvents, or any fl ammable manufacturer before start-up and follow the or alkaline material in this product. These safety instructions carefully. products can cause physical injuries to the operator and irreversible damage to the ma- WARNING chine.

  • Page 6: Assembly Instructions

    WATER SUPPLY (Cold Water Only) ■ CAUTION Flow rate of water supply must not fall below 10.6 L/Min. When connecting to water supply ■ mains, local regulations of your Flow rate can be determined by running the municipal water company must water for one minute into an empty 19 L con- be observed.
  • Page 7 Hardware (included) Description Purpose Illustration High Pressure Spray Gun Assembly Hose Spray Gun Spray Gun Assembly Quick Nozzles Kit Assembly Connect Nozzle Kit (5 pc.) Wand Wand Assembly Nylon Rivet Gun Holder Assembly Assembling STEP 1: STEP 3: Attach the handle to the frame of the pres- Mount the nozzle holder (F) to the handle, sure washer.

  • Page 8: Operating Instructions

    Assembling STEP 5: Attach the wand to the spray gun. Push the wand (J) into the trigger gun (H) and then thread the connection until tight. OPERATING INSTRUCTIONS STEP 2: STEP 1: Attach the high pressure hose to the trigger Pull the spring-loaded collar of the wand gun.
  • Page 9 OPERATING INSTRUCTIONS STEP 10: STEP 4: Move the engine stop switch to the ON posi- Fill gas tank with unleaded gasoline. tion. Do not use leaded gasoline. Do not add oil to the gasoline. STEP 5: Connect the high pressure hose to the high pressure outlet on the pump .

  • Page 10: Using The Accessories

    USING THE ACCESSORIES 40° spray angle = White nozzle Quick connect nozzles For moderate dirt accumulation over a large The color-coded quick connect nozzles provide a surface. wide array of spray widths from 0° to 65° and are easily accessible when placed in the convenient nozzle holder.

  • Page 11: Taking A Break

    WORKING WITH DETERGENTS STEP 3: STEP 4: With the engine running, pull trigger to operate Always draw fresh water through the deter- unit. gent suction tube when the cleaning job is done, to rinse/fl ush any remaining detergents Liquid detergent is drawn into the unit and from the injection system.

  • Page 12: Long Term Storage

    LONG TERM STORAGE 1: Disconnect all water connections. CAUTION 2: Turn on the machine for a few seconds, until Failure to follow the above directions will the water which had remained in the pump result in damage to the pump assembly and exits, turn off immediately.
  • Page 13 CLEANING TIPS Cement Patios, Brick and Stone Patio & Lawn Furniture (with or without detergent). Pre-rinse furniture (with or without detergent). Pre-rinse cleaning and surrounding area with fresh water. If using surface with fresh water. If using Kärcher Pres- Pressure Wash, apply to surface at low pressure. sure Wash or Degreaser, apply to surface at low Allow Pressure Wash to remain on surface 1-3 pressure.

  • Page 14: Troubleshooting

    TROUBLESHOOTING CAUTION Remove the spark plug cable to prevent accidental ignition of the engine before making any repair. Symptom Cause Solution ENGINE WILL NOT No gasoline Fill gas tank START Choke is not in the correct Slide choke lever out to closed position position Water pressure built up in Squeeze the trigger to release the pressure...
  • Page 15 Symptom Cause Solution NO DETERGENT Detergent suction tube not Check connection properly connected to the machine Detergent is too thick Dilute detergent, for best results use Kärcher detergent Filter on detergent suction Run warm water through fi lter to remove debris tube is clogged Damaged or clogged deter-...
  • Page 16 Alfred Kärcher Ges.m.b.H. Kärcher OY Kärcher AS Karcher Asia Paci c Pte. Ltd. Lichtblaustraße 7 Yrittäjäntie 17 Stanseveien 31 5 Toh Guan Road East 1220 Wien 01800 Klaukkala 0976 Oslo #01-00 Freight Links ☎ (01) 250 600 ☎ ☎ 0207 413 600 24 17 77 00 Express Distripark Singapore 608831...
