Summary of Contents for Kärcher G 3500 Plus

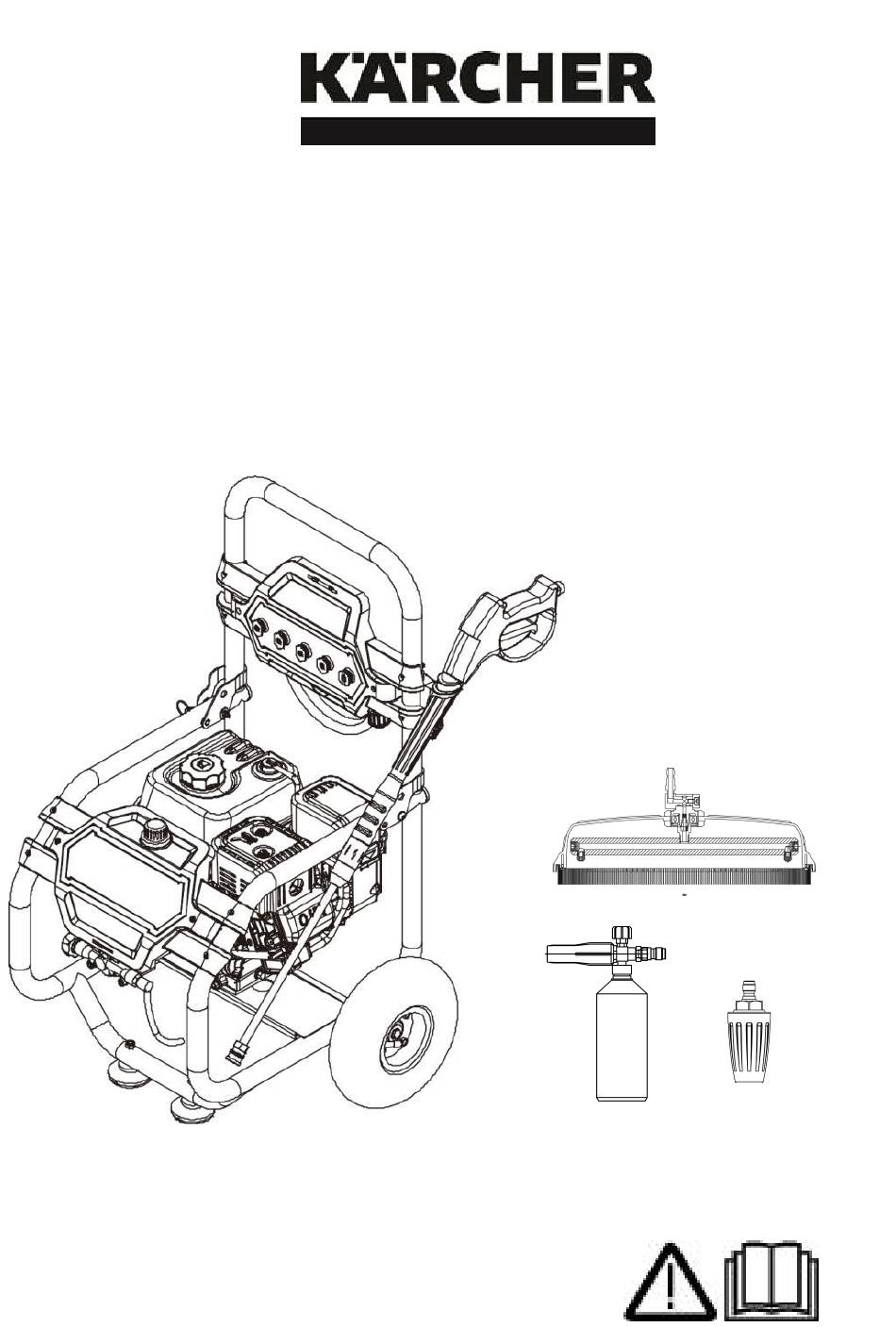

- Page 1 G 3500 Plus G3500 Plus Petrol Pressure Washer 9.507-267.0...
- Page 2 Machine Part List 1. Spray Gun 2. Nozzles 3. Muffler 4. Air Filter 5. Throttle Lever 6. Choke Lever 7. Fuel Valve 8. Detergent Tank Cap 9. Detergent Tank 10. Petrol Tank Cap 11. Petrol Tank 12. Hand Cord 13. Engine Switch 14.
- Page 3 Page 3...
-
Page 4: Table Of Contents
Troubleshooting ....19 Indicates “a potentially hazardous situation which, if not avoided, may Specifications result in minor or moderate injury or in property damage incidents. G 3500 Plus Max Pressure 3500 PSI Rated Pressure 3000PSI Water Volume 9.0 L/min... -
Page 5: Safety Instructions
Safety Instructions When using this product, basic precautions should always be followed, including the following: ● Read the operating instructions of the engine manufacturer before start-up Risk of injection or injury – Do not and follow the safety instructions direct discharge stream at persons. carefully. - Page 6 ● Do not leave machine running unat- tended. ● Avoid tipping machine on its side. Water Supply (Cold Water Only) Risk of asphyxiation – Use this product only in a well ventilated area. Running this product indoors can result in death due to Carbon When connecting to water supply Monoxide, a poisonous gas you mains, local regulations of your...
-
Page 7: Assembly Instructions
Assembly Instructions Part List D - Pressure Hose E- Wheels F-Tap Adapter and Water Filter A - Main Frame G-15” Surface Cleaner B - Gun Hook & Bolts C -Spray Gun & Wand Page 7... - Page 8 Assembling 1. Install the wheels to the main frame by pressing the spring loaded pin on wheel axle, then insert wheel axle into frame. Ensure that the spring pin is fixed in position. Repeat for the other wheel. H-Foam Cannon 2.
-
Page 9: Preparation
3. Attach the handle and main frame 1. Remove the filler cap/dipstick with bolts. and wipe it clean. 2. Insert and remove the dipstick without screwing it into the filler neck. Check the oil level shown on the dipstick. Preparation 3. - Page 10 Fuel Level Air Filter Make sure there is enough fuel in The air filter should be checked the fuel tank before operating. This after prolonged storage, the is a 4-cycle engine and does not following steps should be done require a Petrol/oil mixture. There is when checking the air filter.
-
Page 11: Operating Instructions
4. Inspect both air filter elements, and Operating Instructions replace them if they are damaged. Always replace the paper air filter element at the scheduled interval. Starting Procedure: 5. Clean the air filter elements if they 1. Connect garden hose. are to be reused. - Page 12 Always relieve spray gun pressure 3. Open water source. before pulling starter cord. Pull starter cord slowly until resistance is felt, then pull rapidly. ► STEP 1: Turn the engine switch to "ON" position. ► STEP 2: Move choke lever to "COLD START"...
-
Page 13: Using The Accessories
15” Surface Cleaner Using the Accessories Quick Connect Nozzles The color-coded quick connect nozzles provide a wide array of spray widths from 0° to 40° and are easily accessible when placed in the convenient nozzle holder. Connect the adaptor to the 1/4” quick connector of high pressure SOAP gun. - Page 14 Add detergent concentrate to the canister and top with water, spray luxurious soap. This accessory turns your pressure High pressure in nozzle area. Risk of washer into a personal car wash! injury caused by improperly locked nozzle. ● Make sure you hear the "click" when inserting the nozzle tip into the quick connection.
-
Page 15: Working With Detergents
The use of other cleaning detergent Working with Detergents may affect the operation of the machine and void the warranty. Detergents can only be applied Always Use Kärcher Detergent for with the black detergent nozzle. Best Results. ● Install the black detergent nozzle for Kärcher biodegradable detergents detergent application at low pressure. -
Page 16: Taking A Break
Taking a Break ● Turn engine switch to the OFF position..five minutes or more ● Disconnect all hoses. ● Unscrew cap from Pump Guard ● Move the engine stop switch to the bottle. OFF position. ● Remove internal seal. ●... -
Page 17: Maintenance Instructions
Rinse at high pressure in a long Maintenance Instructions sweeping motion keeping the spray nozzle approximately 8-15cm (3-6 Pump inches) from the cleaning surface. Always clean from top to bottom and from left to right. When moving on to a Pump Inspection new section of the cleaning surface, You should routinely make a visual... - Page 18 cleaner, apply to surface at low pres- Barbecue Grills, Outdoor sure (for best results, limit your work Power Equipment area to sections of approximately & Gardening Tools 1.8M and always apply detergent from bottom to top). Allow detergent to remain on surface 1-3 minutes.
- Page 19 Recommendations ● Before cleaning any surface, an inconspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results. ● If painted surfaces are peeling or chipping, use extreme caution as pressure washer may remove the loose paint from the surface.
-
Page 20: Troubleshooting
Troubleshooting Remove the spark plug cable to prevent accidental ignition of the engine before making any repair. Symptom Cause Solution Engine Will Not No petrol. Fill petrol Tank. Start Choke is not in the Slide lever out to closed position. correct position. - Page 21 Symptom Cause Solution Output Pump is sucking air. Check that hoses and fittings are air Pressure tight. Turn off machine and purge pump Varies Between by squeezing trigger gun until a steady High And Low flow of water emerges through the nozzle.
- Page 22 Symptom Cause Solution Spray Wand Spray wand not Turn the swivel nut of the gun clockwise Leaks properly attached. until connection is tight. Broken o-ring or Visit www.karcher.com.au or plastic insert. www.karcher.co.nz. Pump Is Noisy Not enough petrol Check that hoses and fittings are air or engine oil.
- Page 23 High Pressure Washers Limited 24 month warranty Cold water petrol pressure washers This Kärcher product is warranted by Kärcher to be free of defects in workmanship and materials under normal use. Specific warranty applies to: • Kärcher KPS and KXS series engines are warranted for two (2) years on parts and labor..
- Page 24 Please register online at • Damage caused by misuse, neglect, www.karcher.com.au. Or accident, abuse, improper handling, www.karcher.co.nz. freezing, normal wear and tear or non-compliance with operator's Online registration is manual. quick, free and provides • Damage caused by water sediment, you with a confirmation contaminated water supply or use email for your records.
