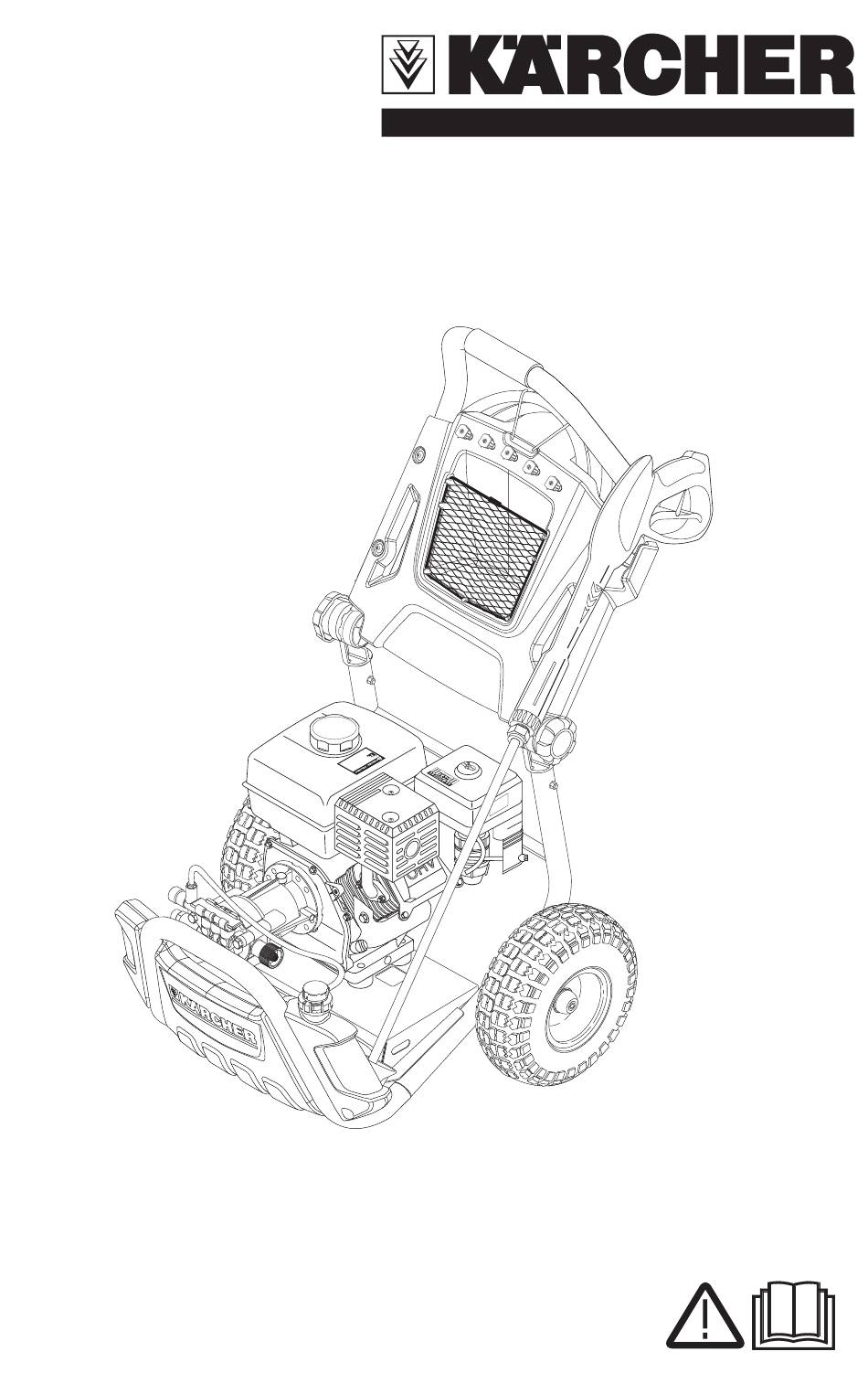

- Page 1 ® G 3200 XC English Español Français 8.754-384.0 01/15...
-
Page 2: Table Of Contents
Troubleshooting Specifi cations Owner/User Responsibility The owner and/or user must have an understand- G 3200 XC ing of the manufacturer’s operating instructions Operating Pressure 3200 PSI and warnings before using this pressure washer. Warning information should be emphasized and Water Volume 2.5 GPM... -
Page 3: Model Overview
MODEL OVERVIEW Handle Water Inlet With Garden Hose Connector Trigger Gun Quick Connect High Pressure Outlet Trigger Gun Safety Lock Detergent Tank High Pressure Hose Detergent Metering Valve and Detergent Suction Tube Gas Tank Quick Connect Nozzles Spray Wand For Engine Details See Engine Manual Dipstick English 3... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS ■ ■ Read the operating instructions of the engine Do not use acids, solvents, or any fl ammable manufacturer before start-up and follow the or alkaline material in this product. These safety instructions carefully. products can cause physical injuries to the operator and irreversible damage to the ma- WARNING chine. -
Page 5: Assembly Instructions
WATER SUPPLY (Cold Water Only) ■ CAUTION Flow rate can be determined by running the water for one minute into an empty 5-gallon When connecting to water supply mains, local container. regulations of your municipal water company ■ must be observed. In some areas connecting The water supply temperature must not ex- directly to public drinking water supply may ceed 122°F/50°C. - Page 6 Description Purpose Illustration Tank Detergent tank Spray Gun Spray Gun Assembly Quick Nozzles Kit Assembly Connect Nozzle Kit (5 pc.) Wand Wand Assembly Assembling Scan QR Code with smartphone for detailed instructions STEP 3: STEP 1: Mount the detergent tank (G) to the bumper, Insert joints (A) into handle.
-
Page 7: Operating Instructions
Assembling STEP 7: STEP 5: Place the Spray Gun (H) into the Gun Holder Place the quick connect nozzles (I) in the and the Wand (J) into the Wand Holder. nozzle holder. STEP 6: Attach the wand to the spray gun. Push the wand (J) into the trigger gun (H) and then thread the connection. - Page 8 OPERATING INSTRUCTIONS WARNING Be sure the machine is level when checking the oil level. (Refer to the engines operating High pressure in quick connect area. manual for seasonal grades). Risk of injury caused by improperly locked We recommend that the oil be changed after high pressure hose.
-
Page 9: Using The Accessories
OPERATING INSTRUCTIONS STEP 7: STEP 9: Connect garden hose to the cold water source Open fuel valve. Pull the choke rod to the "ON" and turn water completely on. position (on a warm engine, leave the choke rod in the OFF position). STEP 10: Move the engine stop switch to the "ON"... -
Page 10: Working With Detergents
WORKING WITH DETERGENTS STEP 4: Detergents can only be applied with the black detergent nozzle. Adjust the detergent metering valve to the desired dosage. STEP 1: Install the black detergent nozzle for detergent application at low pressure. STEP 2: Fill the detergent tank with Kärcher detergent. Close the detergent tank with the detergent STEP 5: mattering cap . -
Page 11: Shutting Down & Clean-Up
SHUTTING DOWN & CLEAN-UP STEP 1: STEP 5: If detergents have been used, remove deter- Release trigger and engage gun safety lock. gent suction tube from container and insert into 1 gallon of fresh water. Siphon water at low pressure for one minute to clear the line of residual detergent. -
Page 12: Cleaning Tips
CLEANING TIPS Deck Cleaning Cars, Boats & Motorcycles (with or without detergent). Pre-rinse deck and (with or without detergent). Pre-rinse vehicle surrounding area with fresh water. If using Kärcher with fresh water. If using Kärcher Touchless Vehicle Deck Wash, apply to surface at low pressure. For Wash, apply to surface at low pressure. -
Page 13: Troubleshooting
Recommendations Optional Accessories ■ Before cleaning any surface an inconspicuous Optional accessories are available to further area should be cleaned to test spray pattern enhance your cleaning capabilities. These acces- and distance for maximum cleaning results. sories are accurate as of the printing date of this ■... - Page 14 TROUBLESHOOTING Symptom Cause Solution NO DETERGENT Detergent suction tube not Check connection properly connected to the machine Detergent is too thick Dilute detergent, for best results use Kärcher detergent Filter on detergent suction Run warm water through fi lter to remove debris tube is clogged Damaged or clogged deter-...
- Page 15 ® High Pressure Washers Limited 24 month warranty Cold water gasoline pressure washers (Kärcher Expert Series) This Kärcher product is warranted by Kärcher to be free of defects in workmanship and materials under normal use. Specifi c warranty applies to: •...
