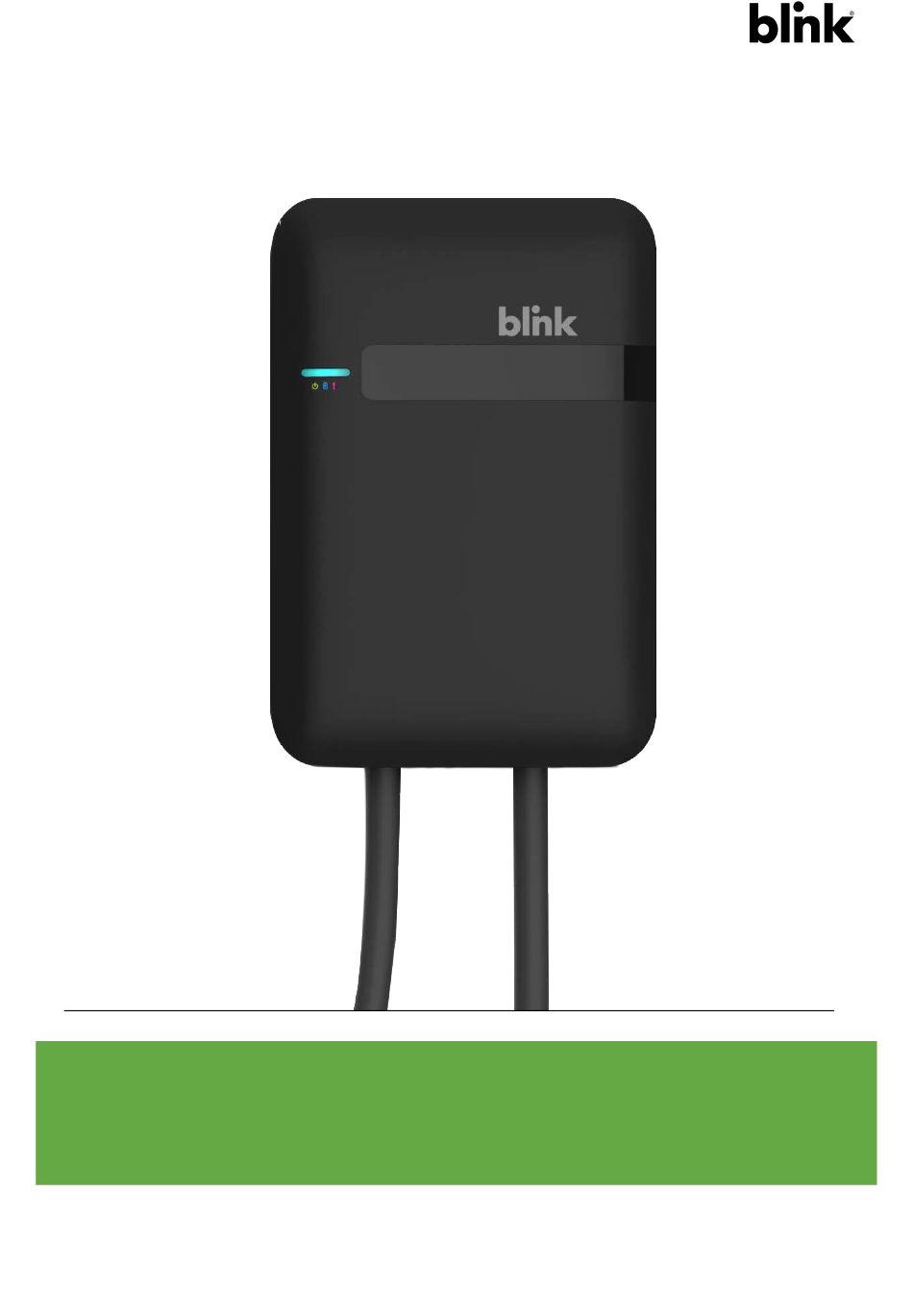

Blink BC3 User Manual

3rd generation of basic charger-32a
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
rd
3
Generation of Basic Charger-32A
Revision 1.17
BlinkCharging.com • (888) 998.2546
©2021 Blink Charging Co. • NASDAQ: BLNK
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC3 and is the answer not in the manual?

Questions and answers

Related Manuals for Blink BC3

Summary of Contents for Blink BC3

  • Page 1 User Manual Generation of Basic Charger-32A Revision 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 2: Important Safety Instructions

    Repair and Maintenance Clause  Only licensed electricians can repair or maintain the charge point. It is forbidden for general users to repair or maintain it. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 3 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 4 Do not modify the plug provided with the product – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 5 CAUTION: Do not use this product if there is any damage to the unit. Send the unit back to the manufacturer in the event the unit is not operational. SAVE THESE INSTRUCTIONS Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 6: Table Of Contents

    Menu overview ......................34 3.8.2 Configuration menu ..................... 35 3.8.3 Maintenance menu ...................... 36 3.8.4 EVSE Status ........................37 3.8.5 LLM Status menu ......................38 Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 7 4.3.1 Plug and Charge ......................76 4.3.2 RFID card (for IC3 only) ....................76 Stop charging ..........................76 4.4.1 Interrupt charging ......................76 Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 8 4.4.2 Auto restart ........................76 4.4.3 Power outage recovery ....................77 General care ..........................77 Customer support ........................77 Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 9: Introduction

    !!! Any unauthorized modifications will void the manufacturer’s warranty. !!! 1.1 Product view Different models of 3 Generation of Charger: Basic Charger-32A (BC3) Figure 1-1 Front view Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 10 Attached to the back of the charge point Holster ASSY With Hook x1, Holster x1 & M4xL15 tapping screw x2 Screw Bag With #12xL50 tapping screw x4 Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 11 Box Opening Process (Take Intelligent Charger-32A as example. 1. Open the carton and remove the upper partition. Figure 1-3 Opening the carton Figure 1-4 Charge point device Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 12 2. Take out the charge point and upturn middle partition. The charging plug is in the bottom of the carton. Figure 1-5 Take out the charge point Figure 1-6 Charging plug Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 13 3. The hook and holster are placed inside the right of the middle partition. Figure 1-7 Accessories inside the middle partition Figure 1-8 Hook and holster Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 14 4. Release the bottom screw, then the wall mounting bracket can be removed. Figure 1-9 Release the screw Figure 1-10 Remove the mounting bracket Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 15: Specifications

    -40 ~ 70℃ / -40 ~ 158 ℉ Storage Temp. Mounting Type Wall mount / Pole mount (optional) Wiring Type NEMA 6-50 Hard-wired Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 16 FCC Part 15B FCC Part 15.225 (RFID 13.56MHz) Certification FCC Part 15.247 (WLAN 2.4GHz) FCC Part 27 (AT&T) or FCC Part 27 (Verizon) Energy Star Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 17: Installation

    Use a wire with a dedicated grounding wire and a ring terminal and connected to the equipment ground terminal block for grounding. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 18: Tools & Parts Required For Installation

    3.3 Install the SIM card (for IC3 only) Disassemble top cover 1-1 Loosen the star screws (x5). Figure 3-1 Five screws in the Base Cover position Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 19 2. Find SIM card socket Figure 3-2 Position of SIM card socket 3. Insert SIM card Figure 3-3 SIM card socket and cover Open/Close direction Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 20 3-1. Push down the cover to open SIM card socket. Figure 3-4 Open SIM card socket 3-2. Prepare the SIM card. (Use micro-SIM, 15mm x 12mm.) Figure 3-5 Prepare the SIM card Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 21 Figure 3-7 Lock SIM card socket cover 3-5. Reassemble the top cover. Please refer to the following torque. SIM card installation is completed. Screw Torque 16 kgf.cm 13.88 lb-in Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 22: Install The Charge Point

    The other screw holes are reserved for the user. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 23 2-2. Fix charge point on mounting bracket by M4 screw and screw washer. 2-3. Please refer to the following torque. Screw Torque 16 kgf.cm 13.88 lb-in Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 24 Figure 3-10 Charge point and mounting bracket Figure 3-11 Screw locking position 3 . Plug in the power cord. (BC3/SC3 ONLY) The outlet should be located at 20-26 inch from the ground. Refer to the installation template to decide where to install the charge point.
  • Page 25 Figure 3-12 Plug in the power cord Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 26: Input Cord Connection

    Terminal Conductor Rating Intelligent Charger-32A L1, L2, G 8 AWG 90C copper wire Figure 3-15 Copper terminal, heat shrink tube and copper wire. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 27 Torque 16 kgf.cm 13.88 lb-in 3-6. The recommended terminal specifications are as following. Terminal Dimension(mm) ≤ 9.5 4-6.4 Figure 3-16 Dimension of terminal Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 28 Torque 1 “ 35 kgf.cm 30.36 lb-in 3-8. Reassemble top cover. Please refer to the following torque. Screw Torque 16 kgf.cm 13.88 lb-in Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 29: Install The Holster

    2-1. For finished walls supported by wood studs, use #12 tapping screws (x2). 2-2. The recommend torque is 25 kgf.cm (21.7 lb-in). Figure 3-19 Secure the hook Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 30 3 . Make the holster face up and combine with the hook. Figure 3-20 Secure the holster 4. Rotate the holster down totally. Figure 3-21 Rotate the holster Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 31 5. Keep the holster in this state and tighten screws completely. Figure 3-22 Lock screws 6. Place EV charging plug on the holster. charging Figure 3-23 Place EV plug. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 32: Getting Started (For Sc3/Ic3 Only)

    3.7.1 Setting up the local network First, connect a computer to the charge point using an Ethernet cable. Figure 3-24 Location of Ethernet RJ-45 port Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 33 Secondly, set up a dynamic IP Address on your computer. For windows system, choose “Obtain an IP address automatically” in Internet Protocol Version 4 (TCP/IPv4) Properties dialog like the following figure. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 34: Log In

    Now you should see the login screen: To be able to configure the charge point you should enter “admin” in the user name box. The default password is “howru2RU2IC3”. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 35: Web-Page Overview (For Sc3/Ic3 Only)

    To navigate via the web browser, use the menu items available: Configuration, Maintenance, EVSE Status, LLM Status, and Security. Logout button Menu List Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 36: Configuration Menu

    The “OCPP Settings” tab is used to set up the custom properties for uses in OCPP 1.6 services.  The “Communication Settings” tab is used to set up the network connection and load management. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 37: Maintenance Menu

    Authorization Cache List. Both lists are defined in OCPP 1.6 specification.  The “Firmware Upgrade” screen can be used to upgrade the firmware of the charge point. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 38: Evse Status

    The “Electric Vehicle Supply Equipment Status” can be used to show the information of EVSE. Usually these information are only for diagnostic use. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 39: Llm Status Menu

    When you choose the LLM Status menu, a sub menu will appear:  The “Local Load Management Status” screen shows the Local Load Management (LLM) settings and current Master/Slave group member list. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 40: Security Menu

    When you choose the Security menu, a sub menu will appear:  The “Change Password” screen can be used to change the password of users for this web portal. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 41: Configuration (For Sc3/Ic3 Only)

    Reader Type – The reader type of the charge point. [Support only on IC3] DSMR Type – The DSMR type of the charge point. Production Date – The production date of the charge point. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 42: Station Settings

    Temperature Low – Value in Celsius at which the charge point will send a temperature low warning message. Temperature High – Value in Celsius at which the charge point will send a temperature high warning message. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 43 Cold Load Pickup Max Delay – Default cold load pickup delay is 120s ~ 720s. The max value could be changeable by this property. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 44 Skip HeartBeat Message – Indicate if HeartBeat message is skipped if any other message is sent successfully during a heartbeat interval. Other Information Last Boot Time – Show last boot time. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 45: Ocpp Settings

    Remote Control Type: The remote control mode accept by IC3. Options are APP: IC3 can be remote controlled by mobile APP. OCPP: IC3 can be remote controlled by OCPP 1.6 protocol. Service Settings Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 46 Upload Diagnostics Interval – Interval of uploading diagnostic file to Central System. Upload Diagnostics Retries – Number of times to retry uploading diagnostic file. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 47 RemoteStartTransaction.req message should be authorized beforehand like a local action to start a transaction. BlinkRepeat – Number of times to blink the charge point lighting when signaling. This value is not changeable for IC3/SC3. ClockAlignedDataInterval – Size (in seconds) of the clock-aligned data interval. This is the size (in seconds) of the set of evenly spaced aggregation intervals per day, starting at 00:00:00 (midnight).
  • Page 48 ConnectorPhaseRotation – The phase rotation per connector in respect to the connector’s energy meter. This is not supported by IC3/SC3 since it is single phase power input and the value will always be ‘NotApplicable’. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 49 Supported value are Current.Import, Energy.Active.Import.Register, and Temperature, Voltage or any combination of these 4 value. StopTxnAlignedDataMaxLength – Maximum number of items in a StopTxnAlignedData configuration key. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 50 Charging Profile purposes. ChargingScheduleAllowedChargingRateUnit – A list of supported quantities for use in a Charging Schedule. This value will always be 'Current' for IC3/SC3. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 51: Communication Settings

    Network Mode – Specifies if enable the Local Proxy function. Available options are Gateway, Client and Direct. Direct: Use charge point as a single device. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 52 Gateway. These chargers form a Gateway/Client group. In this group there is exact one Gateway and all other charge points are Client. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 53 Wi-Fi Wi-Fi Wi-Fi setting will be disabled and Client Client will setup Wi-Fi to connect to Gateway indicated by ' Gateway Serial Number' Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 54 Password – The password of Wi-Fi Access Point. BSSID – The MAC Address of Wi-Fi Access Point. If your Access Point is hidden SSID, please enter this address. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 55 IMSI – The IMSI of the modem’s SIM card. There will be no data here if no SIM card inserted. IMEI – The IMEI (International Mobile Equipment Identity) of the modem. MEID – The MEID (Mobile Equipment Identifier) of the modem. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 56 The format for numeric port range is minimum-value:maximum-value. Timeout RX – Timeout limitation of signal received by modem. Local Load Management (LLM) Settings [Support only on IC3] Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 57 Max Amperage Grid Connection – Total ampere of each phase allowed loading for the group of charge points at the same time. This value is only used in Gateway. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 58 Any option followed by a star mark (*) means the setting need to reboot to take effect. When these value changed and applied the web portal will display a reminder message box for rebooting the charge point. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 59: Maintenance (For Sc3/Ic3 Only)

    Show All Charging Profile Data: To show the list of Charging Profiles. There will be a display window. The data display here is a RAW data, usually for diagnostic use. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 60 Show Local Authorization List: To show the list of Local Authorization. Each line of the list shown below indicates a RFID card info. The syntax is CARD_IDTAG|EXPIRY_DATE|PARENT_CARD_IDTAG|CARD_STATUS Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 61 Show Authorization Cache List: To show the list of Authorization Cache. Each line of the list shown below indicates a cached RFID card info. The syntax is CARD_IDTAG|EXPIRY_DATE|PARENT_CARD_IDTAG|CARD_STATUS|CACHED_DATE Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 62: Firmware Upgrade

    Although the web portal does not forbid upload firmware to previous version, but since the design of firmware upgrade file is including all backward modifications, downgrading firmware may cause unpredicted problem and is not recommended. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 63: Evse Status

    3.11 EVSE Status To check the specific information of EVSE, you can click the corresponding buttons: Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 64: Llm Status (For Sc3/Ic3 Only)

    Local Load Management Status: Display connected charge points, total charge points, Group ID of the LLM group as well as a full table of detail information each charge point if this charge point is Gateway. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 65: Gateway/Client Group Table

    The LLM gateway will re-calculate the proper ampere for each charging station. Base on the different mode, the algorithm is different. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 66 Group Size Not used Max Amperage Grid Connection Not used Fallback Current (Same as Gateway) With one connected vehicle, the charging current is 32A. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 67 Charging Policy Uniform Distribution Not used Group ID LLM-Group-1 LLM-Group-1 (Same as Gateway) Group Size Not used Max Amperage Grid Not used Connection Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 68 With three connected vehicles, the charging currents are further reduced to 24A for 32A charging stations and the charging current is 12A for 16A charging station. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 69 Max Amperage Grid Connection Not used Fallback Current (Same as Gateway) With one connected vehicle, the charging current is 32A. (Reserve 20A for offline charging stations) Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 70 In this example, there are three (32A) charging stations in the LLM group. Setting up each charging stations according to the following settings: Setting Gateway Client Local Load Management Enable Enable Charging Policy First In First Serve Not used Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 71 Max Amperage Grid Connection Not used Fallback Current (Same as Gateway) The first vehicle connected would receive 32A. The second vehicle would receive 28A. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 72 First In First Serve Not used Group ID LLM-Group-1 LLM-Group-1 (Same as Gateway) Group Size Not used Max Amperage Grid Connection Not used Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...
  • Page 73 The second vehicle would receive 32A. (Reserve 20A for offline charging stations) The second vehicle would receive 16A. (Reserve 20A for offline charging stations) Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 74: Security

    “Apply” button to change password of the user. To reset password of all users, press “Reset password of all users” button. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 75: Operations

    Unrecoverable Fault Red Flashing Recoverable Fault Purple Steady Reserved (from OCPP Service) Yellow Steady Out of Service Yellow Flashing Booting / Firmware Upgrading Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 76: Authorization (For Ic3 Only)

    To improve the experience for users, the EVSE MAY support local authorization when EVSE is offline, and faster authorization response time when communication between Charge Point and Central System is slow. Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 77: Charging An Electric Vehicle (Ev)

    2. Session ended (please return the connector to the holster) 4.4.1 Interrupt charging Please refer to STOP CHARGING section for more information. 4.4.2 Auto restart Basic/Smart/Intelligent Charger-32A User Manual Rev. 1.17 BlinkCharging.com • (888) 998.2546 ©2021 Blink Charging Co. • NASDAQ: BLNK...

  • Page 78: General Care

    4.5 General Care The Blink charger features a rugged design that is rated for general outdoor use. To ensure proper maintenance of the charge point, follow these guidelines Despite the water resistance of the enclosure, when cleaning it is preferred to not direct streams of •...
