Graco HYDRA-SPRAY 223-596 Instructions And Parts List

Graco HYDRA-SPRAY 223-596 Instructions And Parts List

23:1 ratio monark pump
Hide thumbs Also See for HYDRA-SPRAY 223-596:
Table of Contents

Advertisement

Quick Links

Download this manual

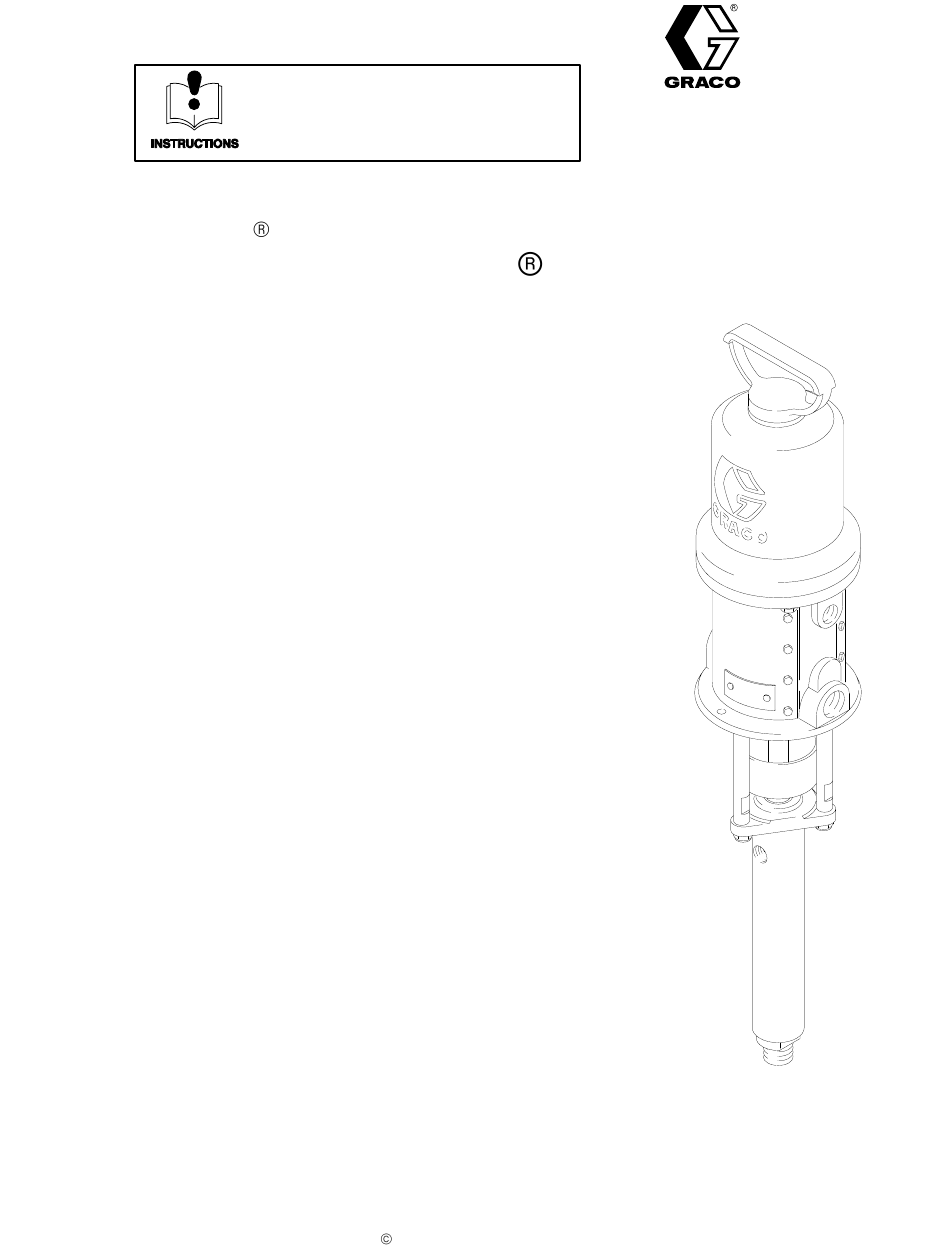

INSTRUCTIONS-PARTS LIST
HYDRA-SPRAY
23:1 Ratio Monark Pump
2760 psi (190 bar) Maximum Fluid Working Pressure
120 psi (8.4 bar) Maximum Air Input Pressure
Part No. 223-596, Series B
with Severe-Duty Displacement Pump* and Stainless Steel Glands,
Intake Housing, Piston Valve and Ball Stop
* Severe-Duty Displacement Pumps have abrasion-resistant
displacement rod and sleeve. Refer to Technical Data on
page 18 for Wetted Parts information.

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
COPYRIGHT 1983, GRACO INC.
2-4
4-5
6-7
8
9-11
13-15
16-17
18
19
19
20
20
307-619
Rev. L
Supersedes K
and PCN L
02097

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYDRA-SPRAY 223-596 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco HYDRA-SPRAY 223-596

Summary of Contents for Graco HYDRA-SPRAY 223-596

  • Page 1: Table Of Contents

    Graco Phone Numbers ......02097 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1983, GRACO INC.

  • Page 2: Warnings

    WARNINGS High Pressure Spray Can Cause Serious Injury. For Professional Use Only. Observe All Warnings. Read and understand all instruction manuals before operating equipment. FLUID INJECTION HAZARD General Safety Diffuser This equipment generates very high fluid pressure. Spray The spray gun diffuser breaks up spray and reduces the risk from the spray gun, leaks or ruptured components can inject of fluid injection when the tip is not installed.

  • Page 3: Fluid Compatibility

    EQUIPMENT MISUSE HAZARD General Safety System Pressure Any misuse of the spray equipment or accessories, such as The 23:1 ratio pump develops 2760 psi (190 bar) Maximum overpressurizing, modifying parts, using incompatible chemi- Fluid Working Pressure at 120 psi (8.4 bar) air inlet pressure. cals and fluids, or using worn or damaged parts, can cause Never exceed 120 psi (8.4 bar) air supply pressure to the them to rupture and result in fluid injection, splashing in the...

  • Page 4: Installation

    Do not expose pump. Before servicing the pump, follow the Pressure Relief Procedure on page 2 to prevent the pump from starting Graco hoses to temperatures above 180 F (82 C) or below –40 F (–40 C). accidentally.
  • Page 5 Installation Pump Wall Bracket Air Line Lubricator Bleed-Type Master Air Valve (required, for pump) Pump Air Regulator Air Line Filter G Bleed-Type Master Air Valve (for accessories) Air Supply Hose Fluid Drain Valve (required) Fluid Filter Fluid Supply Hose M Spray Gun Fluid Suction Hose Ground Wire (required;...

  • Page 6: Operation

    Operation WARNING Starting and Adjusting the Pump Pressure Relief Procedure To reduce the risk of serious bodily injury, including See Fig. 2 on page 5. Be sure the air regulator (E) fluid injection, splashing in the eyes or on the skin, and bleed-type master air valve (D) are closed.

  • Page 7: Shutdown And Care Of The Pump

    Operation Keep the packing nut/wet-cup (104) filled with Graco Throat Seal Liquid (TSL) or compatible solvent, to help prolong the packing life. Adjust the packing nut weekly so it is just tight enough to prevent leakage; do not overtighten. See Fig. 3. Always follow the Pressure Relief Procedure Warning on page 6 before adjust- ing the packing nut.

  • Page 8: Troubleshooting

    Troubleshooting NOTE: Check all possible problems and solutions before disassembling pump. Problem Cause Solution Pump fails to operate. Restricted line or inadequate air supply. Clear; increase air supply. Insufficient air pressure; closed or Open; clean (be sure to use air filter). clogged air valves, etc.

  • Page 9: Disconnecting The Displacement Pump

    Service Disconnecting the Displacement Pump Lubricate. Torque to 10–15 ft–lb 1. Flush the pump if possible. Stop the pump at the (14–20 N.m). bottom of its stroke. Follow the Pressure Relief Procedure Warning on page 8. 2. Disconnect the air and fluid hoses. Remove the pump from its mounting.
  • Page 10 Replace any worn or damaged parts. NOTE: If the sleeve (106) needs replacement and is hard to remove, contact Graco Technical Assistance (see back page).
  • Page 11 Service Lubricate. See Detail B. See Detail A. Lips of v-packings must face up. Lips of v-packings must face down. Apply thread sealant. Tapered end must face down, toward pump intake. Torque to 35–40 ft–lb (47–54 N.m). Torque to 55–65 ft–lb (75–88 N.m). Detail A: Throat Packings (REF 116*...
  • Page 12 Notes...

  • Page 13: Parts

    Parts Model 223–596, Series B 23:1 Ratio Monark Pump Part Description 101–946 PIN, cotter; stainless steel; 0.12” (3.2 mm) x 1.5” (38 mm) 101–566 NUT, lock; 3/8–16 154–771 SEAL, o-ring; buna-N 164–722 ROD, tie; carbon steel; 4.375” (112 mm) shoulder-to-shoulder 3 205–530 AIR MOTOR See 307–043 for parts...
  • Page 14 Parts Model 223–595, Series C Severe-Duty Displacement Pump with Stainless Steel Glands, Intake Housing, Piston Valve, and Ball Stop *116 *123 *114 *123 *114 *118 122* 117* 115* 124* 115* 124* 121* 110* 109* 112* 02101...

  • Page 15: Manual Change Summary

    Parts Model 223–595, Series C Severe-Duty Displacement Pump with Stainless Steel Glands, Intake Housing, Piston Valve, and Ball Stop PTFE Part Conversion Kit 236–724 Description PTFE Use to convert the pump to all packings. Kit must be purchased separately. 186–187 GUIDE, ball, intake;...

  • Page 16: Accessories

    Accessories Use Only Genuine Graco Parts and Accessories Grounding Clamp and Wire 222–011 Air Regulator 300 psi (21 bar) Maximum Working Pressure 25 ft (7.6 m) long, 12 gauge (1.5 mm ) 104–266 0–250 psi (0–18 bar) Regulated Pressure Range;...
  • Page 17 Accessories Use Only Genuine Graco Parts and Accessories Wall Bracket 207–365 Drum Cover and Agitator 207–199 For mounting the Monark Pump to a wall. Fits a 55 gal. (200 liter) drum. Suction Hose 214–961 Graco Throat Seal Liquid 500 psi (35 bar) Maximum Working Pressure 6 ft (1.8 m) long, coupled 3/4 npt (mbe), neoprene.

  • Page 18: Technical Data

    Technical Data Maximum fluid working pressure ........2760 psi (190 bar) Maximum air input pressure .

  • Page 19: Dimensions

    Dimensions Mounting Hole Layout Use Gasket 161–023 (order separately) 0.28 in. (7.1 mm) diameter 4.38 in. (111.3 mm) diameter 28.5 in. 2.5 in. (724 mm) 5.0 in. (127 mm) (64 mm) 3/8 npt(f) Air Inlet 14.6 in. (371 mm) 9.7 in. (246 mm) 3/8 npt(f) Fluid Outlet...

  • Page 20: Warranty

    Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this warranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defective.
