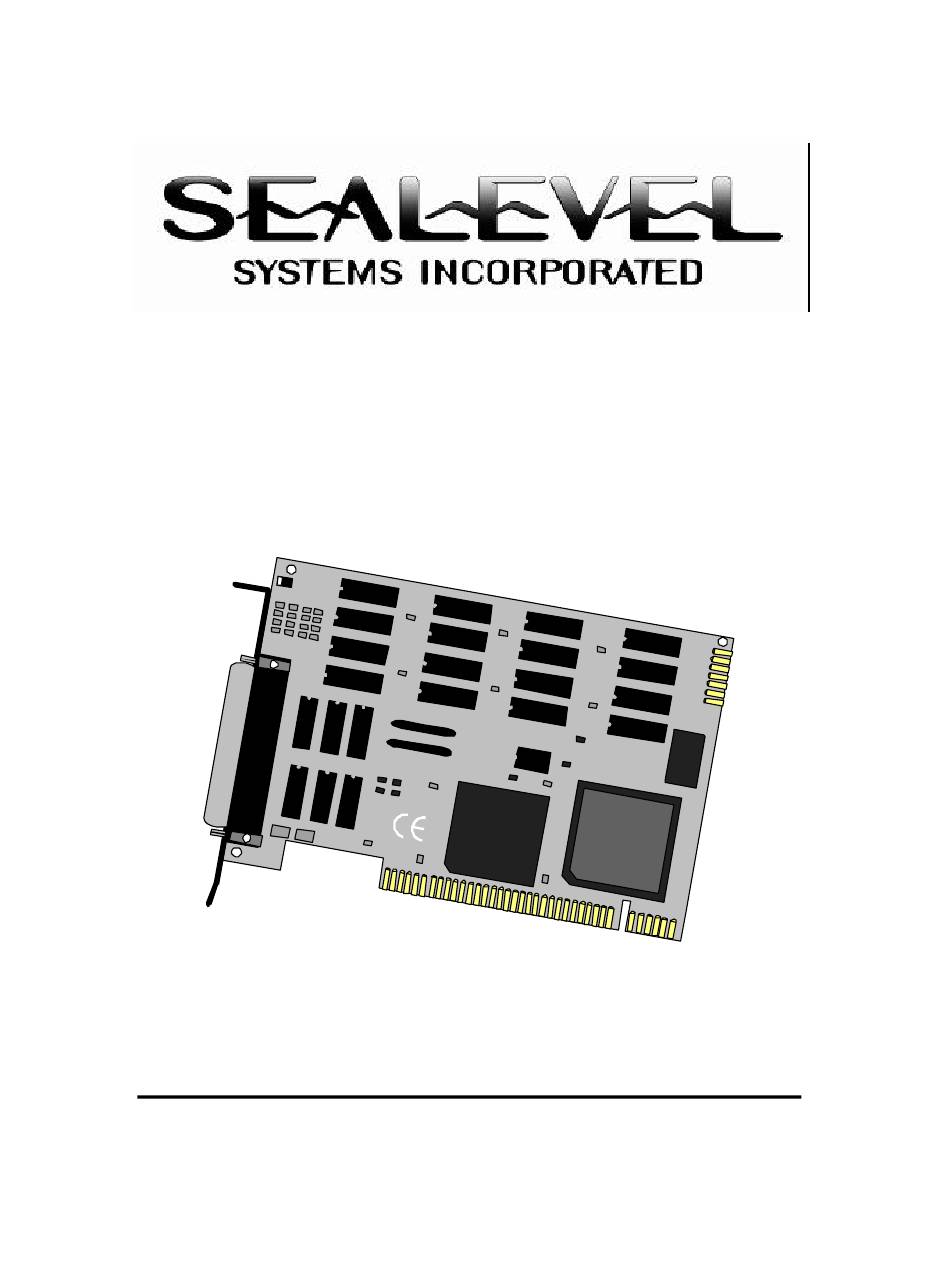

- Page 1 DIO-32.PCI USER MANUAL Part # 8004 Sealevel Systems, Inc Phone: (864) 843-4343 155 Technology Place FAX: (864) 843-3067 P.O. Box 830 www.sealevel.com Liberty, SC 29657 USA...
- Page 2 Contents ......................1 NTRODUCTION ..................1 VERVIEW ’ ................1 NCLUDED ......................1 NSTALLATION ..................1 ETUP ..............1 INDOWS SERS ...................2 ECHNICAL ESCRIPTION ..................2 EATURES .................2 NPUT ORTS Sensor Input Ports Pin Assignments .............4 )............4 UTPUT ORTS ELAY Relay Specifications ................4 Output Ports (Reed Relay) Pin Assignments ........5 ..................5 OFTWARE ......................6...
- Page 3 B - H ...............12 PPENDIX SSISTANCE C - S ..................13 PPENDIX CREEN D - C ..............14 PPENDIX OMPLIANCE OTICES .... 14 EDERAL OMMUNICATIONS OMMISSION TATEMENT EMC D ............ 14 IRECTIVE TATEMENT .......................15 ARRANTY ©2002a Sealevel Systems, Incorporated. All rights reserved.
- Page 4 The DIO-32.PCI is PCI 2.1 bus compliant. Addressing, data and control signals are TTL compatible. What’s Included The DIO-32.PCI is shipped with the following items. If any of these items are missing or damaged, contact the supplier. •...
- Page 5 Technical Description Technical Description The DIO-32.PCI provides four parallel input/output (I/O) ports. The ports are organized as ports A, B, C, and D. Port A and B are input ports interfaced to optically-isolated inputs, while ports C and D are reed relay output ports.
- Page 6 The input circuits are not intended for monitoring 120 volt AC circuits. In addition to being too high a voltage for the circuits, it is dangerous to have that high a voltage on the card. Sealevel Systems DIO-32.PCI Page 3...
- Page 7 Contact Resistance, Initial: .15 Ohms • Rated Life: Low Load: 200 Million Closures Maximum Load: 100 Million Closures • Contact Speed: Operate: .5 mS Release: .5 mS Bounce: .5 mS • Maximum Operating Speed: 600 Hertz Sealevel Systems DIO-32.PCI Page 4...
- Page 8 SeaI/O includes a utility for configuring the driver parameters under Windows 95/98 and Windows NT, further simplifying installation. For DOS, QNX, Linux and other operating systems, please refer to the software included with your card. Sealevel Systems DIO-32.PCI Page 5...
- Page 9 ) input port of the device will be utilized. In all addressing modes, port numbers are zero-indexed; that is, the first port is port #0, the second port is #1, the third #2, and so on. Sealevel Systems DIO-32.PCI Page 6...
- Page 10 D4 - Output 29 ( R/W ) 13 ( W ) D5 - Output 30 ( R/W ) 14 ( W ) D6 - Output 31 ( R/W ) 15 ( W ) D7 - Output Sealevel Systems DIO-32.PCI Page 7...
- Page 11 R/W = Read or Write Function Port Address Hex Port Type Available Base + 0 Input Port (Opto Input) Base + 1 Input Port Base + 2 Output Port (Reed Relays) Base + 3 Output Port Sealevel Systems DIO-32.PCI Page 8...
- Page 12 PBD0-7 = Port B (Base+1) PCD0-7 = Port C (Base+2) IRQST = interrupt status (Base+5) PDD0-7 = Port D (Base+3) 1 = interrupt pending (reading the bit clears interrupt). Bit can not be written. Sealevel Systems DIO-32.PCI Page 9...
- Page 13 Relay Life expectancy is dependent on actual application usage. Physical Dimensions Board length 6.00 inches (15.24 cm) Board Height including Goldfingers 4.2 inches (10.668 cm) Board Height excluding Goldfingers 3.825 inches (9.716 cm) Note: Please see Appendix D for board layout and dimensions. Sealevel Systems DIO-32.PCI Page 10...
- Page 14 3. Ensure that there is no conflict with currently installed adapters. No two adapters can occupy the same I/O address and may not be allowed to share IRQs. 4. Make sure the Sealevel Systems adapter is securely installed in a motherboard slot. Sealevel Systems DIO-32.PCI...
- Page 15 If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems maintains a Home page on the Internet. Our home page address is www.sealevel.com. The latest software updates, and newest manuals are available via our FTP site that can be accessed from our home page.
- Page 16 Appendix C - Silk-Screen Appendix C - Silk-Screen 4.200" 6.00" 3.825" Sealevel Systems DIO-32.PCI Page 13...
- Page 17 Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. Sealevel Systems DIO-32.PCI Page 14...
- Page 18 Sealevel Systems, Inc. provides a lifetime warranty for this product. Should this product fail to be in good working order at any time during this period, Sealevel Systems will, at it's option, replace or repair it at no additional charge except as set forth in the following terms.
