- Page 1 DIO-32.PCI User Manual | 8004H © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021...
-
Page 2: Table Of Contents
APPENDIX A – TROUBLESHOOTING ..................................... 20 APPENDIX B – HOW TO GET ASSISTANCE.................................. 21 APPENDIX C – SILK SCREEN – 8004 PCB ................................. 22 APPENDIX D – COMPLIANCE NOTICES ..................................23 WARRANTY ............................................24 © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021... -
Page 3: Introduction
98/NT/ME/2000/XP, Linux and DOS. The SeaI/O API (Application Programmer Interface) available on Sealevel’s website provides a variety of useful high-level function calls implemented as a Windows dynamic link library (DLL) and as a Linux kernel module and library. In addition to the API, SeaI/O includes sample code and utilities to simplify software development. -
Page 4: Before You Get Started

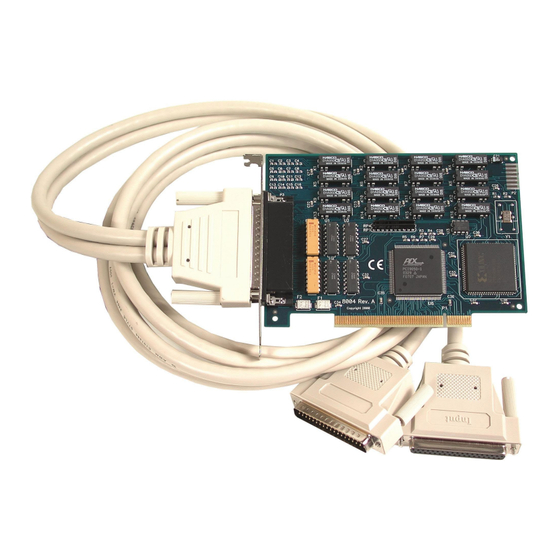

The DIO-32.PCI is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. • Item# 8004H – DIO-32.PCI Adapter • Item# CA165 – DB-78 Male to DB-37 Male and DB-37 Female V-cable... -
Page 5: Software Installation
Only users running Windows 7 or newer should utilize these instructions for accessing and installing the appropriate driver via Sealevel’s website. If you are utilizing an operating system prior to Windows 7, please contact Sealevel by calling 864.843.4343 or emailing support@sealevel.com... -
Page 6: Hardware Installation
Replace the screw you removed for the blank and use it to secure the adapter into the slot. (This is required to ensure FCC Part 15 compliance.) Replace the cover. Connect the power cord Installation is finished. © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021... -
Page 7: Programming The Dio-32.Pci
Programming the DIO-32.PCI Sealevel’s SeaI/O software is provided to assist in the development of reliable applications for the Sealevel Systems family of digital I/O adapters. The software also includes driver functions for use in accessing the I/O as well as helpful samples and utilities. - Page 8 Turn on Voltage = diode drop + (turn on current) x (resistance) [Ex: 1.1 + (.003) x R] Input Current = ((input voltage)-1.1V) / (resistor value) Maximum voltage = 1.1 + square root of (.25(resistor value)) © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021...
- Page 9 The turn-off voltage for all resistors is less than 1V. Increasing the input resistor accordingly can increase the maximum input voltage. Because socketed DIP resistors are utilized, they can easily be replaced with a different value. Sealevel can do this, if necessary.
- Page 10 Port D Bit Relay Port D Pins 2,20 10,28 3,21 11,29 4,22 12,30 5,23 13,31 6,24 14,32 7,25 15,33 8,26 16,34 9,27 17,35 Ground 18,36,37 + 5 Volts + 12 Volts © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021...
- Page 11 The inputs are active Low. If no voltage is applied across one of the differential inputs, it returns a one on that bit. If an AC or DC voltage is applied, it returns a zero on that bit. © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021...
- Page 12 When enabled, interrupts are generated on Port A bit D0. IRQEN Interrupt enable 1 = enabled 0 = disabled (0 on power up) IRC0 Interrupt mode select, see table below IRC1 Interrupt mode select, see table below © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021...
- Page 13 On the 3093 ISA digital I/O board, the input pins #1 and #19 are reversed from the standard CA165 cable that ships standard with the 8004H. If you are upgrading from a 3093 ISA board to an 8004H PCI board and wish to preserve existing infrastructure wiring, order the CA378 cable and use it in place of the standard CA165 cable.
- Page 14 The CA378 cable is designed specifically for customers upgrading from a 3093 ISA board to the 8004 PCI board. If you are not upgrading from the 3093 board, use the standard CA165 cable that ships with the 8004 PCI digital I/O board. © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021...
- Page 15 Port D Bit Relay Port D Pins 2,20 10,28 3,21 11,29 4,22 12,30 5,23 13,31 6,24 14,32 7,25 15,33 8,26 16,34 9,27 17,35 Ground 18,36,37 + 5 Volts + 12 Volts © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021...
-
Page 16: Electrical Characteristics
• DB-37 Male connector for relay outputs • DB-37 Female connector for optically isolated inputs • Highly reliable 10 VA DIP reed relays • Multiple adapters can reside in same computer © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021... -
Page 17: Specifications
-50º to 105º C Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Requirements... - Page 18 SPECIFICATIONS, CONTINUED Physical Dimensions PCB Length 6.0” (15.2 cm) PCB Height including Goldfingers 4.2” (10.7 cm) © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021...
-
Page 19: Example Circuits
Example Circuits Input Circuit Output Circuit © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021... -
Page 20: Appendix A - Troubleshooting
Appendix A – Troubleshooting Sealevel Software is supplied with the Sealevel Systems adapter and will be used in the troubleshooting procedures. By using this software and following these simple steps, most common problems can be eliminated without the need to call Technical Support. -
Page 21: Appendix B - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp. -
Page 22: Appendix C - Silk Screen - 8004 Pcb
Appendix C – Silk Screen – 8004 PCB 4.200" 6.00" 3.825" © Sealevel Systems, Inc. 8004H Manual | SL9022H 9/2021... -
Page 23: Appendix D - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 8004 Manual | SL9022 9/2021... -
Page 24: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
