- Page 1 DIO-16.LPCIe User Manual | 8012e © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
-
Page 2: Table Of Contents
BEFORE YOU GET STARTED ..........................3 INTRODUCTION ..............................6 SOFTWARE INSTALLATION ..........................8 PHYSICAL INSTALLATION ..........................9 PROGRAMMING THE DIO-16.LPCIE ......................... 10 TECHNICAL SPECIFICATIONS .......................... 17 APPENDIX A – TROUBLESHOOTING........................ 19 SEAIO DEVICE DRIVER CONFIGURATION ......................25 APPENDIX B – HANDLING INSTRUCTIONS ..................... 28 APPENDIX C –... -
Page 3: Before You Get Started
Before You Get Started What’s Included The DIO-16.LPCIe is shipped with the following items. If any of these items is missing or damaged, please contact Sealevel for replacement. DIO-16.LPCIe Low Profile PCI Express 8 Reed Relay Output / 8 Isolated Input (3-30V) •... - Page 4 DIO-16.LPCIe to real-world signals. All items can be purchased from our website (www.sealevel.com) or by calling (864) 843-4343. Cables DB44 Male to DB44 Female, 72” Extension Cable (Item# CA185) The CA185 is a standard DB44M to DB44F extension cable.
- Page 5 The Digital I/O Handbook – A Practical Guide to Industrial Input and Output Applications (Item# REF101) Renowned technical author Jon Titus and president and CEO of Sealevel Systems, Tom O'Hanlan, clearly explain real-world digital input/output implementation from both a hardware and software perspective. Whether you are a...
-
Page 6: Introduction

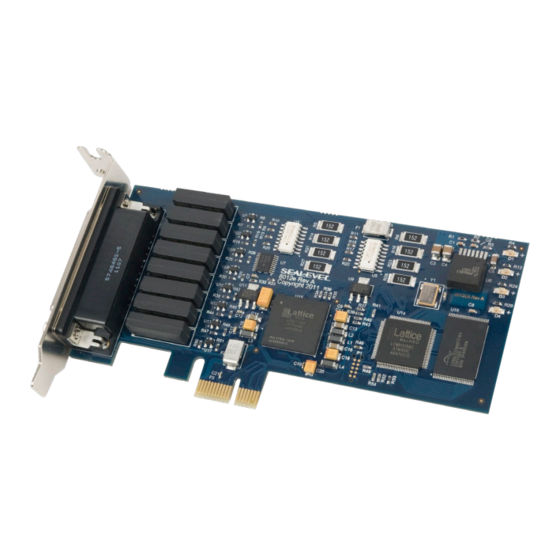

Introduction The DIO-16.LPCIe provides 8 optically isolated inputs and 8 reed relay SPST (single pole-single throw) outputs. The inputs protect the PC and other sensitive equipment from spikes and ground loop current that can be generated in industrial environments, while the outputs provide high quality, long life, low current (10 Watt maximum), dry contact switch closures. - Page 7 Other Sealevel PCI Digital I/O Products Product Item# Description PIO-32.PCI 8010 32 TTL Inputs/Outputs PIO-48.PCI 8005 48 TTL Inputs/Outputs PIO-96.PCI 8009 96 TTL Inputs/Outputs REL-16.PCI 8003 16 Reed Relay Outputs DIO-32.PCI 8004 16 Reed Relay Outputs/16 Opto-isolated Inputs DIO-32.PCI 8004H 16 Reed Relay Outputs/16 Opto-isolated Inputs (10-30V) ISO-16.PCI...
-
Page 8: Software Installation
7. The software is now installed, and you can proceed with the hardware installation. To install Sealevel software, you must log in as an administrator or have administrator privileges in Windows. All Sealevel Systems software drivers have been fully tested by Sealevel. Clicking “OK”... -
Page 9: Physical Installation
Physical Installation Do not install the PCI express board until the software has been successfully installed. The Sealevel DIO-16-LPCIe can be installed in any PCIe expansion slot (x1/x4/x16). PCI Express x1 Do not install the adapter in the machine until the product software has been fully installed. -
Page 10: Programming The Dio-16.Lpcie
/ removal of the software and information about latency, logic states, and device configuration. For C language programmers we recommend using the API to access the DIO-16.LPCIe. If you are programming in Visual Basic, using the ActiveX control included with SeaI/O is advised. - Page 11 Writing the Outputs The output ports are the only ports that can be written. The relays on a standard DIO-16.LPCIe are normally open. To close a relay a one must be written to the appropriate bit. Interrupts Interrupts are not currently supported; however they may be added. Contact Sealevel with your requirements.
- Page 12 Also for electrical isolation, each input / output pair can be powered from an individual power source with no common present. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
- Page 13 In this case the interconnections are being made on the connector itself. In the DB-37 diagram below the return path is supplied external to the connector. For electrical isolation, each relay can be wired to an independent isolated circuit. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
- Page 14 Via optional DB-44 Male to DB-37 Male 6’ cable, Part Number CA206 Port A Pins Port C Pins 2,20 10,28 3,21 11,29 4,22 12,30 5,23 13,31 6,24 14,32 7,25 15,33 8,26 16,34 9,27 17,35 18,36,37 +12V © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
- Page 15 The common path can be provided at the connector as shown in the DB-44 diagram above. Also for electrical isolation, each input / output pair can be powered from an individual power source with no common present. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
- Page 16 The above diagram shows the common path to all the relays is provided external to the connector. The common path can be provided at the connector as shown in the DB-44 diagram above. For electrical isolation, each relay can be wired to an independent isolated circuit. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
-
Page 17: Technical Specifications
Relay Max Release Time** 0.2 ms Isolation 300 VAC RMS * Reference Coto Technology Whitepaper “Testing Reed Switches and Relays for Reliability” for more information: http://www.cotorelay.com/Coto_WP__Reliability_Ver_003.pdf ** Minimum hardware timing requirements © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022... - Page 18 (14.0 cm) (7.0 cm) Manufacturing All Sealevel Systems printed circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
-
Page 19: Appendix A - Troubleshooting
First, install the software driver and then install the I/O adapter. If the I/O adapter was installed first, complete the ‘uninstall/reinstall’ steps. Next, verify that your Sealevel Software is properly installed. This places the required installation files in the correct locations. In Windows it will be located here: Start – All Programs – SeaIO Uninstall/Reinstall 1. - Page 20 Device Manager Verification Once your Sealevel Software is installed, verify the I/O adapter is properly enumerated. Navigate to the Device Manager for verification and configuration. To access the Device Manager, right click on ‘My Computer’ and choose ‘Manage’. When the Computer Management menu appears, choose ‘Device Manager’.
- Page 21 Troubleshooting/Verification Utilities for SeaIO Classic Products These three utilities were designed to verify the functionality of your Sealevel digital I/O adapters. To access these utilities navigate to: Start – All Programs – SeaIO. VB Test This utility allows the setting and clearing of individual relays and groups of relays. It also offers timed activation of relays and monitoring of input signals.
- Page 22 SeaIO driver configuration and hardware adapter settings. A main menu offers choices for reading and writing ports and setting and clearing relays. This utility also demonstrates the use of the NotifyInputChange API call. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
- Page 23 SeaI/O Classic Hardware This is an example of a properly enumerated SeaI/O digital I/O adapter in Windows Device Manager. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
- Page 24 This verifies that the SeaI/O digital I/O adapter (8004) is correctly enumerated. To properly configure your digital I/O adapter, please click on the ‘Card Setup’ tab and refer to the Configuration section of this manual. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
-
Page 25: Seaio Device Driver Configuration
Sample Interval box. Additional information on Sample Interval can be located in the SeaIO Software Information Help file found here: Start – All Programs – SeaIO – SeaIO Help - Device Configuration. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022... - Page 26 If the input threshold voltage has been met the API returns a 1. Outputs: If a 0 is written to the port the relay is de- energized. If a 1 is written to the port the relay is energized. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
- Page 27 Additional information for Positive and Negative logic choices can be located in the SeaIO Software Information Help file found here: Start – All Programs – SeaIO – SeaIO Help - Logic States. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
-
Page 28: Appendix B - Handling Instructions
10. Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. 11. Use field service tools such as cutters, screwdrivers, and vacuum cleaners that are conductive. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022... -
Page 29: Appendix C - Example Circuits
Appendix C – Example Circuits Input Circuit Output Circuit © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022... -
Page 30: Appendix D - 8012E Pcb Drawing
Appendix D – 8012e PCB Drawing © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022... -
Page 31: Appendix E - How To Get Assistance
If possible, please have the adapter installed in a computer ready to run diagnostics. 3. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.htm... -
Page 32: Appendix F - Compliance Notices
The equipment has a level of immunity to the electromagnetic disturbance to be • expected in its intended use which allows it to operate without unacceptable degradation of its intended use. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022... - Page 33 Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 8012e Manual | SL9225 12/2022...
-
Page 34: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
