iPAL
10baseT Connector
The 10baseT connector is located on the rear panel of the IPAL. It provides connection to the Ethernet.
Note: Connection to an Ethernet hub is made using the cable provided. To directly connect to a PC, a crossover
cable is required. This cable is available at any computer store.
An LED on the jack indicates when the connection to the network is properly established
Serial Connection * for models without internal modem *
This connection provides for RS-232 connection for out-of-band connection to the iPAL. A terminal or modem can be
attached directly to this 9 pin connector. With a modem attached, connection is made using PPP (Dial-up-Networking) and
Telnet.
Connection directly to a laptop or terminal requires a null modem (crossover) cable.
With a terminal directly installed, a simple menu interface is used. These menus are identical to the telnet setup and control
screens. Use any terminal emulation software to connect to the iPAL.
Connection parameters are: 19200bps, 8 data bits, 1 stop bit, no parity (19200,8,n,1). Set flow control to OFF.

Serial Port pinout:

Pin No Description
1 Data Carrier Detect
2 Receive Data
3 Transmit Data
4 Data Terminal Ready
5 Signal Ground
6 Data Set Ready
7 Request to Send
8 Clear to Send
9 Ring Indicator
Modem Connection * for models with internal modem *
The RJ11 jack marked LINE if for direct connection to a telephone line.

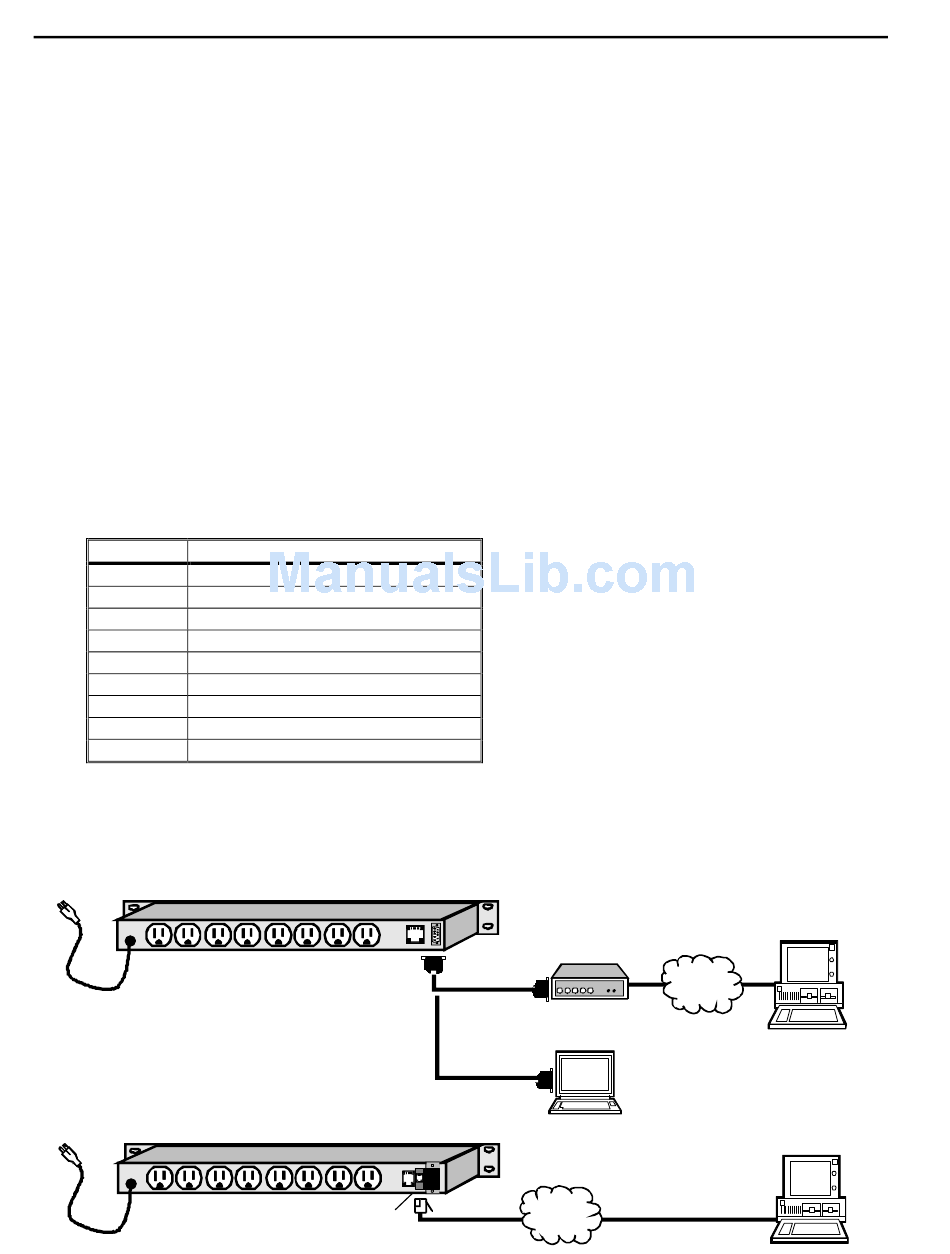

iP-815
iP-815-M
Straight
Cable
Crossover
Cable
D9-RJ Adpater
# 1940149
External
Modem
Dial-up
OR
Direct Connect
to Terminal
Emulation
Dial-up
Page 4
Dial-up to
computers running
Dial-up Networking
Telnet and/or Web
