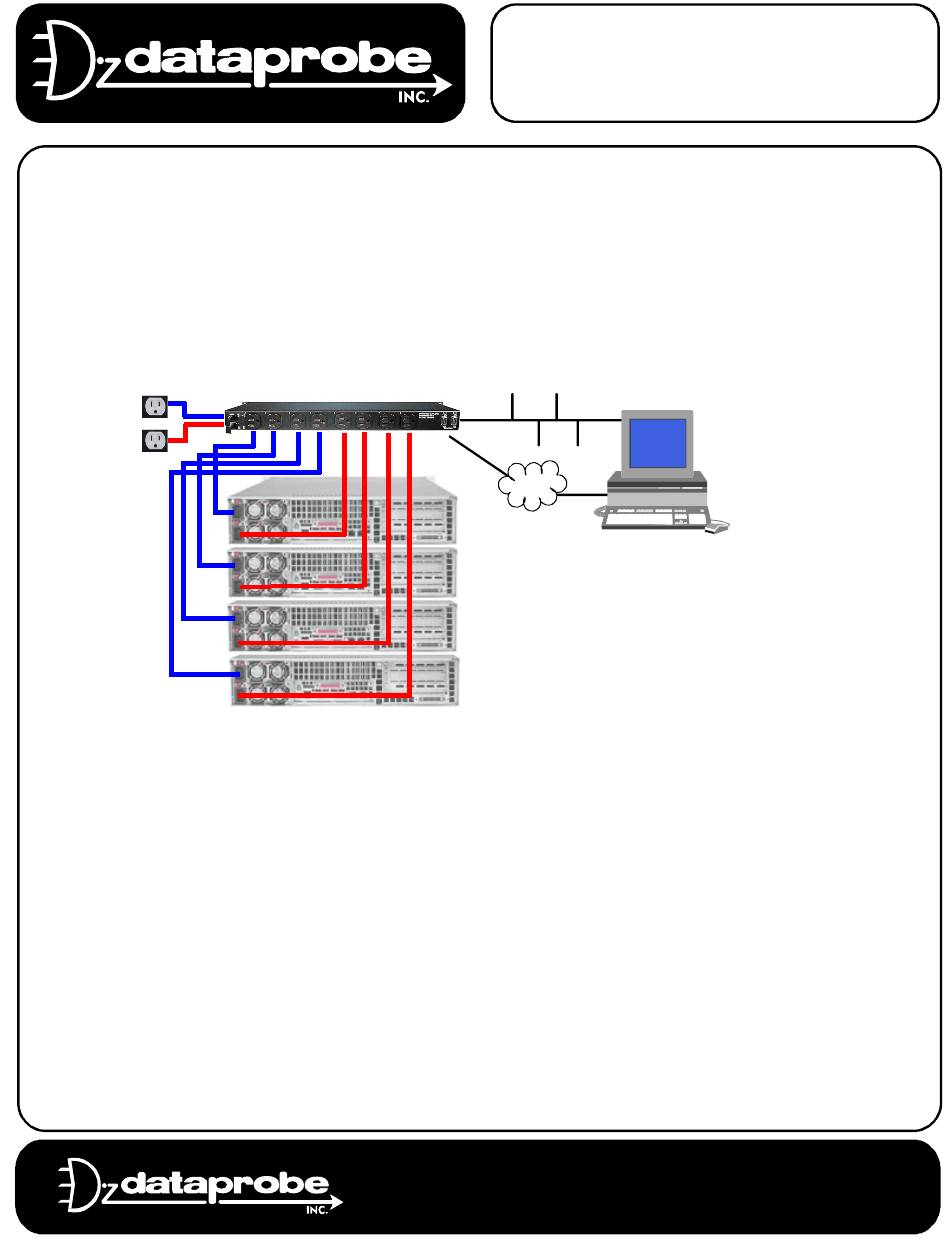

The iP-28xx series are network attached, IP addressed, Web Controlled, multi outlet, remote A/C power switches. All units
have two independent power feeds, each servicing 4 outlets. These can be controlled either as tandem pairs of outlets for
controlling systems with dual redundant power supplies, or to achieve higher current switching by dividing the eight systems
across two power feeds. The following models are covered in this manual.
iP-2820
8 switched outlets, for use on 115 VAC, 20 Amp Service – NEMA N5-20
iP-2815
8 switched outlets, for use on 115 VAC, 15 Amp Service – NEMA N5-15
iP-2810
8 switched outlets, for use on 115/230 VAC, 12 /10 Amp International – IEC 320
"M" suffix designations in the model name indicate models equipped with an internal modem.
Table of Contents
Important Safety Information
Hardware Installation
Configuration
IP Address
Configuration Parameters
Telnet Operation
Web Browser Operation
Direct Messaging Control
Specifications
Tech Support & Warranty
REF: PWR\IP28xx_V040421E.DOC
Dial-up
2
3
5
8
9
10
11
12
Technical Support Hotline: (201) 967-8788
11 Park Place / Paramus, New Jersey 07652
TEL: 201-967-9300
Website: www. dataprobe.com Email: tech@dataprobe.com
Dual Input
Web Controlled Power Switches
In Band and Out-of Band
Web/Telnet Control
FAX: 201-967-9090
Advertisement
Table of Contents
Related Manuals for Dataprobe IP-28 Series
Summary of Contents for Dataprobe IP-28 Series
- Page 1 IP Address Configuration Parameters Telnet Operation Web Browser Operation Direct Messaging Control Specifications Tech Support & Warranty REF: PWR\IP28xx_V040421E.DOC Technical Support Hotline: (201) 967-8788 11 Park Place / Paramus, New Jersey 07652 TEL: 201-967-9300 FAX: 201-967-9090 Website: www. dataprobe.com Email: tech@dataprobe.com...
-
Page 2: Important Safety Instructions
iP-28xx Page 2 Important Safety Instructions When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings in the manual and marked on the product. 3. -
Page 3: Hardware Installation
iP-28xx Page 3 Hardware Installation Important Note: Make all communications connection prior to applying power. To change communications cables, remove power or power cycle the unit after connections. Model iP-2815 2 NEMA 5-15 Linecords 8 NEMA 515 Outlets J1-Serial J2-Network Model iP-2815-M 2 NEMA 5-15 Linecords 8 NEMA 515 Outlets... -
Page 4: Serial Port Pinout
iP-28xx Page 4 Serial Port pinout: Pin No Description Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request to Send Clear to Send Ring Indicator Modem Connection * for models with internal modem * For units with internal modems, an D9 to RJ11 adaptor is used. -
Page 5: Setting The Ip Address Using Arp
If the ping command returns “host not responding” 4 times then the address has not been programmed properly, or the IP Address is incorrect. In either case redo step 2. If the problem persists contact the Dataprobe Tech Support Hot Line. -
Page 6: Menu System
iP-28xx Page 6 2) Setting Parameters using Telnet or Serial Port Menus Additional configuration parameters need to be set using Telnet or the serial/modem menu system. To connect to the switch using telnet, run your telnet client program (provided with your operating system) and connect to the IP address as set in step one above. -
Page 7: Circuit Names
Select 4 from the Setup Menu. The password can be up to 8 characters and is case sensitive. Enter the current password, followed by the new password, then confirm the new password. Please remember your password. If you forget your password, contact Dataprobe Tech Support 201-967-8788 or tech@dataprobe.com Cycle Time This feature selects the time in seconds for a Cycle command for any of the outlets. -
Page 8: Menu Operation
iP-28xx Page 8 Menu Operation The menu system is the same using Telnet or via the Serial Port or Internal Modem. Access for operation via Telnet, Serial or Modem is the same as access for configuration. xP-2815 Location: Location Name Outlet Status Linked... -
Page 9: Web Browser Operation
iP-28xx Page 9 Web Browser Operation The switch can be accessed by any Web Browser. To access the switch, address your browser to the IP address set in the switch. As shown in the screen right, this browser is connected to switch with address 192.168.1.195. - Page 10 iP-28xx Page 10 Direct Messaging Control IP-815 allows direct computer control using simple ASCII strings. You can use this control technique either through the serial port or via TCP/IP messaging. To access the iP-2815 over the network, open a connection on port 9100.
-
Page 11: Power Connections
iP-28xx Page 11 SPECIFICATIONS Physical 19” wide x 6.25” deep x 1.75” high, EIA Rack Mount -1RU Power Model iP-2820 110 -120VAC 60 Hz, 16A Max Model iP-2815 110 -120VAC 60 Hz, 12A Max Model iP-2810 Switch Selectable ; 110-120VAC 50-60Hz, 12A Max 210-240VAC 50-60 Hz, 10A Max Communications Power Connections... -
Page 12: Warranty
TECHNICAL SUPPORT, RETURNS and WARRANTY Dataprobe Technical Support is available 8:30AM to 5:30PM ET to assist you in the installation and operation of this product. To obtain Technical Support call our Tech Support Hotline at 201-967- 8788, or Email us at tech@dataprobe.com. Please have the following information available when you call: •...
